Wagon or Troopcarrier: The 70 Series Wheelbase Argument Toyota Started in the 90s

Two 1990s Toyotas, same engine, two wheelbases, one question that still splits owners. The KZJ71W and the KZJ78W were the same vehicle in every way that shows up on a spec sheet. Same 1KZ-TE 3.0-litre turbo-diesel, same 130 PS and 289 Nm, same part-time four-wheel drive, same two-speed transfer case. One had three doors and a 2,310 mm wheelbase. The other had five doors, a 2,730 mm wheelbase and eight seats.

Thirty-odd years later, you're still arguing about it here. The numbers are just different. Walk into a Toyota dealership today and it's a 76 Series wagon or a 78 Series Troopcarrier, and it's the same question it always was: how much wheelbase do you actually need, and what are you giving up to get it?

One engine, two very different jobs

The Prado 70 was the lighter-duty branch of the 70 Series family. Toyota split it the way it splits the heavy-duty range: one drivetrain, several bodies, each aimed at a different owner. The three-door was the agile one. A 2,310 mm wheelbase and a turning radius of 5.3 metres made it the variant you wanted on a tight, technical track, where the limit is whether you can get the nose around the tree rather than how much torque you have.

The five-door gave that up on purpose. Another 420 mm between the axles bought a third row, room for eight, and the sort of load space that turns a four-wheel drive into something you can travel in for a fortnight. Neither was the better Prado. They answered different questions, and you picked which question you were asking.

Hold onto that, because Toyota never stopped doing it. The three-door idea is still in production as the short-wheelbase 70 Series, built on the same 2,310 mm the KZJ71W used, sold across the Middle East and South America and never offered here. We covered that one separately in read about the short-wheelbase three-door we never got. What you get here is the two long ones, and the real argument sits between them.

The same split, in the numbers we actually get

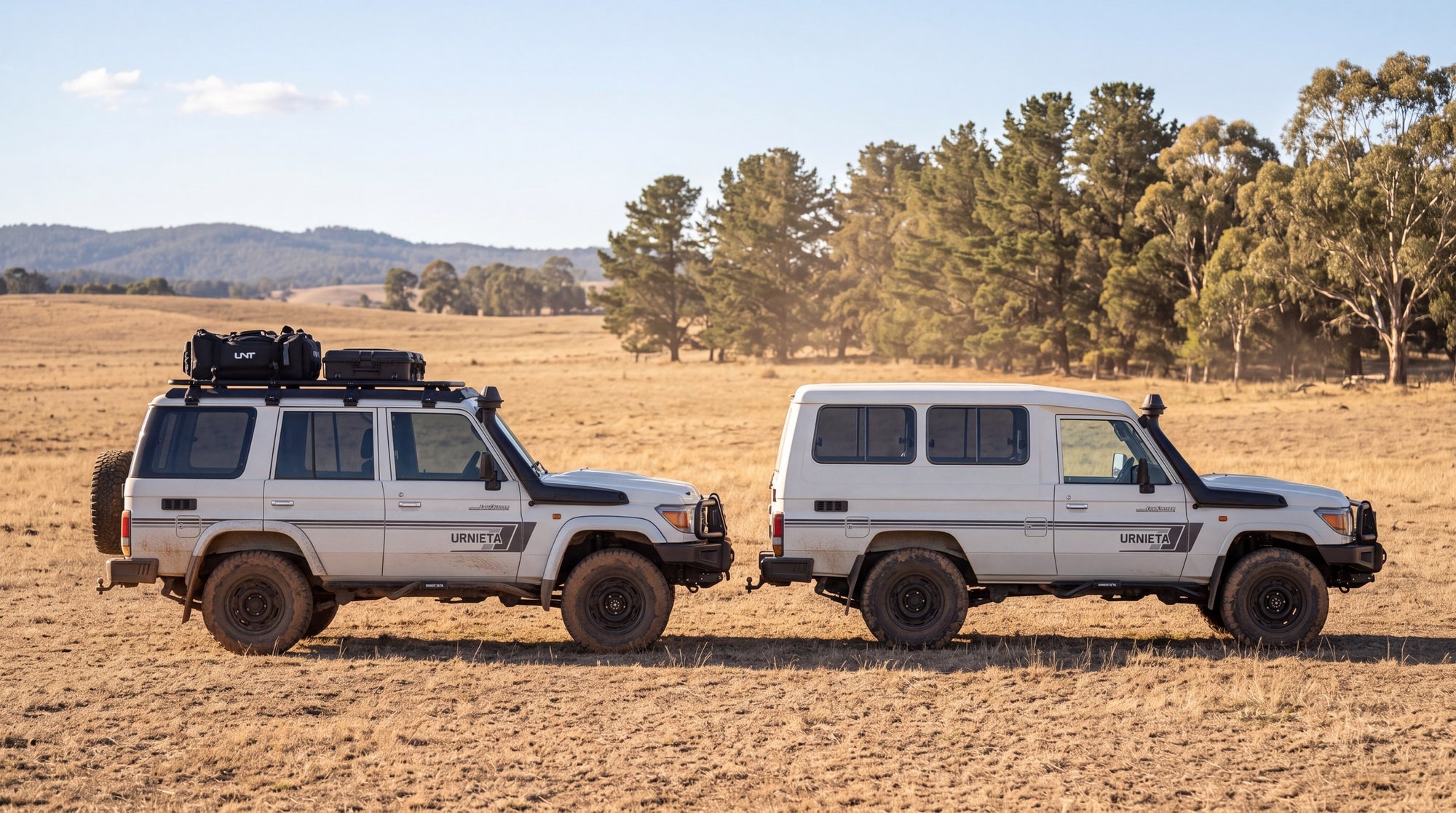

The 76 Series wagon runs a 2,730 mm wheelbase, the same figure the five-door Prado used. The 78 Series Troopcarrier stretches to 2,980 mm. The 79 Series single cab goes further again at 3,180 mm. That's 250 mm between the wagon and the Troopy. It sounds like nothing written down and it's the whole personality of the vehicle in practice.

Those 250 mm are why a Troopy rides the way it does on a corrugated road. A longer wheelbase pitches less over repeating bumps, so the whole vehicle settles into a rhythm instead of hobby-horsing through it. Drive both across the Plenty or the Tanami and the Troopy is the calmer of the two at 80 km/h on dirt, and it isn't the springs doing it.

They're also why it's harder work everywhere else. The wagon turns tighter, parks where the Troopy can't, and doesn't scrape its belly cresting a sharp ridge nearly as readily. Breakover angle comes down to wheelbase and ground clearance, and the Troopy loses that one every time. On a genuinely technical track the wagon is the more capable vehicle, which isn't the answer most people expect.

What each body is really for

The Troopcarrier is a container with a drivetrain under it, and that's a compliment. Barn doors at the back, a flat floor, no fixed rear seating to work around and a roof long enough to carry a rack that means something. That's why the Troopy became the default base for pop-top conversions and remote-area fleets, and why it holds its money the way it does. If you're building a vehicle to live out of, the 78 hands you a blank rectangle and gets out of the way.

The 76 wagon has to work on Tuesday morning as well. Five seats, a tailgate, a footprint that fits a normal garage and a cabin the family will get into without complaint. It carries the same chassis, the same driveline and the same repairability argument as its longer sibling, in a package that does the school run without turning it into an event. For most owners that's the honest answer, and there's no shame in it.

The build consequences are bigger than the buying ones

This is the part that gets skipped. The two bodies don't just carry different amounts of gear, they want different interiors, and your money goes to different places inside them.

A Troopy build is a long-haul build. You're going to live in it, so the priorities are storage that survives corrugations, a roof platform that carries real weight, seating that doesn't punish you at hour six, and audio that works with a load of gear behind you rather than a sealed passenger cabin. The cabin is spartan by design, which is exactly why a dashboard, a wheel and a screen make such a visible difference in one.

A 76 build is a dual-purpose build. It has to be pleasant on the commute and capable on the trip, so it leans harder on cabin comfort, on a head unit that handles navigation and phone duties without fuss, and on the small interior pieces you touch every day. The same parts fit both, but the order you buy them in isn't the same, and the sequencing is where people waste money. Our follow the 76 Series wagon touring build order, and the see what the 78 was engineered to do before anyone started modifying it.

One practical note that applies to both from MY26: the AdBlue system changes the tank arrangement on the four-cylinder automatic. That matters more to a Troopy owner planning long remote legs than to a wagon owner doing weekends. Find out how AdBlue works on the 70 Series.

So which one

Here's the position, and it'll annoy half of you. For most buyers the 76 wagon is the smarter vehicle. It's easier to live with, easier to place on a tight track, cheaper to fit into an ordinary life, and it gives up almost nothing a weekend tourer will ever notice. The Troopy tax is real, and plenty of Troopies spend their lives doing wagon work while the owner pays for 250 mm they never use.

If you're actually going, the 78 is the better vehicle and it isn't close. You can pack a wagon for a fortnight. You can build a Troopcarrier to disappear for three months, and every one of those millimetres between the axles is doing something on the fifth day of a corrugated road. The question isn't which one you want. It's whether the trip you keep describing is a trip you're going to take.

KZJ71W and KZJ78W owners worked that out in 1993. Nothing about the maths has changed, only the numbers.
