Early steel dash 70 Series with the narrow radio slot. The MK4 does not fit this dash.
1 / 1
PVS Automotive

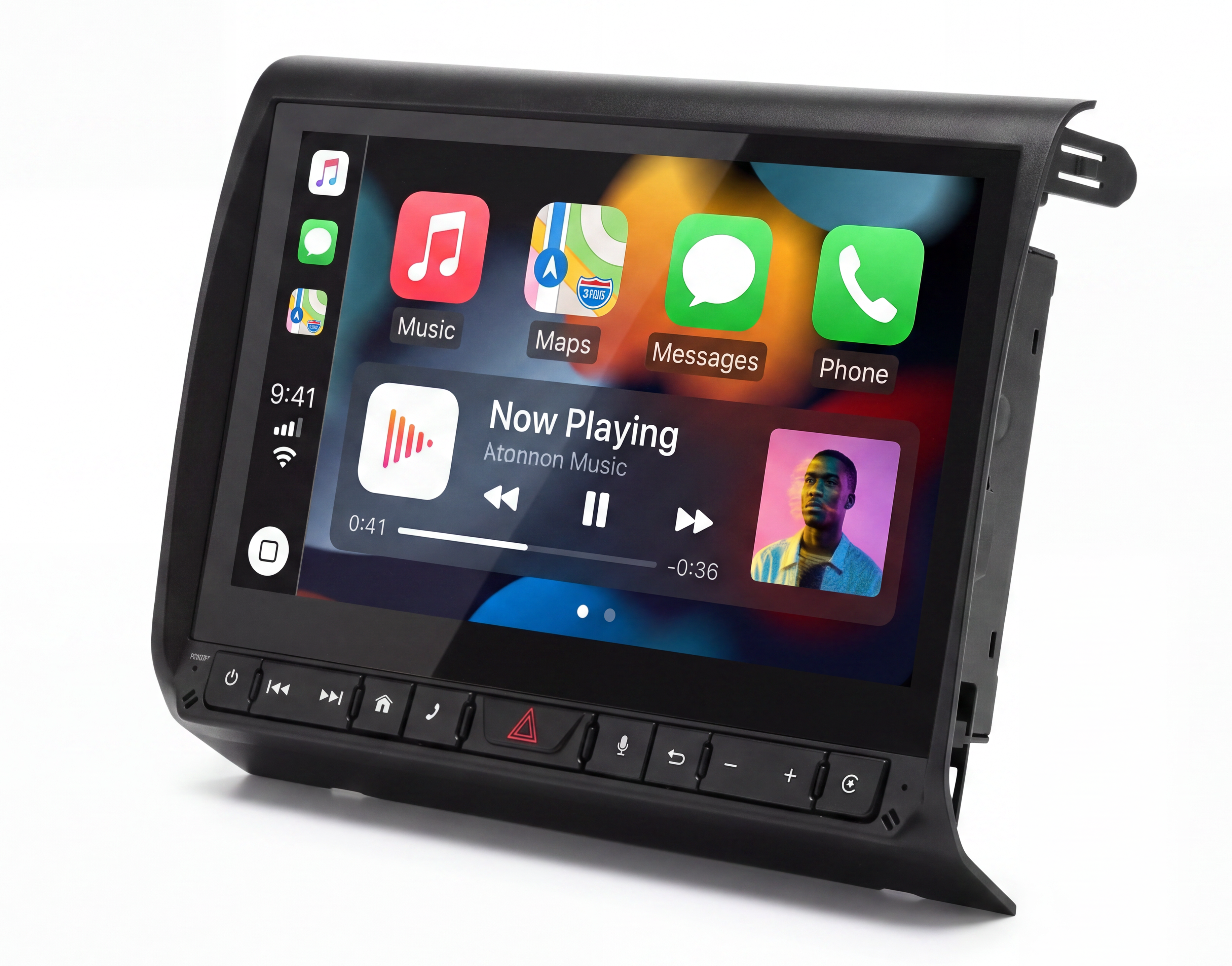

9" MK4 Multimedia Headunit for Toyota LandCruiser 70 Series (2008-2026)
A purpose-built 9" headunit designed specifically for the Toyota 70 Series, with fast performance, seamless phone integration and support for touring, audio and everyday apps.
February/March 2026 run
Sold out
Fully allocated. Missed this run? April 2026 pre-orders are open below.
April 2026 run
46% allocated Updated 31/03/2026
You are pre-ordering the April production run. Estimated dispatch from the end of April 2026.
$1,899.00
Price will increase to $2099 from 1st April due to global component cost increases.
APRIL 2026 — PRE-ORDERS OPEN
The MK4 is engineered to deliver fast, stable everyday performance with smooth app switching, reliable phone integration and the ability to run navigation, music and touring apps directly on the unit.
Vehicle Compatibility
Designed for the 70 Series LandCruiser (2008+) with the standard 200mm radio aperture.
Suits This Dash
2008 to 2023 70 Series dash. The MK4 9" drops into the factory radio position seamlessly.
Suits This Dash
2023+ Facelift 70 Series dash Automatic and Manual Models. Fits the updated interior for a modern factory look.
Compatibility Notes
Clear answers on steering integration, reverse cameras and installation before you purchase.
Steering
Factory steering wheel controls
The MK4 works with factory steering wheel controls on LC70 where they are already fitted. A wireless control module is not required when factory controls are present.
Steering
Aftermarket & custom wheels
Aftermarket or custom steering wheels may require additional setup. We cannot guarantee non-PVS aftermarket wheels. PVS steering wheel upgrade kits are the recommended, supported path; the wireless control module is included with those kits, not supplied with the MK4 headunit on its own.

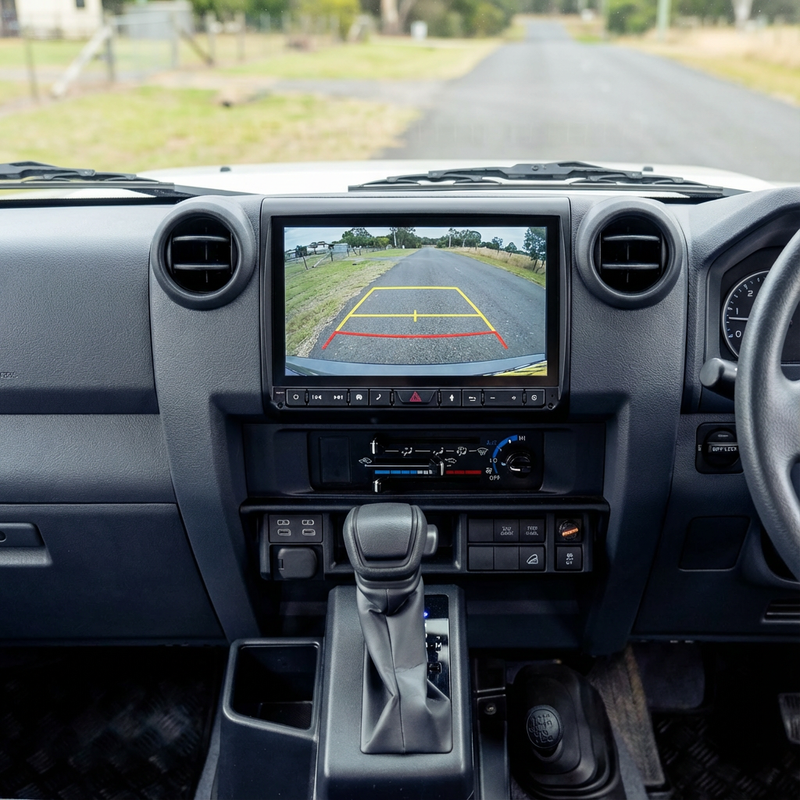

Reverse camera
Reverse camera setups
Factory reverse cameras on 2023+ facelift LC76 are compatible. The MK4 also works with AutoChimp 28-pin camera systems. Some dealer-fitted cameras may need a 4-pin to 28-pin interface harness. Behaviour is not the same across every LC70 variant. Share your year and camera details if you are unsure.
Installation
Plug-and-play scope
Designed to be plug and play, though some vehicles with previous modifications or non-factory accessories may require additional setup.
Fascia Upgrade
More Than Just a Headunit
The MK4 replaces the entire factory radio and fascia, including the original Toyota headunit, clock and hazard button. The result is a clean, integrated OEM-style finish that modernises the 70 Series dash.
Key Features
High performance hardware, visually explained.
Performance

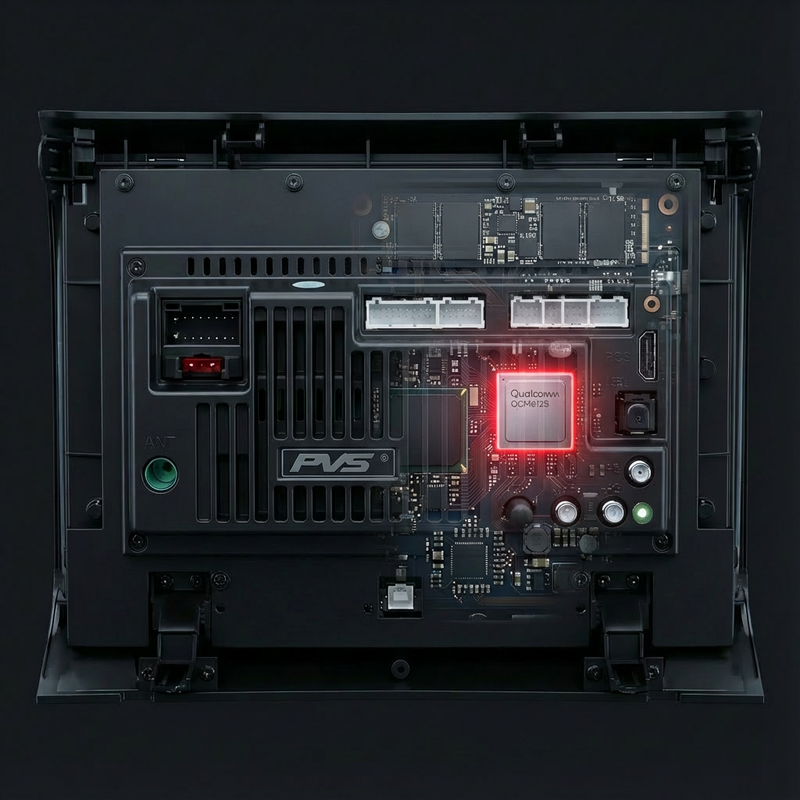

Snapdragon Octa-Core
Qualcomm QCM6125 delivers instant response for maps, music and multitasking at 60Hz.
Memory
8GB RAM + 256GB Storage
Run heavy apps like Spotify and Newtracs simultaneously with room for massive offline maps.
Control
Physical Button Row
Dedicated Home, Back, Volume and Media controls designed for corrugations and gloves.
Display
9" HD 1280x720
High brightness IPS panel with smooth 60Hz refresh for maps, menus and split-screen apps.
Integration

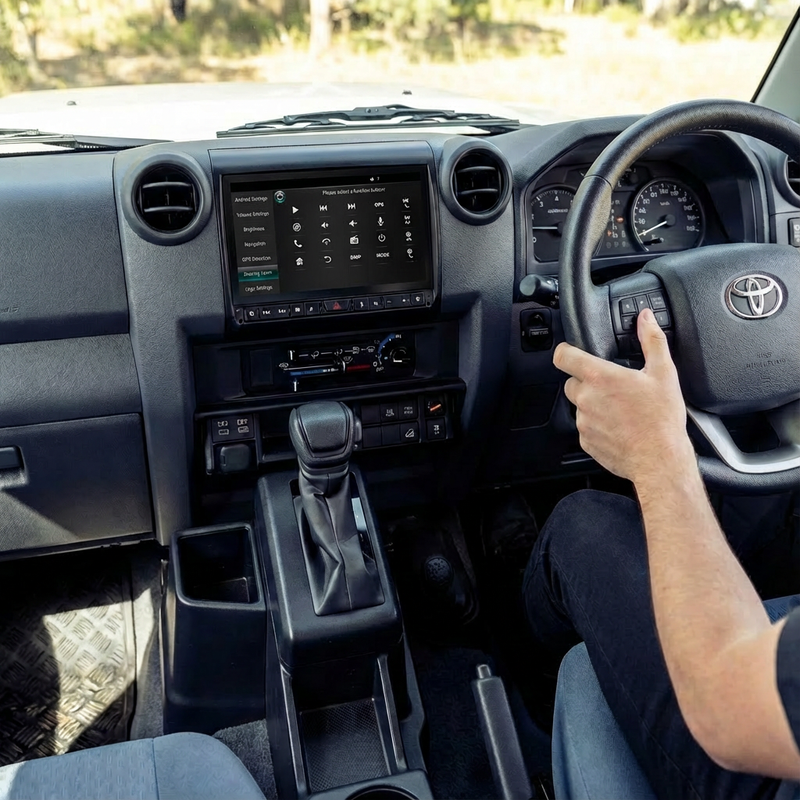

Steering Wheel Controls
Supports factory LC70 steering wheel controls when fitted, with no separate wireless module needed in that case. Aftermarket wheels may need extra setup; PVS steering wheel kits are the supported route.
Cameras
Reverse + 3-Camera Support
Run reverse, front and trailer cameras with fast switching and clean integration.
Connectivity

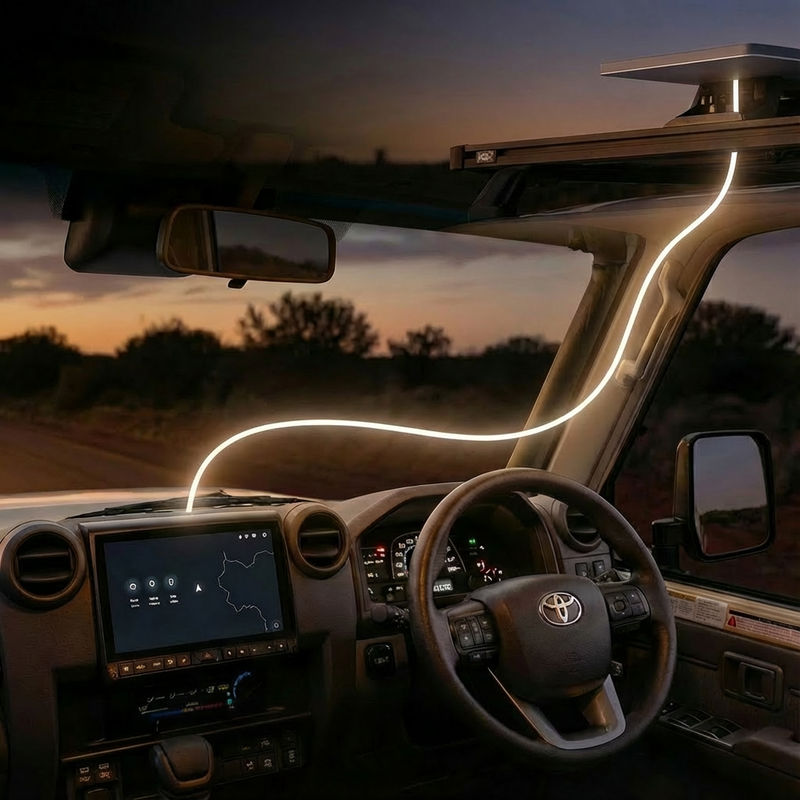

Starlink Ready
Connect the MK4 to Starlink or any WiFi network for streaming, updates and downloads. Starlink hardware is not included, it connects via WiFi like any router.
Apps & Connectivity
Your digital ecosystem, visualised.
Phone Integration

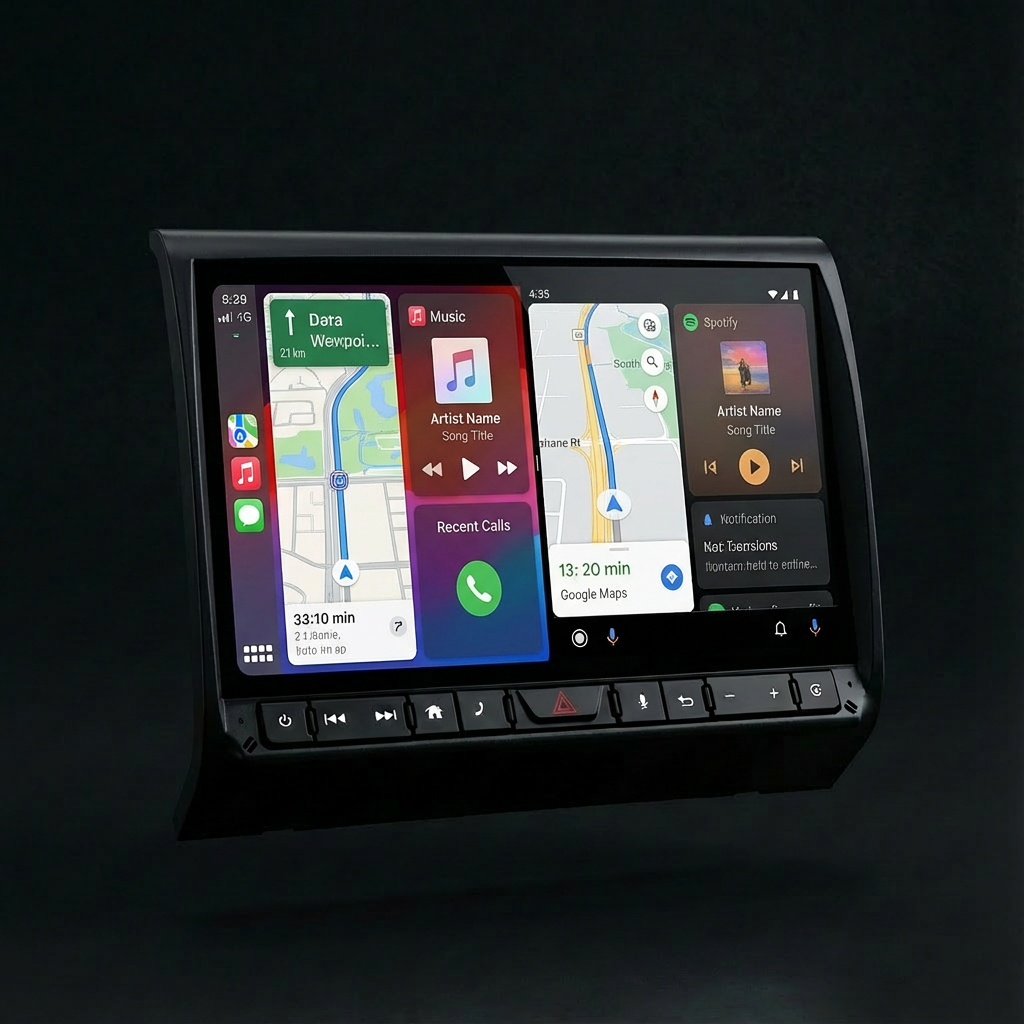

Wireless CarPlay & Android Auto
Apple Maps, Google Maps, Waze, music and calls without plugging your phone in.
Connectivity
4G SIM Card Slot
Add a SIM for always-on data. Stream, update apps and run maps without tethering your phone.
Touring

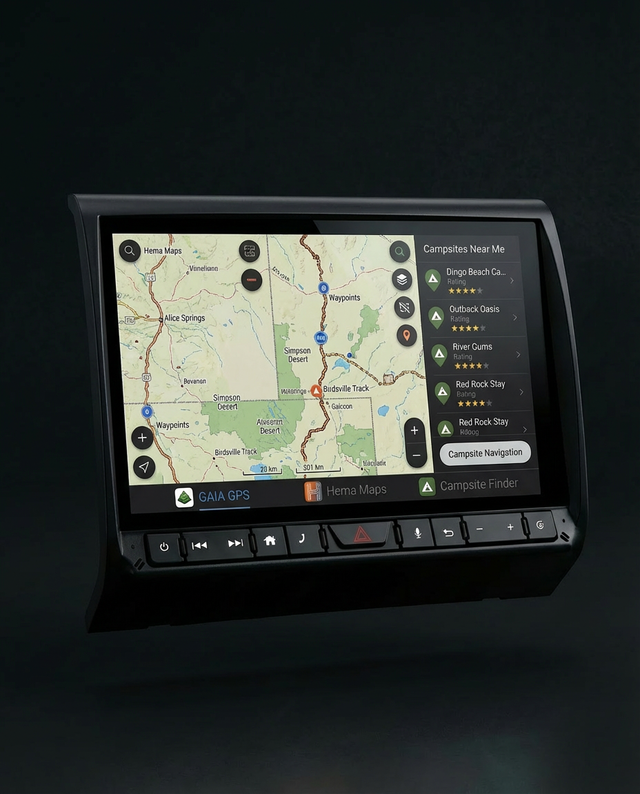

Maps & Off-Road Apps
Newtracs, GAIA and WikiCamps on a large high-resolution landscape screen.
Connectivity
Starlink-Ready Wi-Fi
Connect the MK4 directly to Starlink (or any Wi-Fi network) for updates, downloads and streaming, no phone hotspot required.
Android OS
Google Play Store
Download apps directly to the unit. No phone required. Updates via Wi-Fi.
Outputs
HDMI Out + SPDIF Digital Out
Run an external screen or feed a clean digital audio signal into your sound setup, while the headunit's Dolby DTS processing lifts everyday playback quality.
Entertainment
Live Sport On The Road
Watch Kayo Sports while parked, touring or at camp using Wi-Fi or 4G data.
Explore By Use
See how the MK4 adapts to your lifestyle.
Hi-Res Audio
With 256GB storage, you can store your entire FLAC library directly on the unit, with Dolby DTS processing on board for richer, more cinematic sound quality.
Offline Touring
Download massive offline map areas to the internal storage for use without signal.
Campsites & Trip Planning
Find campsites, reviews and facilities while you are already in the car on the way.

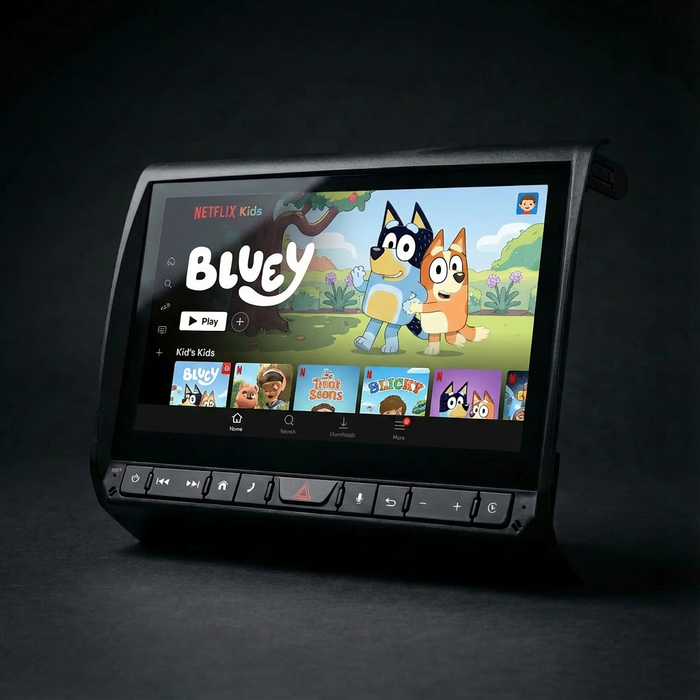

Family & Kids Entertainment
Keep kids or passengers amused while parked up or waiting, without handing over your phone.

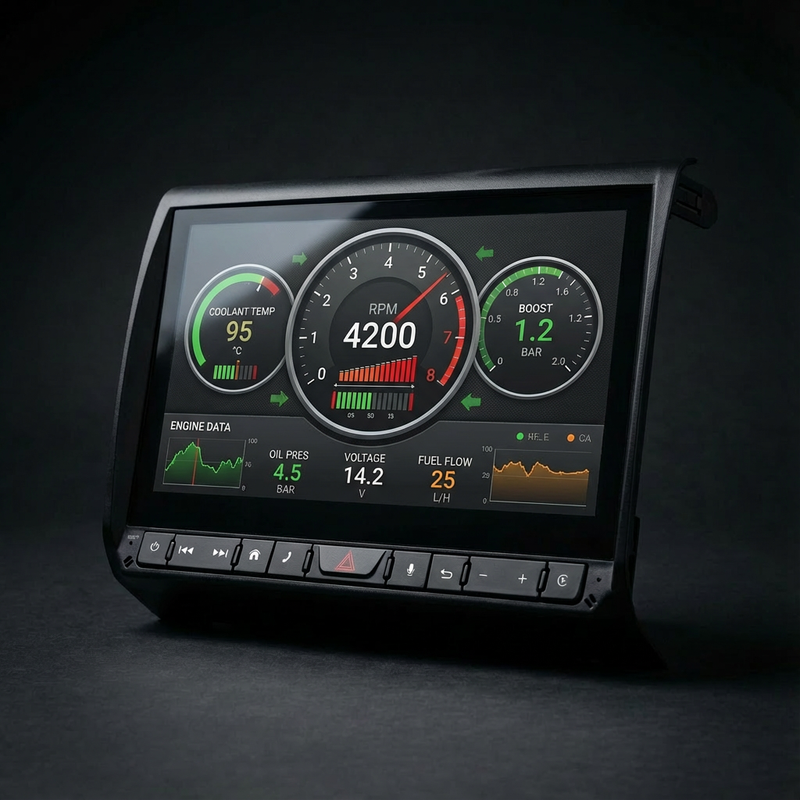

Engine Data & Gauges
Run Torque Pro or OBD apps with the fast Snapdragon processor for real-time gauge updates.

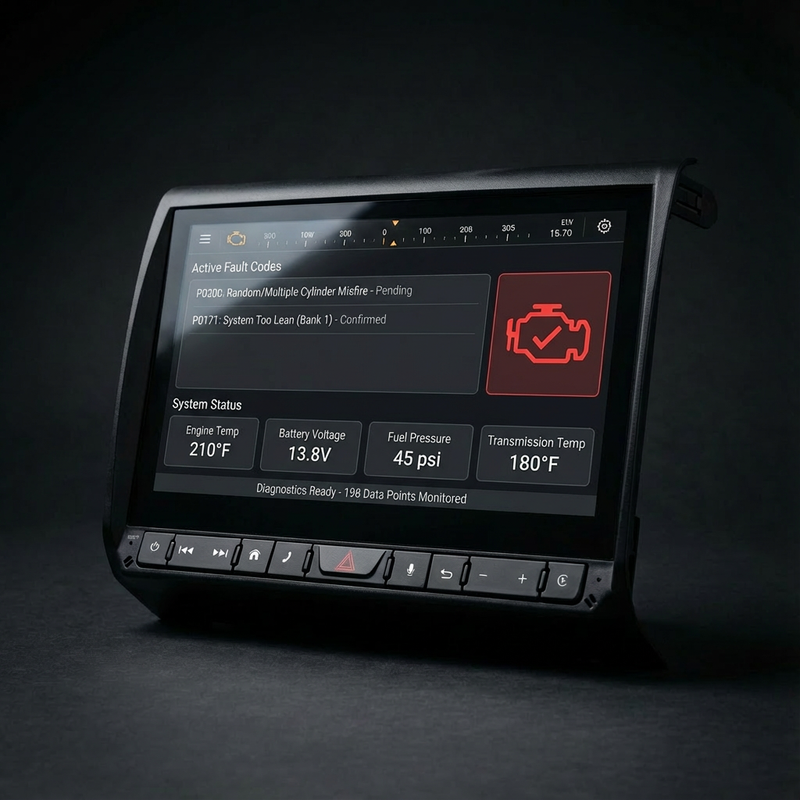

Diagnostics & Fault Codes
Quickly read and clear basic fault codes when a warning pops up on the dash.
Work On The Road
Manage emails, calendar and messages in the work ute without dragging out the laptop at every stop.
Tradie & Job Management
See job details, addresses and photos on the big screen instead of squinting at a cracked phone.

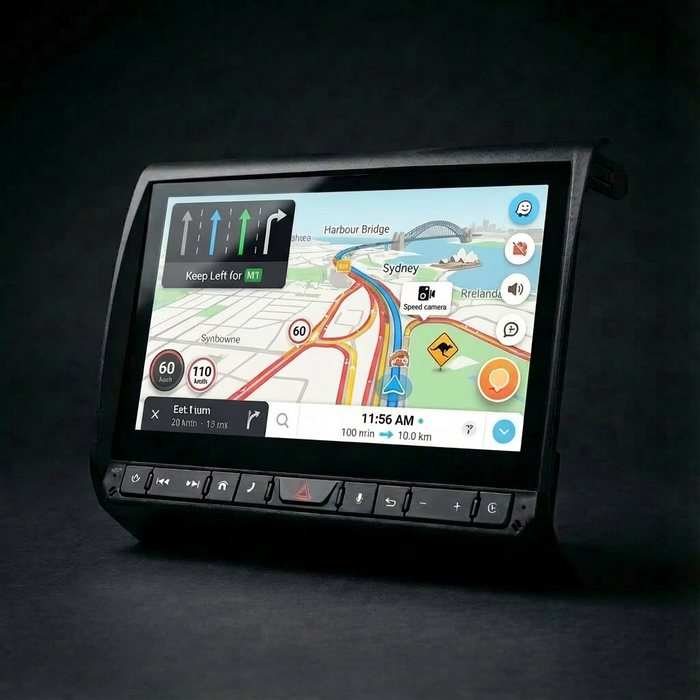

Daily Commute & City Driving
Make the 70 feel more like a modern daily with decent maps and audio, including Dolby DTS for stronger in-cabin sound quality, without losing the character.
Photo & Content Capture
Review footage from dash cams or action cameras on a decent-sized screen at camp or on the side of the track.
Off-Grid & Touring Setups
Monitor power systems, fridges or other hardware that has companion apps, all from the driver's seat.
Future Apps & Ideas
Because it runs Android, the MK4 can grow with new apps and accessories instead of feeling dated in a few years.
On-Vehicle Perspective
The 9" Landscape form factor offers a modern wide-screen experience while retaining factory ergonomics.
Modern Landscape Layout
The 9-inch wide screen is the perfect balance. It's large enough for split-screen apps (like Maps + Music) but doesn't dominate the entire dashboard like larger portrait units can.
Built For Corrugations
Solid state storage, no moving parts, and secure mounting points ensure the MK4 handles the punishment of Australian outback tracks.
Gallery
Studio and on-vehicle photography of the PVS 9" MK4 headunit.
PVS Headunit Evolution
Each generation of our headunits has been refined based on real-world use, customer feedback and ongoing improvements. Here’s how we’ve evolved to MK4.
| Generation | Year | What Changed |
|---|---|---|
| MK1 | 2019 | First Android-based headunit. Introduced touchscreen navigation, music apps and basic smartphone-style functionality. |
| MK2 | 2020 | Faster processor for smoother operation, quicker boot times and more reliable day-to-day use. |
| MK2.5 | 2021 | Improved system stability and reliability based on customer feedback. Fewer crashes and better overall performance. |
| MK3 | 2023 | Major upgrade to the screen and fascia design, delivering a cleaner factory-style look and improved display quality. Added wireless Apple CarPlay support. |
| MK4 | 2025 | Our biggest leap forward yet. Much faster performance, more memory for multitasking, quicker app loading, smoother navigation, and the ability to run multiple apps at once without lag. |
MK4 represents the most refined, responsive and future-ready headunit we’ve built. The MK platform is developed, released and supported by PVS Automotive Pty Ltd across multiple generations.
Why Upgrade to MK4
Coming from MK3, these are the practical improvements you will notice in daily use.
- Faster processor
- Updated software platform
- Better stability
- Improved wireless speed
- Better microphone
- Better Bluetooth
- Better Wi-Fi connectivity
- Improved boot time
MK4 Upgrade Program
A clear upgrade path for existing PVS headunit owners.
Trade-In Credit
MK3 Headunit
Receive $350 trade-in credit when upgrading from a PVS MK3 headunit to the MK4.
MK3 units do not need to be working and may have cosmetic damage such as cracked screens. Returned MK3 units are refurbished after return.
Trade-In Credit
MK1 to MK2.5 Headunits
Receive $150 trade-in credit when upgrading from an earlier PVS headunit.
These units may be non-functional or damaged and are treated as end of life hardware.
How It Works
When MK4 stock is available, purchase the headunit as normal.
During checkout, add an order note stating which PVS headunit you are trading in, for example “MK3 Trade-Inâ€.
Your MK4 ships on the stated dispatch schedule for that allocation.
Send your old unit back to us within 14 days. Trade-in credit is applied after return.
Trade-in applies to PVS headunits only. One trade-in per order. Units may be non-functional or cosmetically damaged. Upgrade program is limited to 20 trade-ins. Trade-in credit applies when you purchase an MK4 headunit (when in stock) and is applied after return.
Technical Specs
A high-level look at the MK4 hardware and connectivity capabilities.
9" HD 1280x720
Snapdragon Octa-Core
8GB RAM
256GB Storage
60Hz Refresh Rate
Physical Buttons
Dolby DTS
Dual Wi-Fi
Starlink Ready
4G SIM Slot
HDMI Out
SPDIF Out
- 9" QLED / IPS WXGA display with 1280x720p native resolution.
- Capacitive multi-touch panel with 60Hz refresh rate.
- Qualcomm Snapdragon QCM6125 Octa-Core processor.
- 8GB LPDDR4 RAM for high-speed multitasking.
- 256GB internal flash storage for maps, media and apps.
- Built-in Class-D amplifier (4x50W max).
- Dolby DTS audio processing with DSP sound tuning.
- Multi-band EQ with detailed tuning control.
- RCA pre-outs (Front, Rear, Subwoofer) for external amplifiers.
- SPDIF optical digital audio output for high-end DSP systems and amplifiers.
- Subwoofer crossover and level control.
- Support for high-resolution audio formats including FLAC and WAV, with Dolby DTS processing for stronger playback quality.
- Wireless Apple CarPlay & Android Auto.
- Dual-band Wi-Fi (2.4GHz / 5GHz) for fast updates and downloads.
- Connect directly to Starlink (or any Wi-Fi network) for internet without relying on your phone hotspot.
- Built-in 4G SIM card slot for always-on mobile data (SIM required).
- HDMI output for connecting an external monitor (when installed).
- Bluetooth 5.0 for clear hands-free calling and music streaming.
- Upgraded hands-free microphone setup with improved hardware and updated call tuning. External microphone included.
- Android 13 (or later) OS with full Google Play Store access.
- Up to 3 camera inputs supported (reverse + additional cameras).
- Automatic reverse switching with trigger wire.
- Supports AHD and CVBS when configured correctly in settings.
- Runs Android OS optimised for the MK4 hardware.
- Supports OTA updates via Wi-Fi.
- 36-month warranty provided directly by PVS Automotive Pty Ltd.
- Ongoing platform support, updates and technical backing from PVS.
In The Box
Every major component supplied with the PVS 9" MK4 headunit package.
9" MK4 Headunit
Qty: 1
The main 9" HD touchscreen unit with integrated physical buttons.
Fascia Panel / Mounting Kit
Qty: 1
Complete fascia panel and mounting brackets to install the 9" screen into the 70 Series dash.
Plug & Play Harness
Qty: 1
Toyota-specific power and speaker harness for quick installation.
GPS Antenna
Qty: 1
High-sensitivity external GPS antenna for offline and online navigation.
4G / Wi-Fi Antenna Set
Qty: 1 set
Antennas to ensure strong Wi-Fi and 4G connectivity (where supported).
External Microphone
Qty: 1
Wired microphone for clear voice calls, can be mounted on the A-pillar or steering column.
RCA & SIM Slot Loom
Qty: 1
Connection loom providing RCA audio outs, video ins, and SIM card slot access.
OBD2 Reader
Qty: 1
Bluetooth OBD2 reader for live engine data, gauges and basic diagnostics through supported apps.
USB Cables
Qty: 2
USB extension cables to run to the glovebox or dash for phone connectivity and storage.
Mounting Hardware
Qty: 1 set
Necessary screws and clips for securing the unit and brackets.
Quick Start Guide
Qty: 1
Basic installation and setup instructions to get you started.
FAQ
Yes, if your Toyota 70 Series has the standard 200mm factory radio aperture (2008 onward, where that dash applies).
Important: The MK4 does not suit early steel dash models with the narrow radio slot. Those dashboards are not supported.
If you are unsure which dash you have, send us a photo and we will confirm fitment before you purchase.
The MK4 is supplied as a vehicle-specific kit when the correct option is selected, including the headunit, fascia, harness and supporting hardware.
Designed to be plug and play, though some vehicles with previous modifications or non-factory accessories may require additional setup.
The MK4 works with factory steering wheel controls on LC70 where they are already fitted from the factory.
A wireless control module is not required when those factory controls are present.
The headunit also has dedicated physical buttons for volume, home and media, which helps when you want hard controls on rough roads.
Aftermarket or custom steering wheels may require additional setup. We cannot guarantee compatibility with non-PVS aftermarket steering wheels.
PVS steering wheel upgrade kits are the recommended, supported path when you want integrated controls with confidence. The wireless module is included with those kits; it is not supplied with the MK4 headunit alone.
The MK4 is compatible with factory reverse cameras on 2023+ facelift LC76 in the supported configuration.
It also works with AutoChimp 28-pin camera systems. Some dealer-fitted cameras may require a 4-pin to 28-pin interface harness.
Reverse camera behaviour is not identical across every LC70 variant. If you are unsure, send your build details and we will advise.
Typical gains moving from MK3 to MK4 include:
- Faster processor
- Updated software platform
- Better stability
- Improved wireless speed
- Better microphone
- Better Bluetooth
- Better Wi-Fi connectivity
- Improved boot time
Units ship with current firmware for the production run. Further updates may still be released over time.
Updates can be applied via USB. Customers need to contact PVS support to obtain the correct update files and guidance.
Apps like Torque Pro are not “one-tap†out of the box: they require downloading from the Play Store and your own configuration (including pairing with supported hardware such as an OBD reader where applicable).
Expect to spend a little time setting permissions, layouts and connections to match your vehicle.
Every kit is backed by practical documentation: an installation guide is included, along with QR code and manual material in the package.
A video guide is available, and email support is available if you need help during fitment.
Yes. The MK4 supports wireless Apple CarPlay and wireless Android Auto on compatible phones, for day-to-day driving and touring without a cable.
Yes. The MK4 runs Android with Google Play Store access, so apps install and run on the headunit.
Touring favourites such as Newtracs, GAIA and WikiCamps are commonly used this way. Specialist tools still need you to install and configure them; see the Torque Pro note above.
With Snapdragon Octa-Core, 8GB RAM and 256GB storage, the platform is built for responsive multitasking.
You can connect via Wi-Fi (including Starlink and routers), the built-in 4G SIM slot (SIM and plan required), or a phone hotspot when needed.
Many navigation and touring apps support offline map downloads; the large internal storage is suited to big map datasets for remote travel.
Supported streaming apps such as Kayo Sports and YouTube can be installed and used when connected to Wi-Fi or 4G. Use video when parked, at camp or for passenger viewing, and always follow local road rules.
The MK4 also supports split-screen style multitasking (for example maps alongside music) where the apps allow it.
The MK4 supports up to three camera inputs (for example reverse, front and an auxiliary feed) with automatic reverse switching when wired correctly.
AHD and CVBS sources are supported when selected properly in settings. Factory reverse camera compatibility varies by vehicle and year; see the reverse camera FAQ above.
Yes. The MK4 includes a built-in Class-D amplifier, Dolby DTS audio processing and DSP tuning for a clear step up from the factory headunit in sound quality, and it works well with many upgraded speaker and amplifier setups.
RCA pre-outs and SPDIF digital output are included for feeding external amplifiers or DSP processors.
Yes. The MK4 uses an upgraded microphone path with hardware and tuning aimed at clearer calls in noisy 70 Series cabins.
We recommend fitting the supplied external microphone close to the driver for best results.
The MK4 is covered by a 36-month warranty from PVS Automotive Pty Ltd, with platform support managed in-house.
Alongside warranty coverage, you have access to email support, documentation and update files through support when they are released.
70 Series Headunit Comparison
Compare MK4 against popular options, without the fluff.
Competitor specs shown are based on publicly available product listings and may vary by configuration, vehicle and installer.
| Feature |
PVS 9" MK4
RRP
$1,899.00
|
Alpine i905i-LC70
RRP $2,899.95
|
Kenwood DMX9724XS
RRP $1,899.00
|
|---|---|---|---|
| Display | 9" Ultra HD 1280×720, wide viewing angles, 60Hz | 9" WXGA 1280×720 | 10.1" 1280×720 |
| Apple CarPlay & Android Auto | Wireless/Wired Apple CarPlay & Wireless/Wired Android Auto | Wireless Apple CarPlay / Wired Android Auto | Wireless Apple CarPlay / Wired Android Auto |
| Platform & Apps | Android OS with Google Play (apps run on unit) | Receiver (phone-based apps) | Receiver (phone-based apps) |
| Performance & Storage | Fast performance, 8GB RAM, 256GB storage | Not specified | Not specified |
| Offline Touring | Offline maps & apps stored on unit | Phone-based navigation | Phone-based navigation |
| 4G SIM / On-board Data | Yes (4G SIM slot) | No SIM slot (uses phone data) | No SIM slot (uses phone data) |
| Direct Wi-Fi Internet (Starlink-ready) | Yes (connects directly via Wi-Fi) | Not applicable (receiver) | Not applicable (receiver) |
| OBD2 Vehicle Data & Diagnostics |
Yes – OBD2 reader included Live engine data & diagnostics run directly on the unit |
No native support (phone apps only) | No native support (phone apps only) |
| Outputs | HDMI Out + SPDIF Digital Out | HDMI In + HDMI Out | Optical Digital Out + HDMI In |
| Camera Inputs | 3 camera inputs | 2 camera connections | 4 camera inputs |
| Audio & Tuning | Class-D amp + Dolby DTS + DSP tuning + SPDIF digital output (50W × 4) | Class-D 50W × 4 + tuning | 13-band EQ + time alignment + LDAC |
| Fitment Style | LC70-specific kit (2008–2025) | LC70-specific (listed 2009–2023) | Floating universal fitment |
| Warranty | 3-year (PVS) | 3-year (dealer installed) | Varies by retailer |
Display
9" Ultra HD 1280×720, wide viewing angles, 60Hz
9" WXGA 1280×720
Apple CarPlay & Android Auto
Wireless/Wired CarPlay & Wireless/Wired Android Auto
Wireless CarPlay / Wired Android Auto
Platform & Apps
Android OS with Google Play
Receiver (phone-based apps)
Performance & Storage
Fast performance, 8GB RAM, 256GB
Not specified
Offline Touring
Offline maps & apps stored on unit
Phone-based navigation
4G SIM / On-board Data
Yes (4G SIM slot)
No SIM slot (uses phone data)
Direct Wi-Fi Internet (Starlink-ready)
Yes (connects directly via Wi-Fi)
Not applicable (receiver)
OBD2 Vehicle Data & Diagnostics
Yes – OBD2 reader included
Live engine data & diagnostics
Live engine data & diagnostics
No native support
Outputs
HDMI Out + SPDIF Digital Out
HDMI In + HDMI Out
Camera Inputs
3 camera inputs
2 camera connections
Audio & Tuning
Class-D amp + Dolby DTS + DSP tuning + SPDIF digital output
Class-D 50W × 4 + tuning
Fitment Style
LC70-specific kit (2008–2025)
LC70-specific (listed 2009–2023)
Warranty
3-year(PVS)
3-year (dealer installed)
MK4 February/March 2026 Allocation — Sold Out
This production run is fully allocated. Existing orders are being built and dispatched on schedule. April 2026 pre-orders are open — estimated dispatch from the end of April.
Manufacturing & dispatch
Building and shipping orders from this allocation. This run is sold out — pre-orders for April 2026 are open in the buy section.
This February/March allocation has sold out. Secure a unit on the April 2026 run below — estimated dispatch from the end of April.
Pre-ordering now reserves build capacity on the April run. Estimated dispatch from the end of April 2026.
Don't miss out again
$1,899.00
The most powerful 9" headunit PVS Automotive has ever built.
Performance
Qualcomm Snapdragon Octa-Core processor with 8GB RAM and 256GB storage.
Display
9" HD display (1280×720) with smooth 60Hz refresh rate.
Included Accessories
AHD reverse camera and Bluetooth OBD2 reader for live engine data and diagnostics.
Suits Toyota LandCruiser 70 Series models with the standard 200mm factory radio aperture.
Compatible models include:
76 Series Wagon (2008-2026)
78 Series Troop Carrier (2008-2026)
79 Series Single Cab (2008-2026)
79 Series Dual Cab (2008-2026)
Includes vehicle-specific plug and play harnessing for a clean installation.
×
