MBQuart
MBQuart 10" DVC Underseat Subwoofer
Overview
MBQuart 10" DVC Underseat Subwoofer.
A 10" dual voice coil reference subwoofer with a built-in Class A/B mono amplifier - the whole bass solution in one underseat enclosure. 800 W peak, variable crossover and bass boost, plus a wired remote for in-cabin tuning.
Key features
Designed for the way you drive.
precision
Integrated Class A/B mono amplifier, 800 W peak
engineered
Variable low-pass crossover 50–150 Hz, 12 dB/octave
performance
0–12 dB bass boost adjustment
reliability
Phase shift 0–180 degrees for system integration
design
RCA and high-level inputs
control

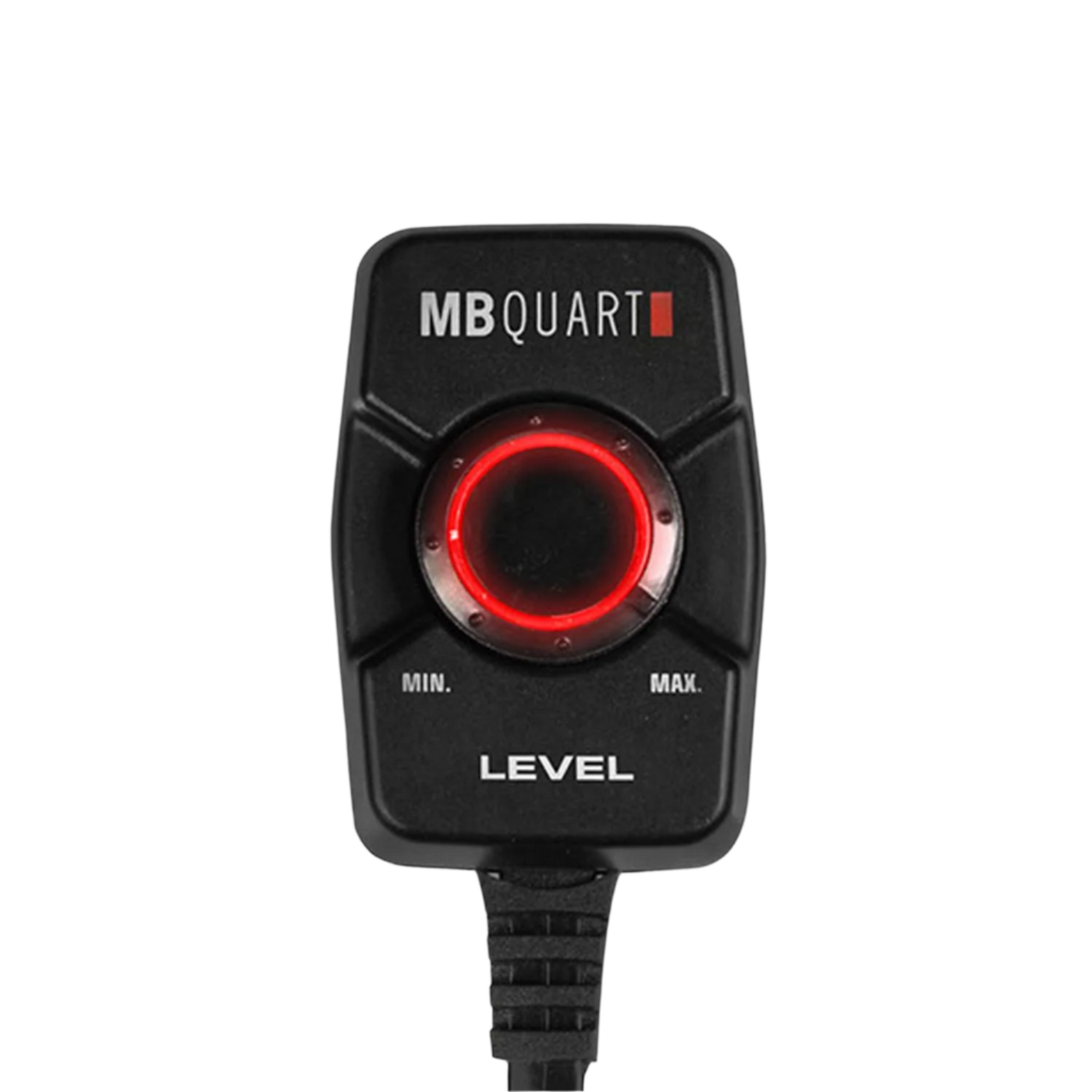

Wired bass remote control included
Gallery
A closer look.
Specifications
The detail.
| Specification | Value |
|---|---|
| Subwoofer Size | 10 inches |
| Configuration | DVC Round |
| Impedance | 4 ohms |
| RMS Power Handling | 150 watts |
| Peak Power Handling | 800 watts |
| Amplifier Class | Class A/B |
| Amplifier Channels | 1 Channel |
| Maximum Amplifier Power | 800 watts |
| Frequency Response | 58 Hz – 20 kHz |
| Crossover Range | 50 Hz – 150 Hz (12 dB/octave) |
| Bass Boost | 0 – 12 dB |
| Phase Shift | 0 – 180 degrees |
| Input Voltage Range | 0.2 – 9 V |
| Fusing | 15 Amp |
| Power Terminals | 8 AWG |
| Input Types | RCA and High-Level |
| Colour | Black |
| Warranty | 2 Years |
Compatibility
Compatible vehicles.
- Designed for underseat installation in cars, utes and 4WDs
