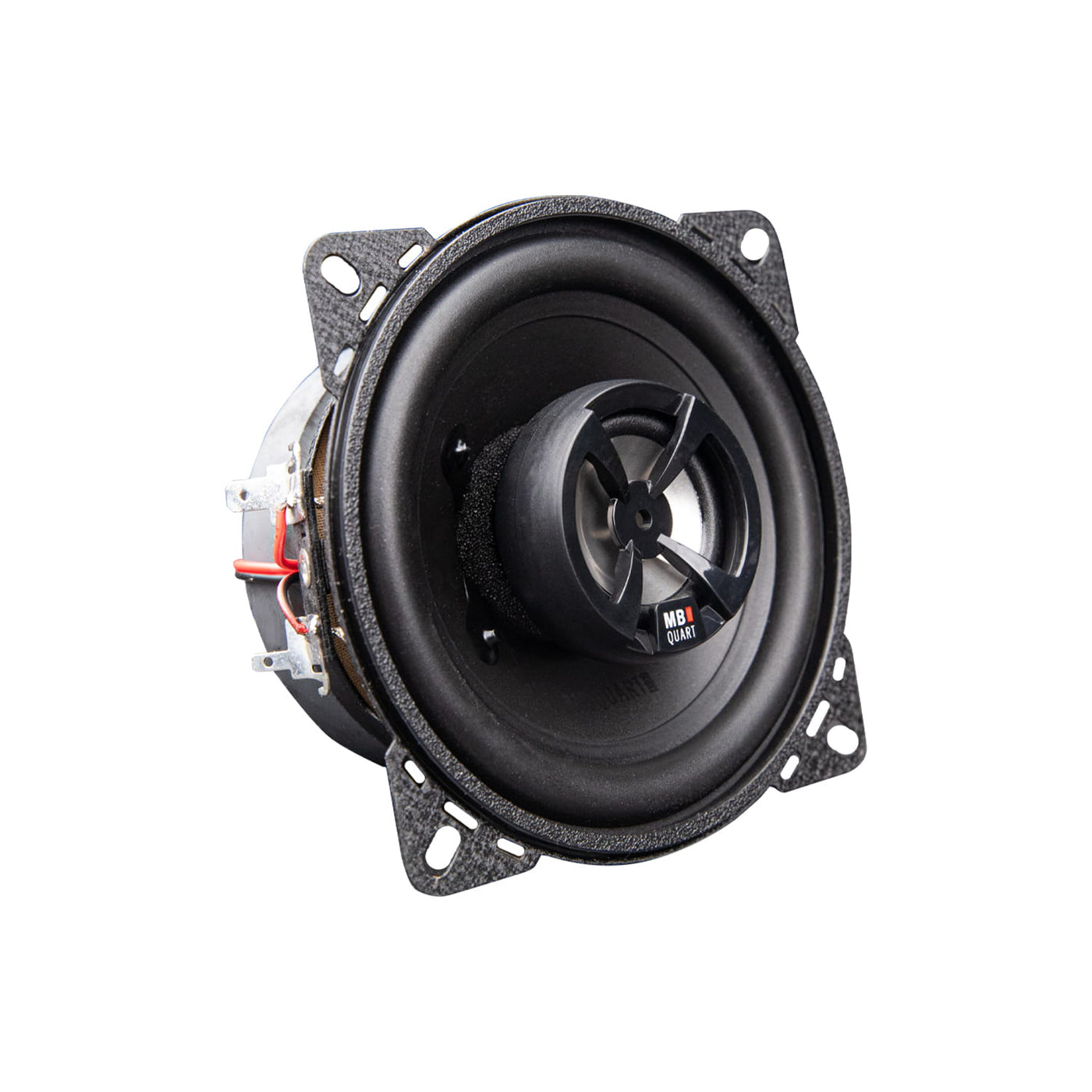

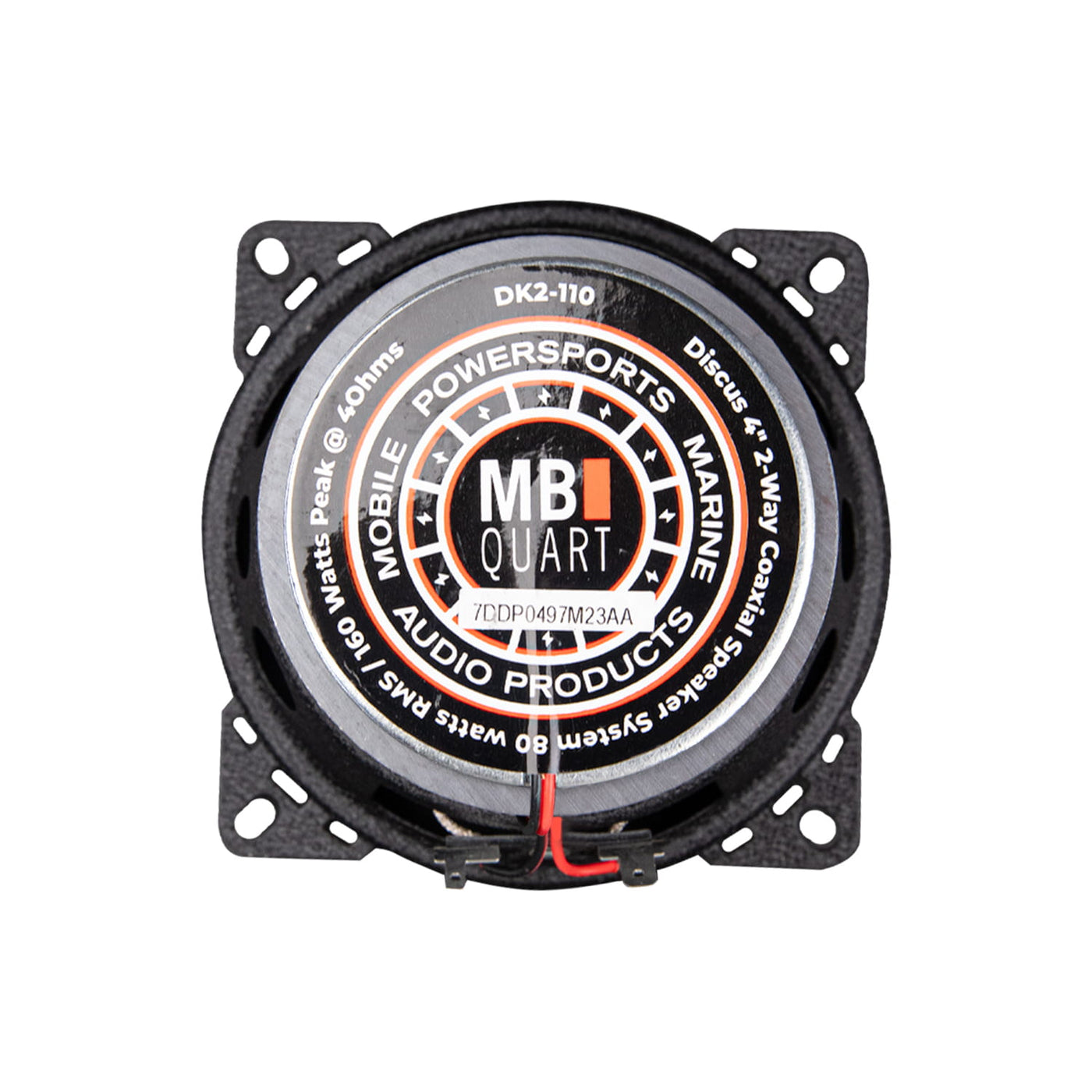

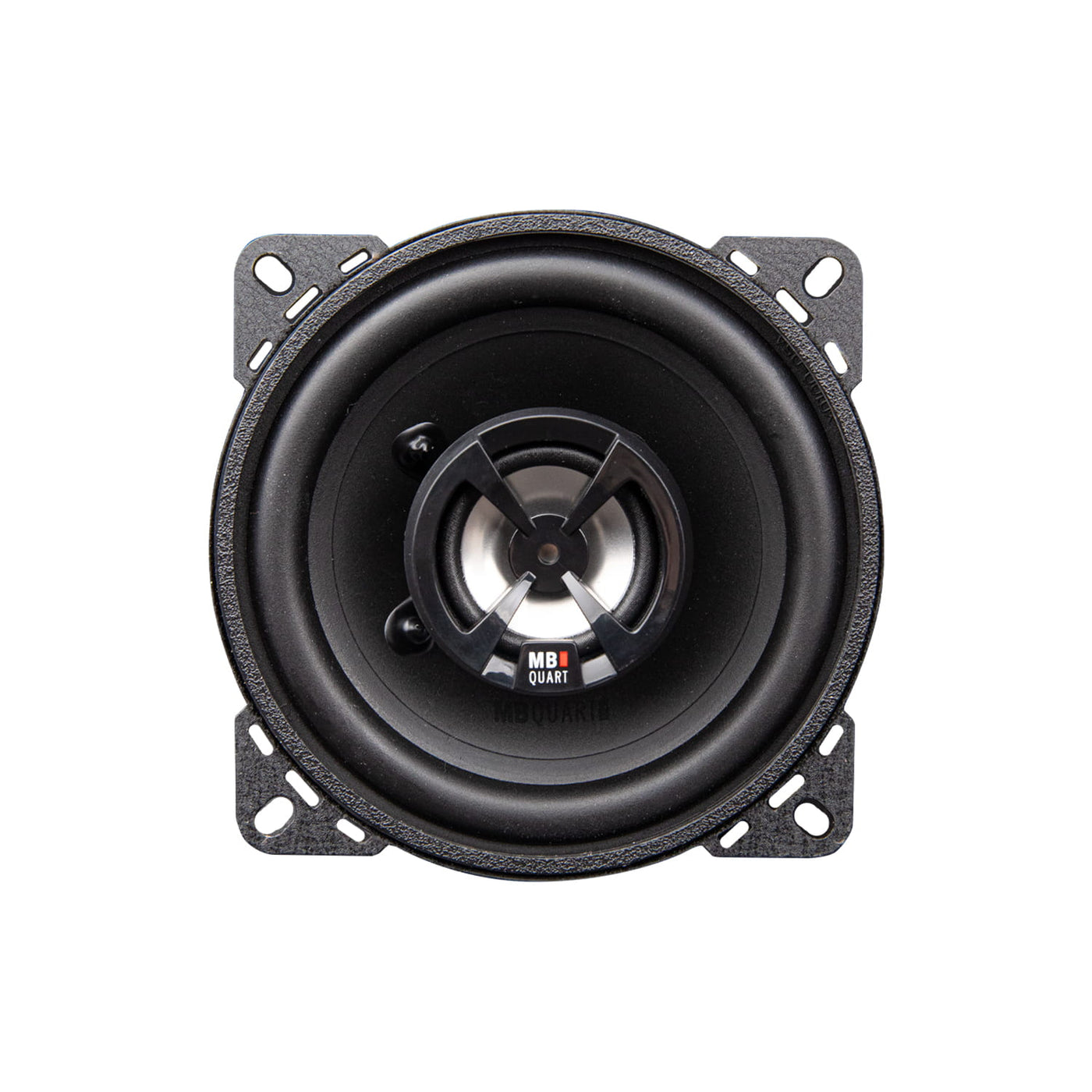

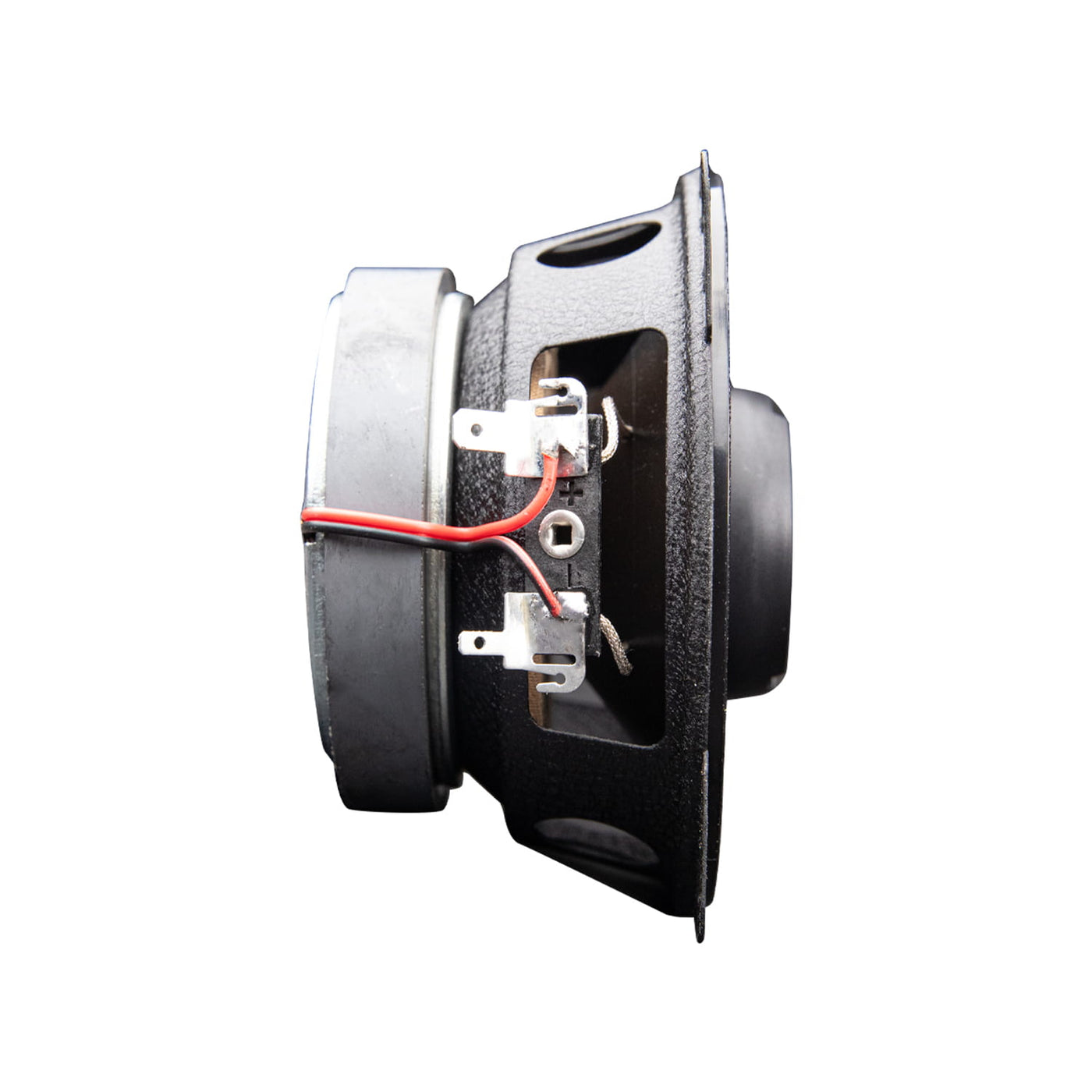

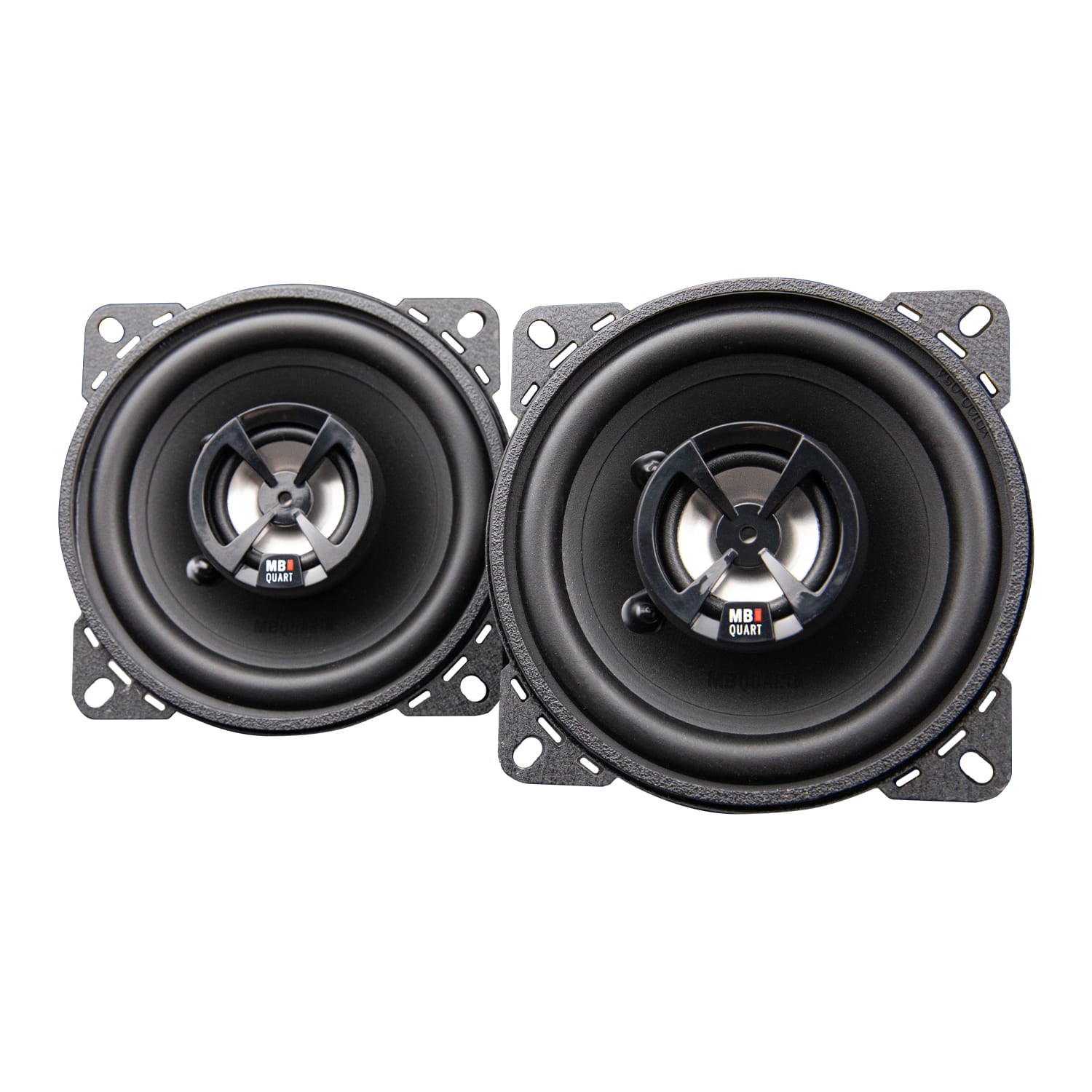

MBQuart 4" Discus Coaxial Speaker Kit DK2-110, compact 2-way upgrade for tight spaces
The MBQuart Discus DK2-110 is a compact 4-inch 2-way coaxial speaker kit engineered for tight installs where factory speakers have long since given up the fight. Aluminium inverted dome tweeters, polypropylene cones and a built-in 6 dB crossover deliver a clean, plug-in upgrade with genuine marine-grade durability.
or 4 interest-free payments of $19.75 with Shop Pay & Afterpay
Item code: MBQ-DK2-110
Australian Owned and Operated.Australian Owned Certified · AO 08314
Built to sound
right.
The MBQuart Discus DK2-110 is a compact 4-inch 2-way coaxial speaker kit engineered for tight installs where factory speakers have long since given up the fight. Aluminium inverted dome tweeters, polypropylene cones and a built-in 6 dB crossover deliver a clean, plug-in upgrade with genuine marine-grade durability.
The DK2-110 packs serious speaker engineering into a 4-inch footprint, making it a natural fit for the secondary door positions, A-pillar pods or overhead panels found in Toyota LandCruiser 70 Series cabins. A lightweight polypropylene cone keeps the midrange responsive across the frequency range, while the aluminium inverted dome tweeter handles the highs with improved long-term reliability over conventional mylar designs. Butyl rubber surrounds bonded with high-temperature adhesive ensure the driver holds together in the heat and vibration of off-road use, and the pure copper voice coil on a Kapton former, paired with an over-coil cooling system, keeps thermal compression in check during extended listening sessions. Heavy-gauge steel frames and a ferrite magnet motor round out a build quality that punches well above the price point.
Three things that matter.
Aluminium Inverted Dome Tweeter
Unlike conventional mylar tweeters, the aluminium inverted dome construction offers greater rigidity and long-term reliability, maintaining consistent high-frequency output even after years of heat cycling and vibration.

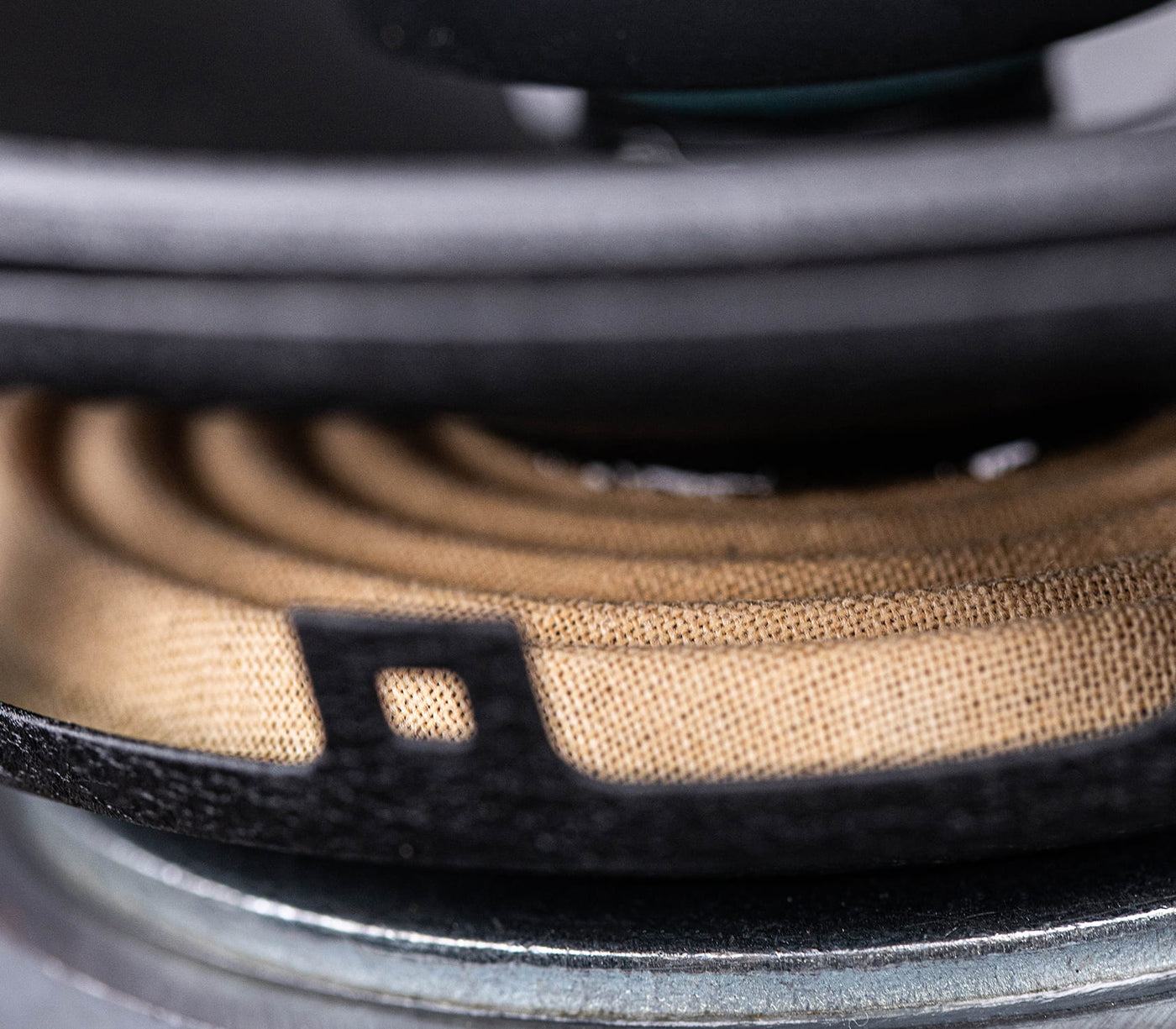

High-Temperature Butyl Rubber Surrounds
Butyl rubber surrounds bonded with high-temperature adhesive resist the extreme cabin temperatures common in Australian conditions, preventing the surround separation that plagues standard foam-surround speakers over time.
Over-Coil Cooling System
An active over-coil cooling system draws heat away from the pure copper voice coil during high-power use, reducing thermal compression and protecting the driver when the system is pushed hard on long drives.
Full specs.
Speaker Size
4 inches
Configuration
2-Way Coaxial
Tweeter
Aluminium inverted dome
RMS Power Handling
40 W
Peak Power Handling
80 W
Impedance
4 Ω
Sensitivity
88 dB
Frequency Response
55 Hz - 19 kHz
Crossover
6 dB internal
Cone Material
Lightweight polypropylene
Surround Material
Butyl rubber
Voice Coil
Pure copper on Kapton former
Magnet
Ferrite
Frame
Heavy-gauge steel
Connectors
Spade connectors with tinsel leads
Mounting Cut-Out
3.69 inches
Outside Diameter
4.0 inches
Mounting Depth
2 inches
Colour
Black
Warranty
2 Years
What's included.
Hear the
difference.
Add it to your build, or browse the full MBQuart range to match speakers, components, subs and amplifiers.
