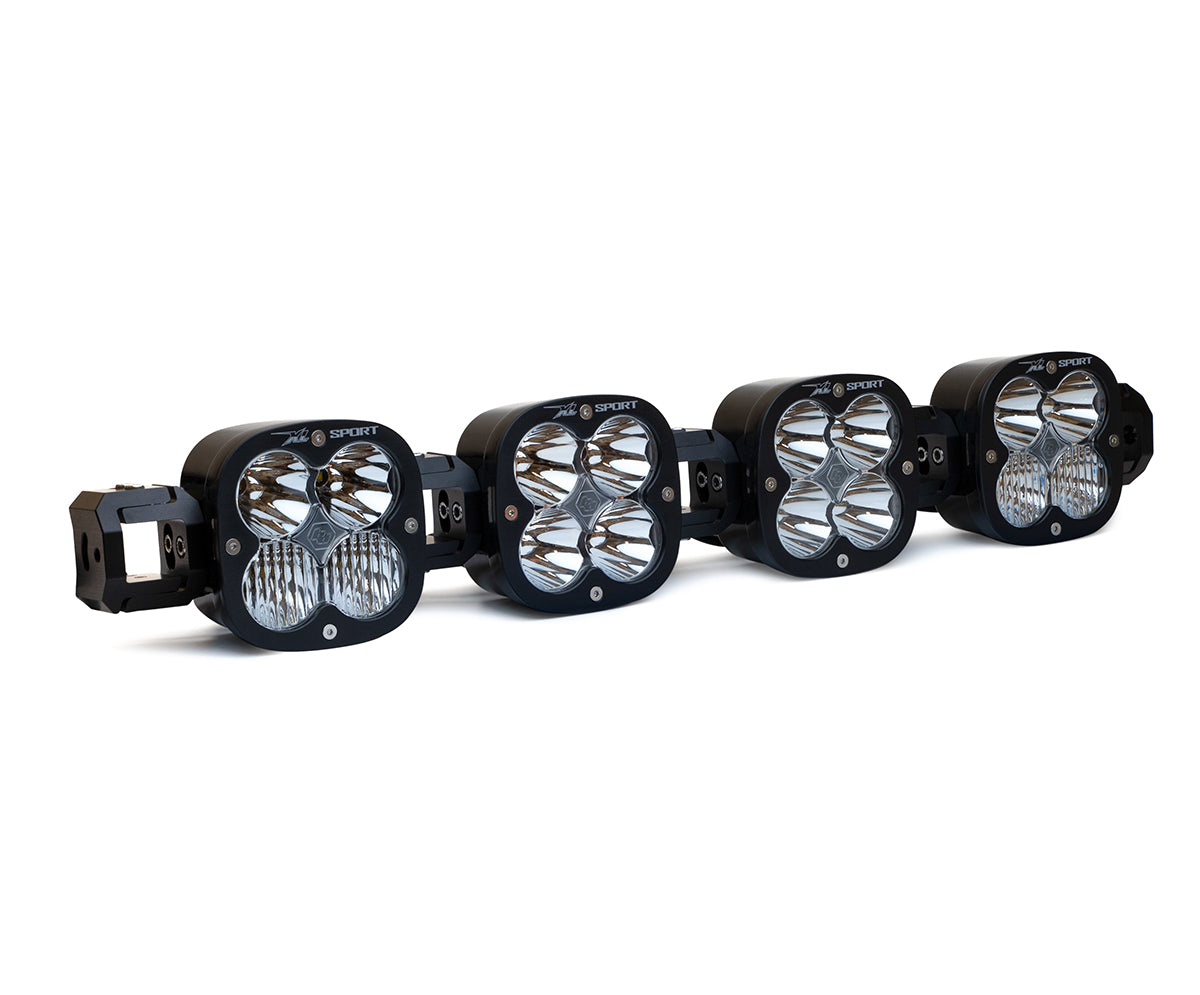

XL Linkable LED Light Bar
4XL Clear. Fully adjustable, fully customisable.
The Baja Designs XL Linkable LED Light Bar is a completely customisable auxiliary lighting system built around the proven XL Sport shallow moto housing. Configure it straight or arced, pitched or level, and expand it whenever you're ready.
Item code: 740002
FREE delivery, Australia-wide
Shopping for work? You could claim up to 30% for tax purposes on your business order. Terms and conditions apply. Please check with your accountant.
One system, endless configurations.
Most light bars lock you into a fixed position and a fixed layout. The Baja Designs XL Linkable does the opposite. Each individual light head offers 45 degrees of vertical pitch adjustment, and every light can be positioned independently in the horizontal plane, so you can dial in a perfectly straight bar or a swept arc that follows the curve of your bumper or roofline.
At its core is Baja Designs' next-generation LED technology, outputting 3,162 raw lumens per light and running at 5,000 K for natural daylight colour that reduces driver fatigue on long tracks and night stages. The Clear lens combines wide cornering, driving combo and spot optics to flood zones 1 through 4 simultaneously with a smooth, seamless blend.
The wiring comes fully crimped and trimmed from the factory, ready to connect straight out of the box. Black rock guards ship with the kit to protect the housings when the lights are not in use, and the modular link design means you can add more lights later without rewiring the whole system.
Built to be yours.
45° VERTICAL PITCH
Adjust the vertical angle of each individual light or the entire bar as a unit, giving you precise control over where the beam hits the ground.
INDEPENDENT HORIZONTAL ADJUSTMENT
Each light head moves independently in the horizontal plane, letting you run a straight bar or a custom arc that hugs your vehicle's lines perfectly.
MULTI-ZONE CLEAR LENS
The Clear lens combines wide cornering, driving combo and spot optics in a single unit, lighting zones 1 through 4 simultaneously with a smooth, natural blend.
Installation overview.
SOURCE YOUR BRACKETS
Order the applicable XL Linkable mounting brackets (part 748000) for your specific vehicle or mounting location before beginning the install.
MOUNT AND POSITION
Attach the light heads to the brackets, then set your preferred horizontal layout, straight or arced, and dial in the 45-degree vertical pitch per light.
CONNECT THE HARNESS
Plug in the factory-crimped and trimmed wiring harness (640115) included in the kit. No cutting or splicing required for the standard four-light configuration.
FIT ROCK GUARDS
Clip the included black rock guards over each light head when the lights are not in use to protect the lenses and optics on the trail.
