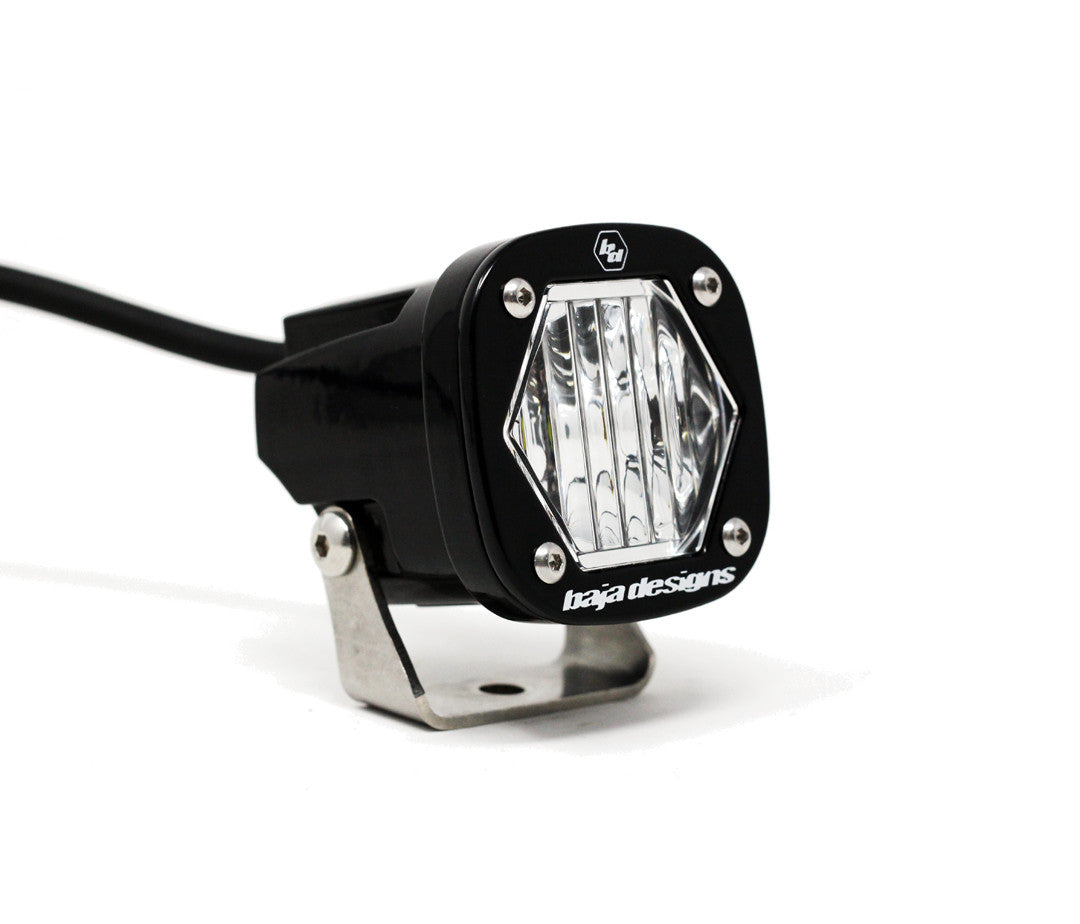

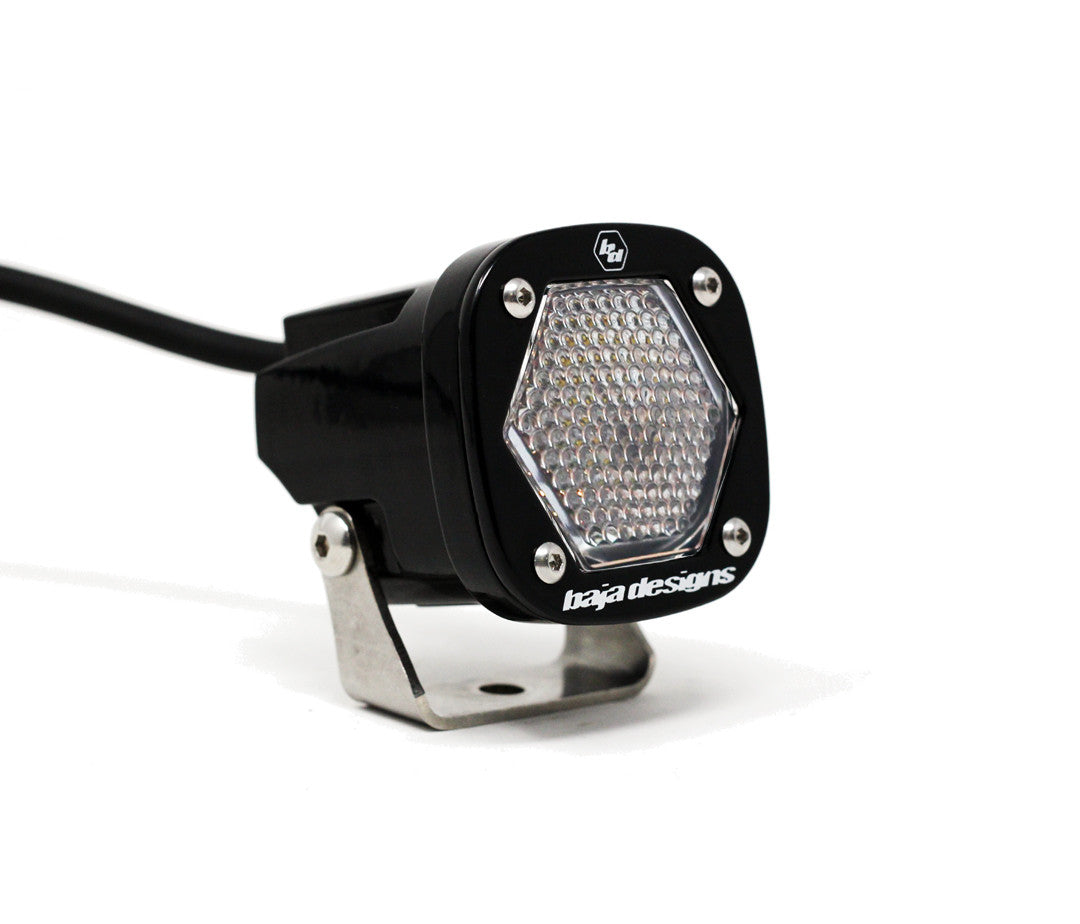

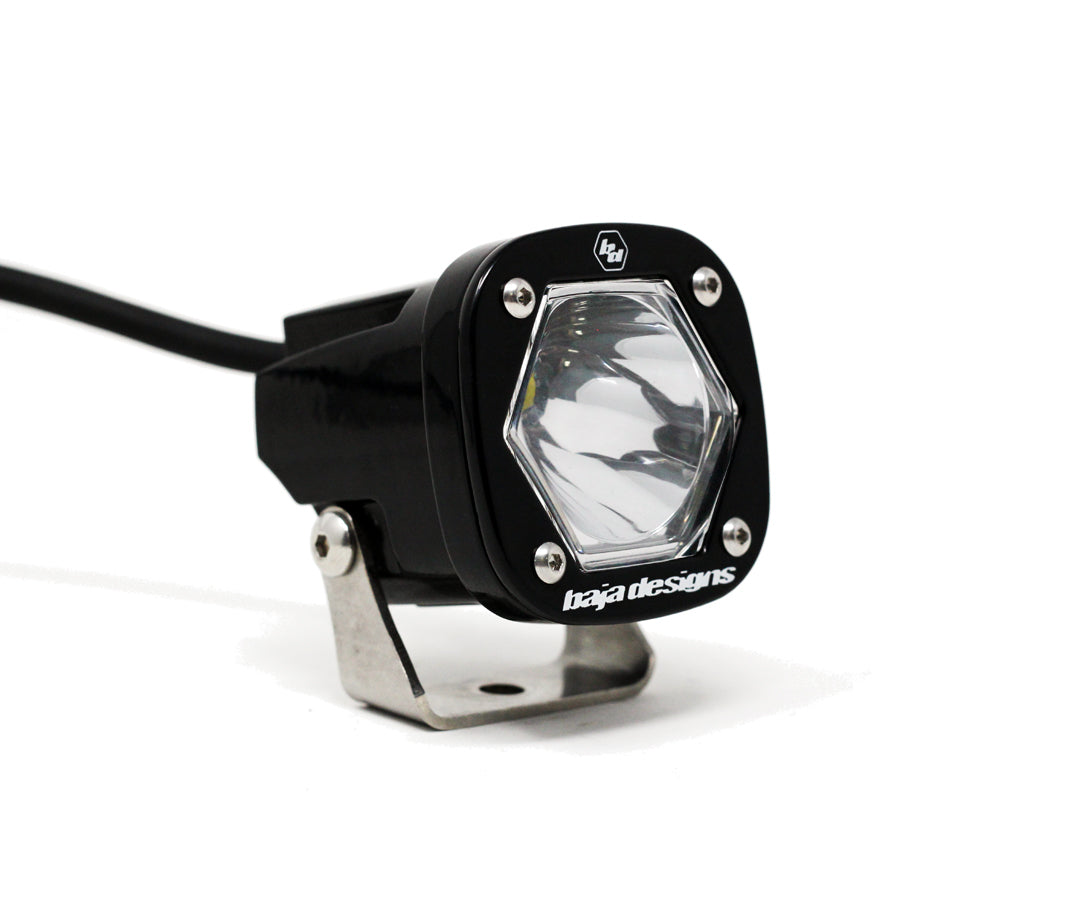

S1 Black LED Auxiliary Light Pod
Universal auxiliary pod, big output in a tiny package
The Baja Designs S1 is a compact auxiliary LED pod that punches well above its size, delivering 2,320 raw lumens from a body measuring just 2.1 inches in every direction. Available in Spot, Wide Cornering and Work/Scene patterns with Clear or Amber lens options to suit any off-road, touring or campsite application.
FREE delivery, Australia-wide
Shopping for work? You could claim up to 30% for tax purposes on your business order. Terms and conditions apply. Please check with your accountant.
Big output, small footprint.
Baja Designs engineered the S1 around a highly specialised reflector and LED combination that extracts maximum output from a housing no bigger than a golf ball. At 2.1 inches in every dimension, it tucks into spots that larger pods simply cannot fit, yet it still throws 2,320 raw lumens where you need them.

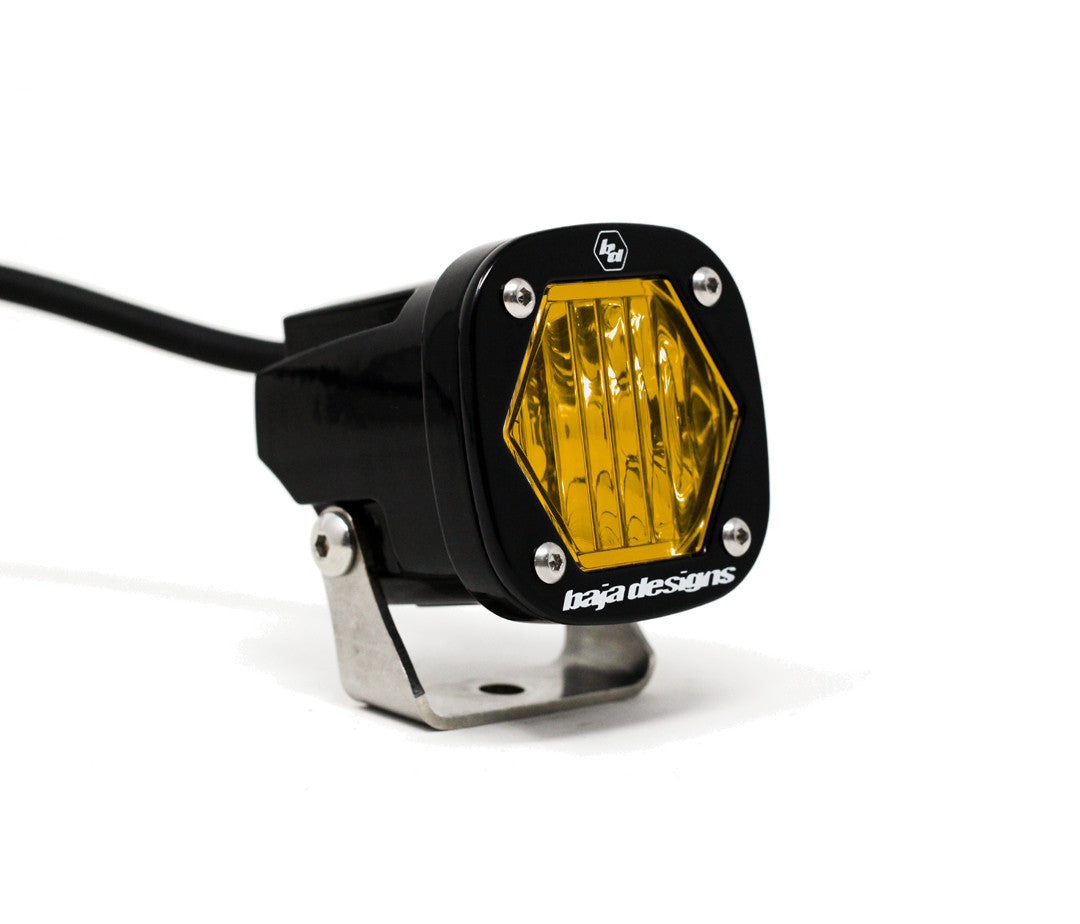

Three beam pattern choices mean one platform covers a wide range of jobs. Run a Spot up front for distance driving, a Wide Cornering pod on a bull bar wing for tight trail work, or a Work/Scene variant pointed at your camp setup. Clear lenses maximise white light output, while Amber lenses cut through dust, rain and fog with less glare kick-back.
Every S1 carries Baja Designs' full suite of protection technology including waterproof and submersible MoistureBlock sealing, 100 percent CopperDrive LED management and replaceable lenses and optics through the uService programme. A 30-day money-back guarantee and Limited Lifetime Warranty back every purchase. Note: a wiring harness is not included. Add the Squadron/S1/S2 2-pin Harness (part 640117) if required.
Built-in Baja Designs technology.
COPPERDRIVE
LEDs are driven at 100 percent capacity, squeezing every lumen out of the diode without compromising longevity.
MOISTUREBLOCK
Fully waterproof, rain-proof and submersible sealing keeps the internals protected on creek crossings and in heavy downpours.
5,000 K DAYLIGHT
Natural colour temperature reduces driver fatigue on long night runs and renders the terrain in true-to-life colour.
Installation overview.
CHOOSE YOUR MOUNT
Select a suitable aftermarket bracket, existing bull bar wing, roof rack rail or A-pillar pod. The S1's compact body suits nearly any mounting surface.
SECURE THE POD
Bolt the S1 to your chosen bracket using the integrated mount point, then adjust aim before fully tightening.
CONNECT THE HARNESS
Plug the pod into a Squadron/S1/S2 2-pin harness (part 640117, sold separately) and route wiring to your switch or relay. The 2-pin connector is weatherproof and locks securely.
AIM AND TEST
Power on and fine-tune vertical and horizontal aim. For Spot pattern, target the beam to complement your main headlight throw. For Work/Scene, angle downward to illuminate your immediate surroundings.
