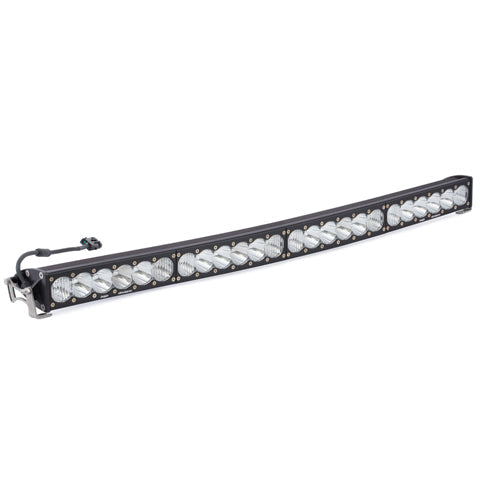

OnX6+ Arc LED Light Bar
40 inch clear driving combo
The Baja Designs OnX6+ Arc Series is the most elite LED light bar in the range, combining high-speed spot reflectors with next-generation LEDs and a beautifully arched housing that follows the contour of your bumper or windshield.
Item code: 524003
FREE delivery, Australia-wide
Shopping for work? You could claim up to 30% for tax purposes on your business order. Terms and conditions apply. Please check with your accountant.
Why the Arc Series raises the bar.
Traditional LED light bars are built flat. The OnX6+ Arc Series is not. Its gently arched profile is engineered to follow the natural curve of a bull bar or windshield surround, sitting flush and looking factory-fitted rather than bolted on as an afterthought.
Under the hood, Baja Designs has moved to next-generation LEDs that deliver 37 per cent greater distance over the previous generation, running at a 5000K colour temperature that mimics natural daylight. That means better trail recognition and less eye fatigue on long nights in the scrub.
High-speed spot reflectors push light further down the road while the ClearView optic system puts it precisely where it is needed. CopperDrive technology safely drives the LEDs at 100 per cent output, and MoistureBlock sealing makes the bar fully waterproof and submersible. A 30-day money-back guarantee and limited lifetime warranty back every bar.
Built for the long haul.
CLEARVIEW OPTICS
Precision-engineered optics direct all available light exactly where you need it, maximising usable output without scatter or waste.
COPPERDRIVE TECHNOLOGY
Safely drives LEDs at 100% rated output for consistent, reliable performance across the full life of the bar.
MOISTUREBLOCK SEALING
Fully waterproof, rain-proof and submersible construction keeps water and dust out, no matter what the track throws at it.
Installation overview.
MOUNT THE BAR
Fit the Arc Series bar to your bull bar, roof rack or windshield surround using the supplied mounting hardware. The arched profile is designed to follow common bumper curves.
RUN YOUR WIRING
Purchase wiring harness PN 640119 (Hi-Power w/Mode Switch, 2-light max) separately. Route the harness from the bar to your battery and cabin switch location, following factory loom paths where possible.
CONNECT AND TEST
Connect the harness to the bar and battery, then test the light for full output before sealing any cable entry points.
