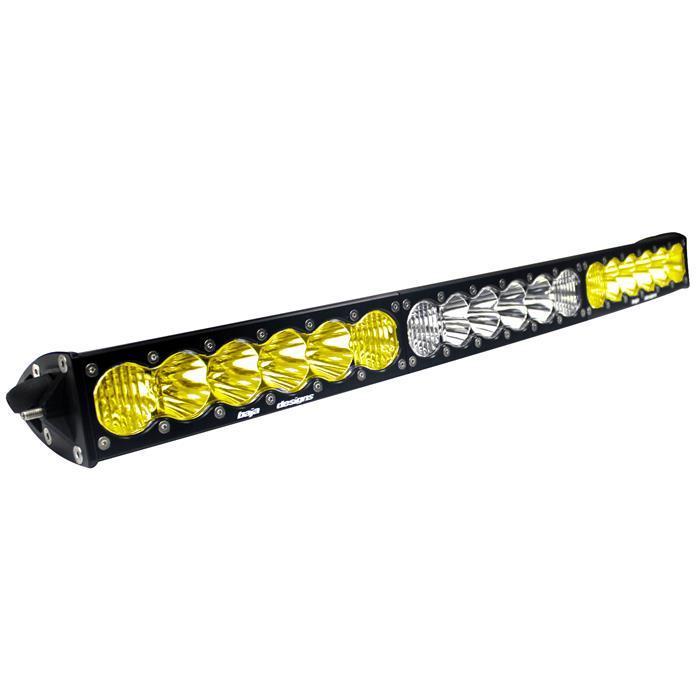

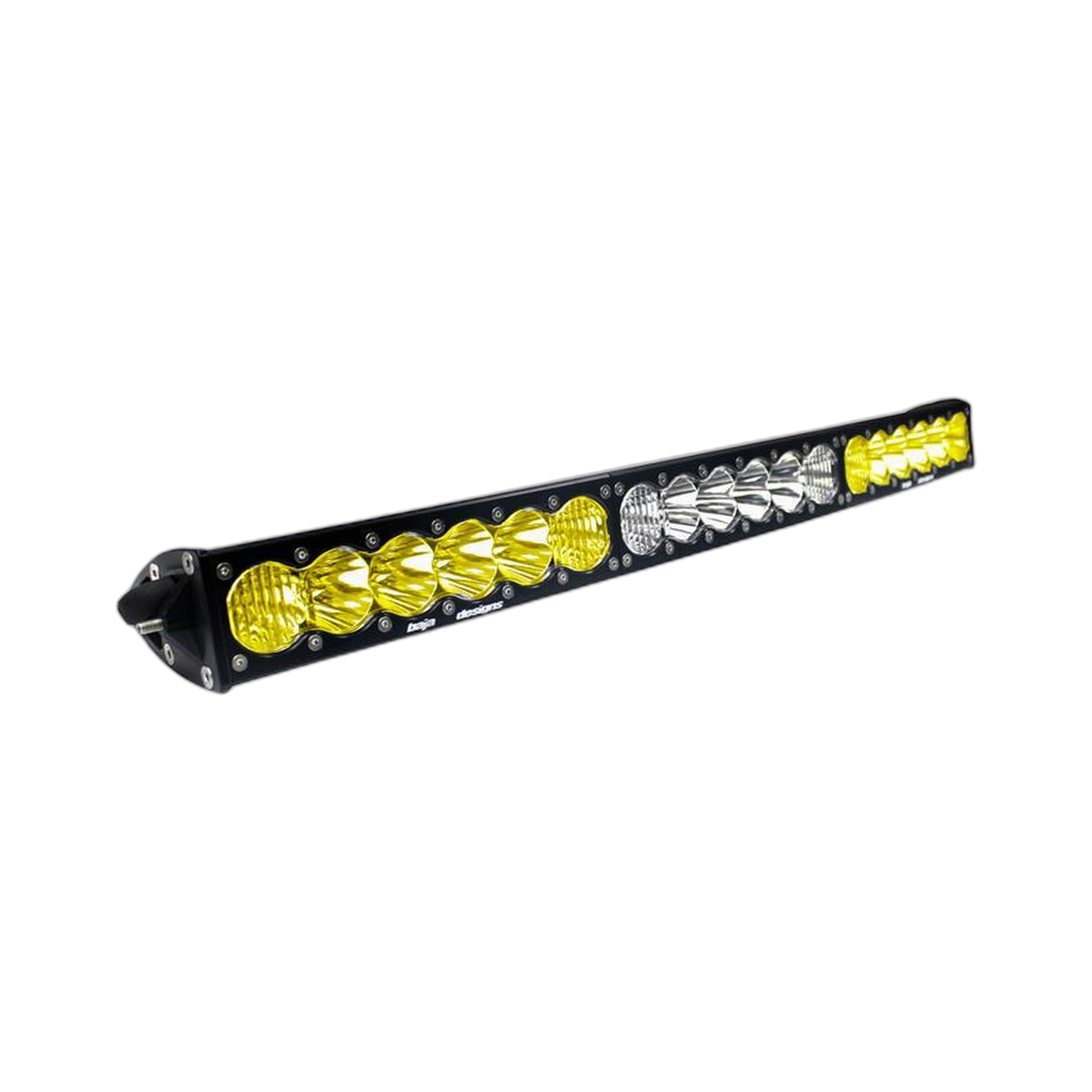

OnX6 Arc Dual Control LED Light Bar
30 inch, independent inner/outer zone control
The Baja Designs OnX6 Arc Dual Control gives you independent switching of the inner and outer LED sections, so you can run white and amber light from a single 30-inch bar, each zone on its own circuit, on your terms.
Item code: 523003DC
FREE delivery, Australia-wide
Shopping for work? You could claim up to 30% for tax purposes on your business order. Terms and conditions apply. Please check with your accountant.
One bar, two worlds.
Most light bars lock you into a single output mode. The OnX6 Arc Dual Control changes that by splitting the bar into inner and outer sections, each with its own power cord and switch. You get white light when you need maximum visibility and amber when conditions call for it, all from one clean installation.
Baja Designs built the OnX6 around their CopperDrive technology, which drives every LED at 100 percent power rather than stepping down current to protect lesser components. Pair that with ClearView optics that put light precisely where it is useful and 5000K daylight colour to reduce driver fatigue on long nights, and you have a bar that earns its place on the roof or bar.
Every OnX6 ships with Baja Designs' industry-first 30-Day Satisfaction Guarantee backed by a Limited Lifetime Warranty. Lenses and optics are user-replaceable through the uService programme, so the bar can be serviced in the field rather than returned. Note that the required wiring harness is sold separately, part number 640119.
Built-in advantages that set it apart.
DUAL CONTROL
Two separate power cords and switches let you operate the inner and outer LED sections independently, giving you white and amber output from the one bar without any compromise.
COPPERDRIVE
Every LED is driven at 100 percent power, not throttled back to protect cheaper electronics. The result is maximum, consistent output across the full life of the bar.
CLEARVIEW OPTICS
Baja Designs' ClearView system directs all available light exactly where it is needed, reducing scatter and putting usable illumination on the road or trail ahead.
Installation overview.
SELECT YOUR MOUNT
Choose a roof rack, bull bar top rail or dedicated bracket that suits the 30-inch span and provides a solid, vibration-resistant base.
ROUTE TWO HARNESSES
The dual control setup requires two separate wiring runs. Order harness part 640119 (sold separately) and plan your cable path for both the inner and outer circuit before drilling or fastening anything.
CONNECT AND SWITCH
Wire each harness to its own switch in the cabin. Label or position the switches clearly so you can select white, amber or both without distraction while driving.
CONFIRM AIM
With the bar energised, check the beam aim at a flat surface approximately 7 metres ahead and adjust the mounting angle before fully torquing all fasteners.
