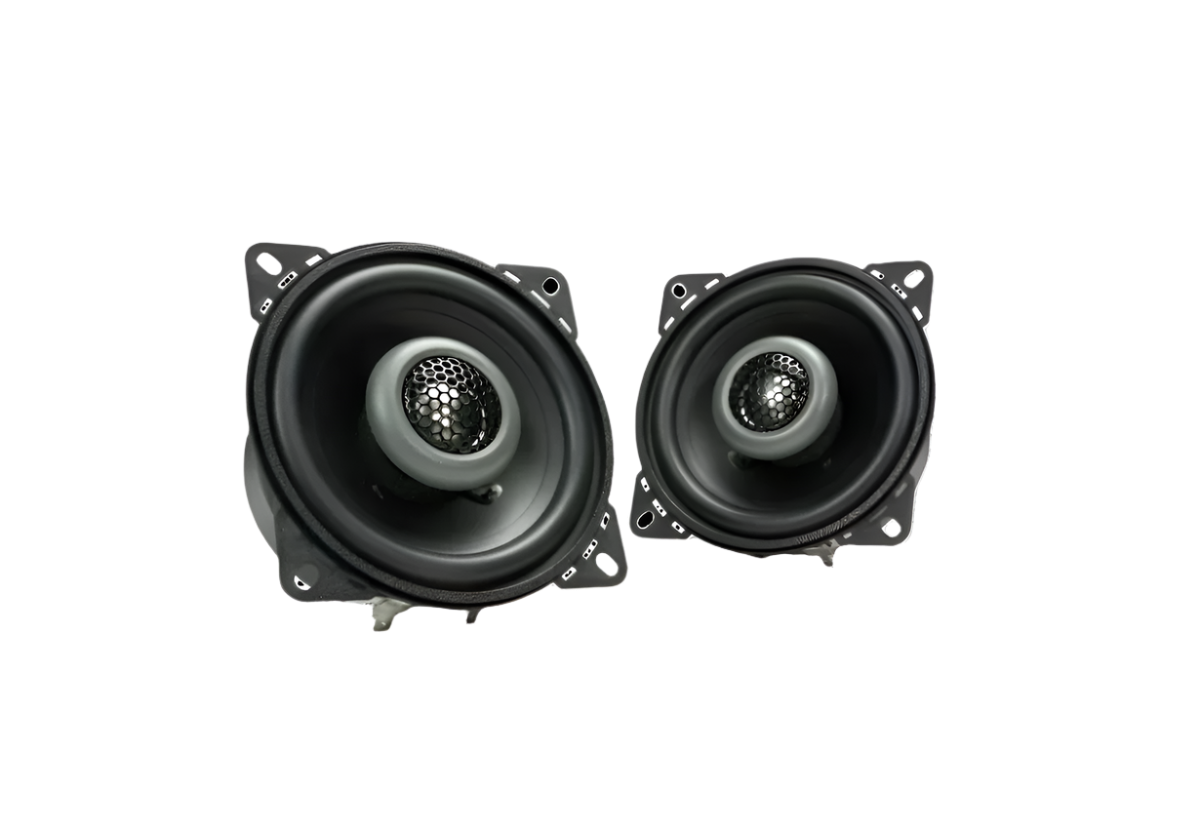

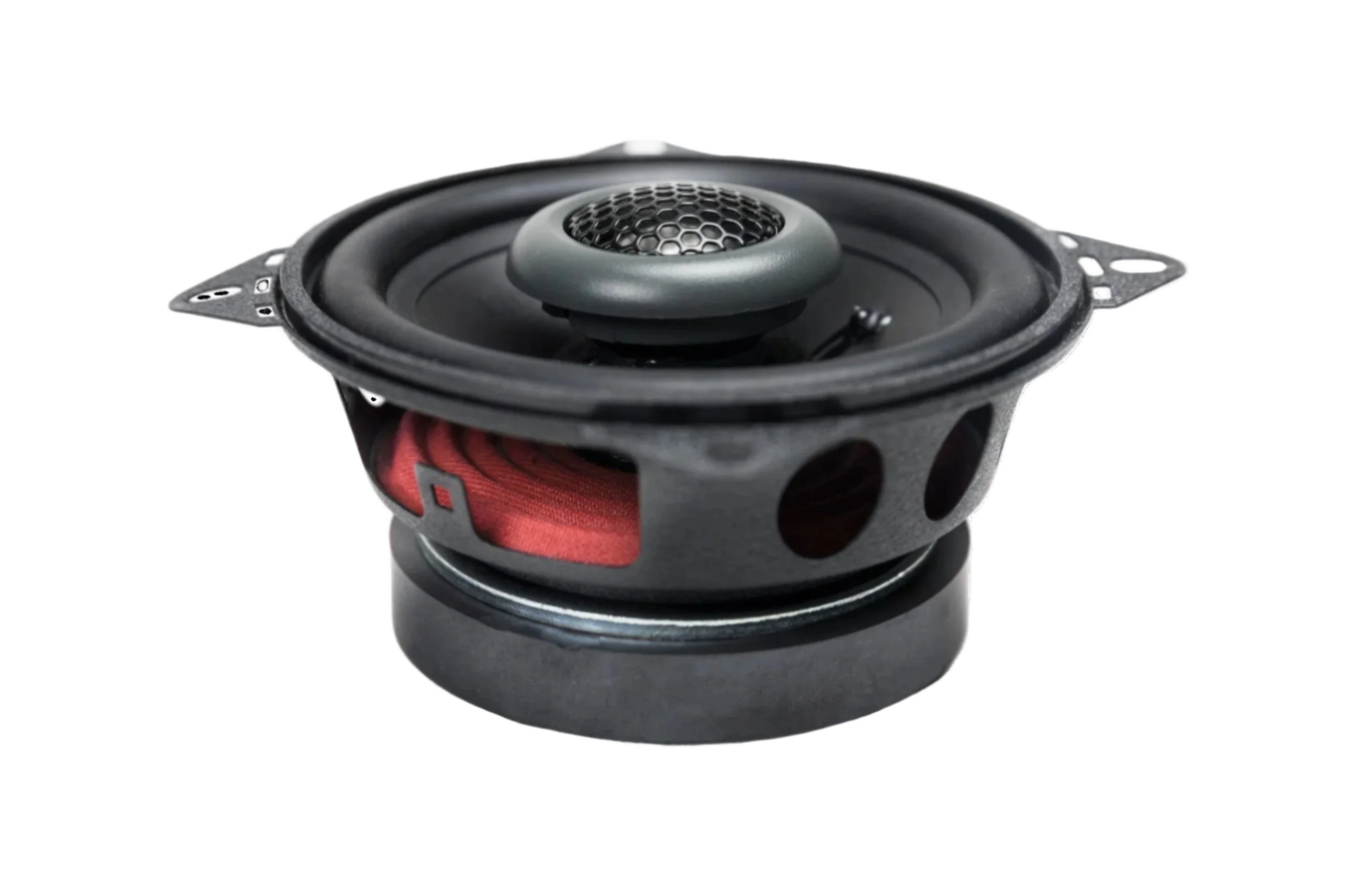

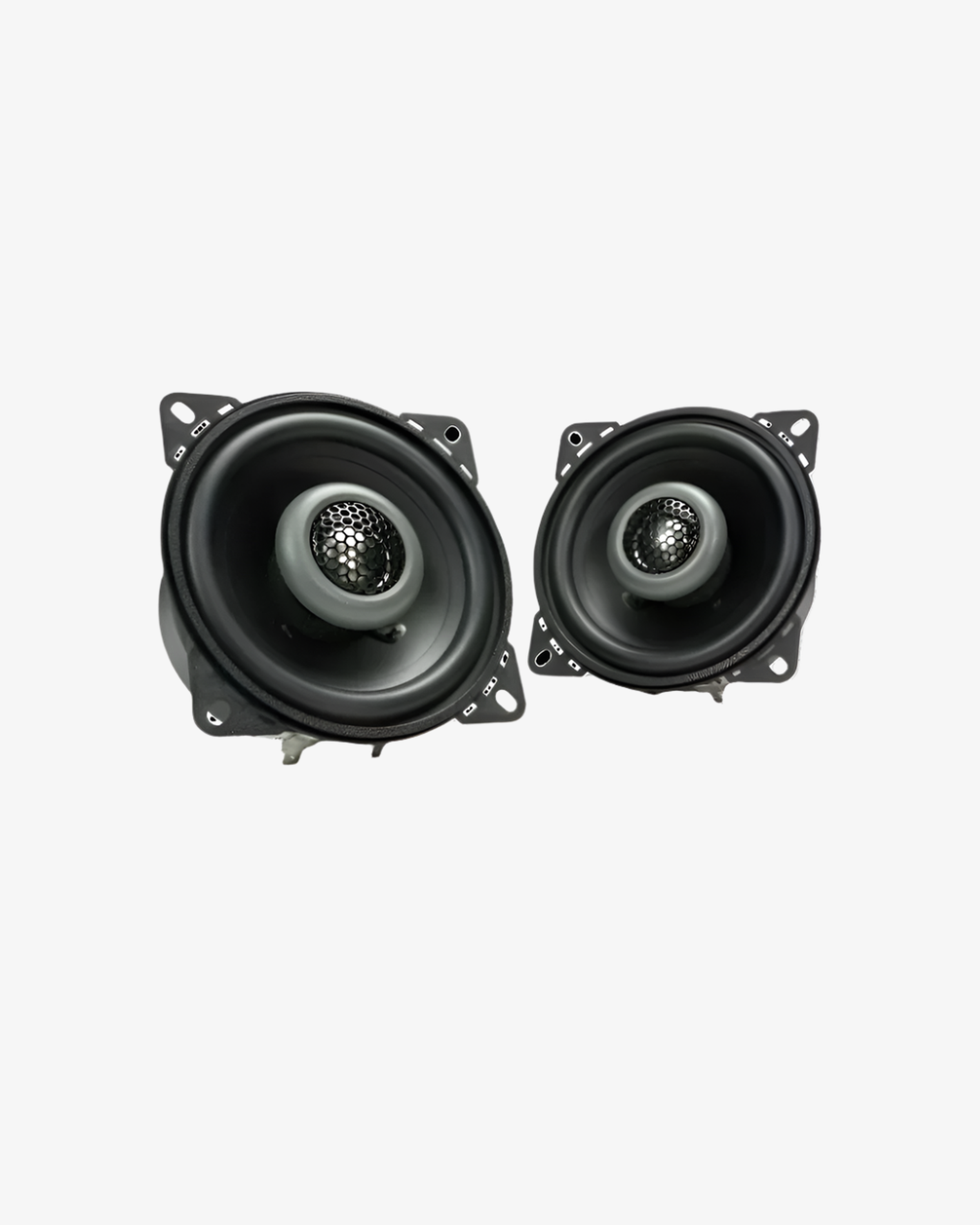

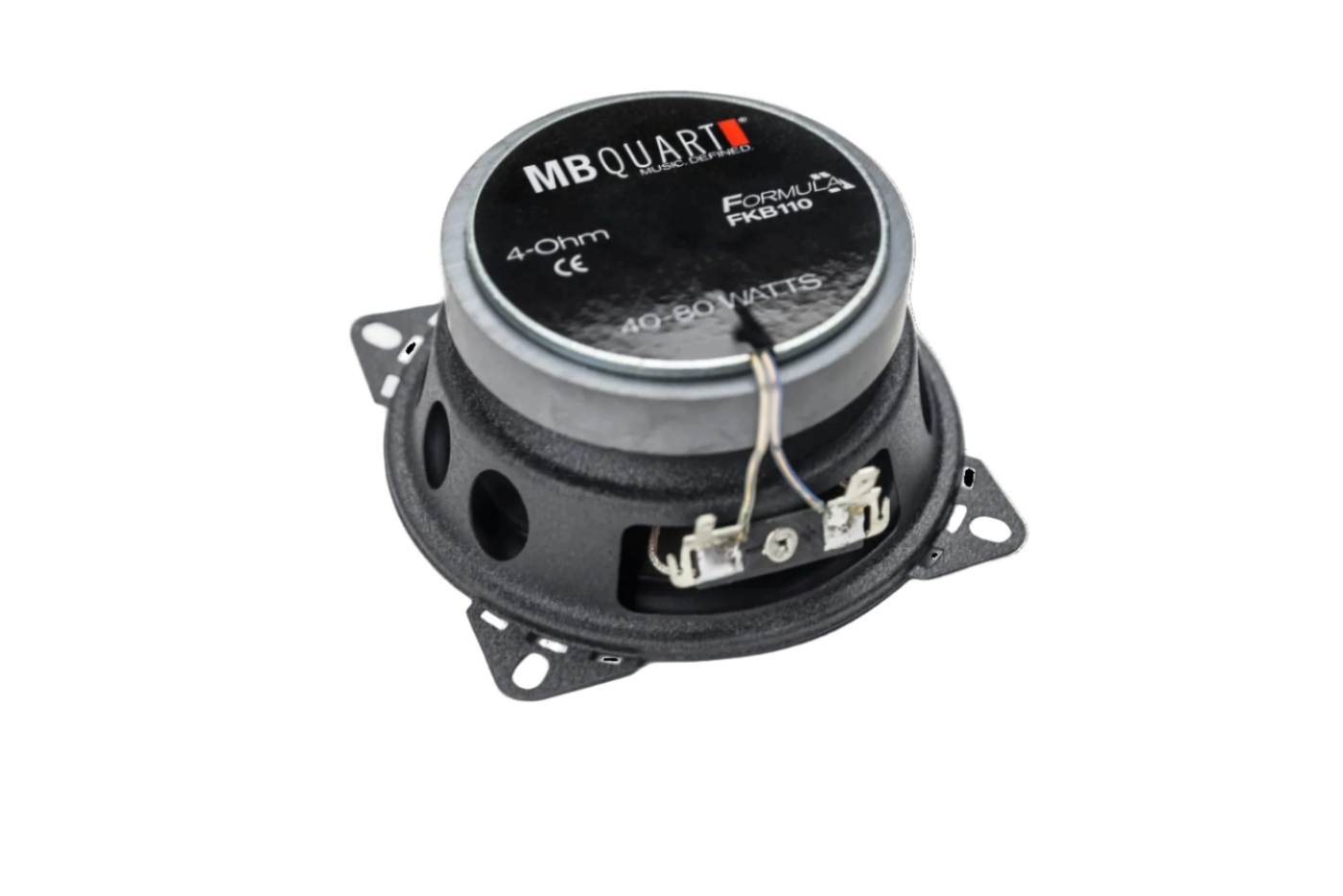

MBQuart 4" 2-Way Coaxial Car Speakers
Overview
MBQuart 4" 2-Way Coaxial Car Speakers.
Compact 4" 2-way coaxial speakers with aluminium dome tweeters and butyl rubber surrounds. Built around a heavy gauge steel basket and ferrite magnet motor, they handle 175W peak in a footprint small enough to suit dash and door pod installs.
Key features
Designed for the way you drive.
precision
Aluminium dome tweeters with integrated crossover
engineered
Butyl rubber surrounds for long-term durability
performance
Heavy gauge progressive-die stamped steel frame
reliability
Ferrite magnet motor for strong field in compact size
design
Spade connectors or direct solder with tinsel leads
Gallery
A closer look.
Specifications
The detail.
| Specification | Value |
|---|---|
| Speaker Size | 4 inches |
| Configuration | 2-Way Coaxial |
| RMS Power Handling | 40 watts |
| Peak Power Handling | 80 watts |
| Maximum Power | 175 watts |
| Impedance | 4 ohms |
| Sensitivity | 88 dB |
| Frequency Response | 55Hz – 19kHz |
| Crossover Slope | 12 dB at 6 kHz |
| Mounting Cutout | 3.69 inches |
| Outside Diameter | 6.26 inches |
| Mounting Depth | 3 inches |
| Colour | Black |
| Warranty | 2 Years |
