LP9 Sport LED Driving Combo
Full-size auxiliary light, clear lens

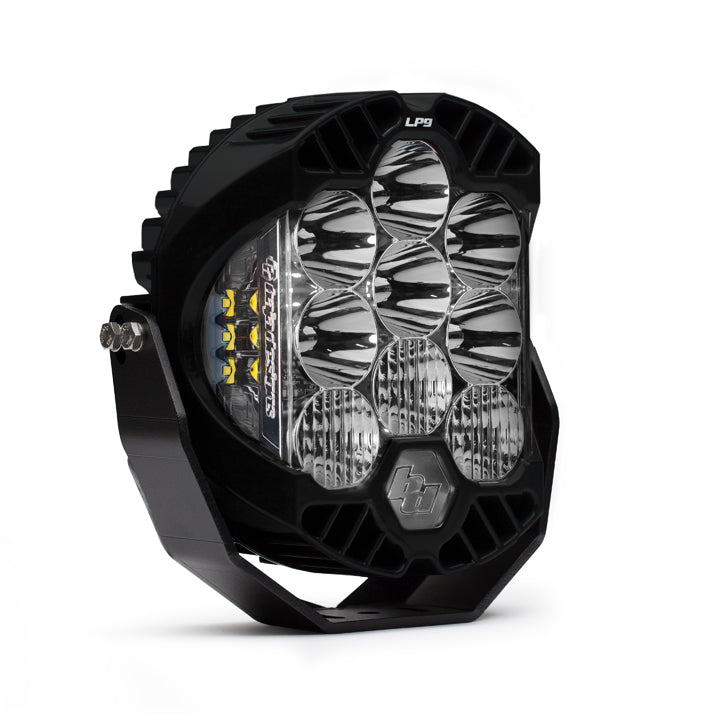

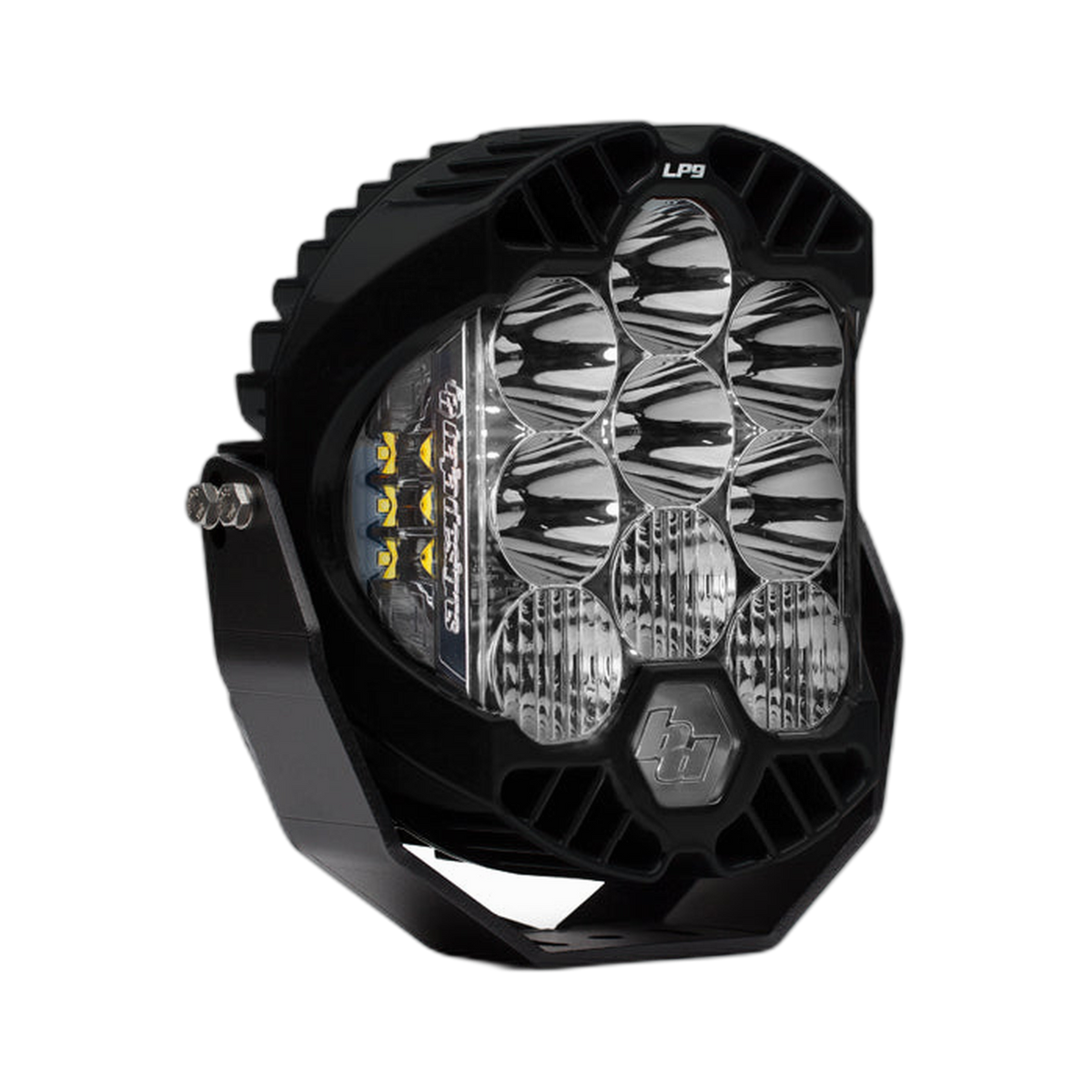

The Baja Designs LP9 Sport is a full-size auxiliary LED light built for serious off-road and touring use. It delivers 9,421 lumens of forward light at 88 watts, plus an additional 2,302 lumens from six dedicated IPT LEDs for a 200-degree spread of usable light around the vehicle.
Item code: 350005
FREE delivery, Australia-wide
Shopping for work? You could claim up to 30% for tax purposes on your business order. Terms and conditions apply. Please check with your accountant.
A full-size light built to perform.
The LP9 Sport carries all the core technology that made the LP9 series a benchmark in auxiliary lighting. Direct Ducted Cooling keeps the unit running at peak efficiency under sustained load, while Integrated Peripheral Technology (IPT) pushes usable light out to a 200-degree arc, illuminating not just the road ahead but the terrain to either side.
At 5000K daylight colour temperature, the LP9 Sport produces natural, fatigue-reducing light that makes long nights on dirt roads far more manageable. CopperDrive technology ensures every LED is driven at 100 percent, and MoistureBlock sealing makes the unit fully waterproof and submersible, so harsh conditions are simply not a concern.
The uService system means the lens pattern and colour can be swapped out in the field, future-proofing your investment. Note that the LP9 Sport is a simple on/off unit and does not include the amber backlit feature. Those capabilities are available on the LP9 Pro and Racer Editions.
Why the LP9 Sport stands apart.
DIRECT DUCTED COOLING
Internal airflow channels manage heat under sustained use, keeping the light performing at its best even during long off-road runs.
IPT, 200° SPREAD
Integrated Peripheral Technology adds six dedicated LEDs that cast usable light across a full 200-degree arc, lighting up the edges of the trail as well as what is straight ahead.
USERVICE LENSES
Lens patterns and colours are field-replaceable, so you can adapt the light to different conditions or refresh worn optics without replacing the entire unit.
Installation overview.
SELECT A MOUNT POINT
Choose a solid mounting location such as a bull bar, roof rack or A-pillar bracket that aligns the light with your intended beam direction.
FIT THE BRACKET
Secure the LP9 Sport to your chosen mount using the hardware supplied. Adjust the aim before fully tightening.
RUN THE WIRING
Route power and ground leads to a suitable relay or wiring harness. The LP9 Sport operates on a simple on/off circuit, no hi/lo switching required.
FINAL AIM AND TEST
With wiring connected, power the light and confirm beam direction. Adjust aim as needed, then lock off the mounting hardware.
