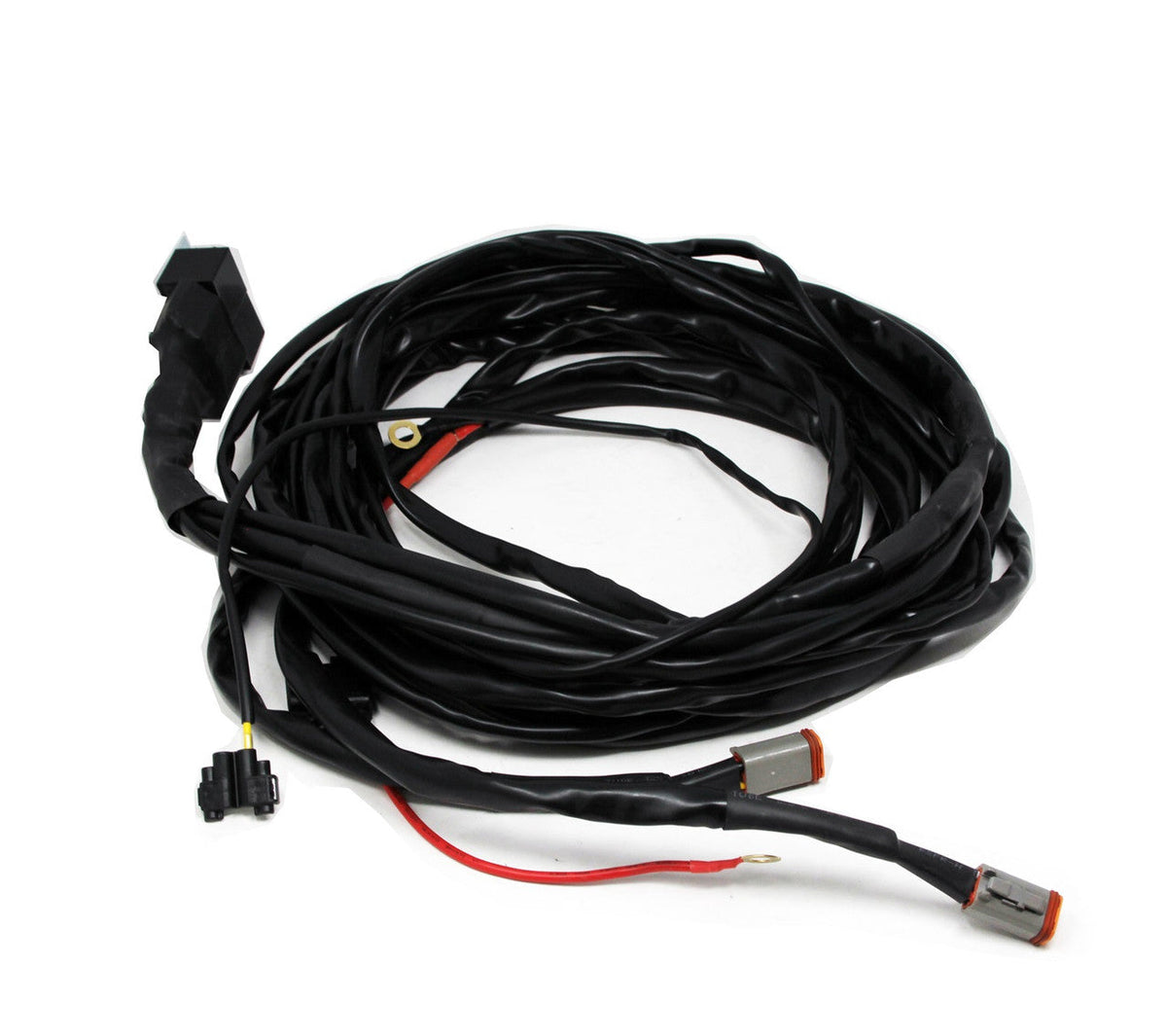

LP9/LP6 Upfitter Lock-Out Wiring Harness
Universal fitment for LP Series lights
Purpose-built for LP Series LED lights, this Baja Designs wiring harness prevents high and low circuits from running simultaneously, making it the clean, reliable link between your LP lights and your power management system.
FREE delivery, Australia-wide
Shopping for work? You could claim up to 30% for tax purposes on your business order. Terms and conditions apply. Please check with your accountant.
Wired without the guesswork.
LP Series lights run separate high and low circuits, and feeding power to both at once is a real risk when routing through third-party power modules or factory upfitter systems. This harness solves that problem at the source, building the lock-out logic directly into the wiring so it simply cannot happen.
Designed to work hand-in-hand with popular power management systems like sPOD, Switch-Pros and OEM factory upfitter switches, it slots neatly into an existing install without hacking up looms or adding relays. If you want your LP lights wired correctly the first time, this is the harness to reach for.
Built to keep your LP lights protected.
LOCK-OUT PROTECTION
Prevents high and low circuits from being powered simultaneously, protecting your LP Series lights and your electrical system.
UPFITTER COMPATIBLE
Designed to integrate directly with sPOD, Switch-Pros and factory OEM upfitter switch systems for a clean, plug-in install.
LP SERIES SPECIFIC
Purpose-engineered for the LP9 and LP6 Series, so every connector and circuit suits the lights right out of the box.
Installation overview.
CONFIRM COMPATIBILITY
Verify you have Baja Designs LP9 or LP6 Series lights and a compatible power module such as sPOD, Switch-Pros or a factory upfitter system.
CONNECT TO LIGHTS
Plug the harness into your LP Series lights using the dedicated connectors, no modification required.
CONNECT TO POWER MODULE
Route the harness to your power management system and connect the high and low circuit outputs as directed by your module's wiring guide.
TEST CIRCUITS
Confirm that high and low circuits operate independently and that the lock-out function prevents simultaneous activation before finalising the install.
