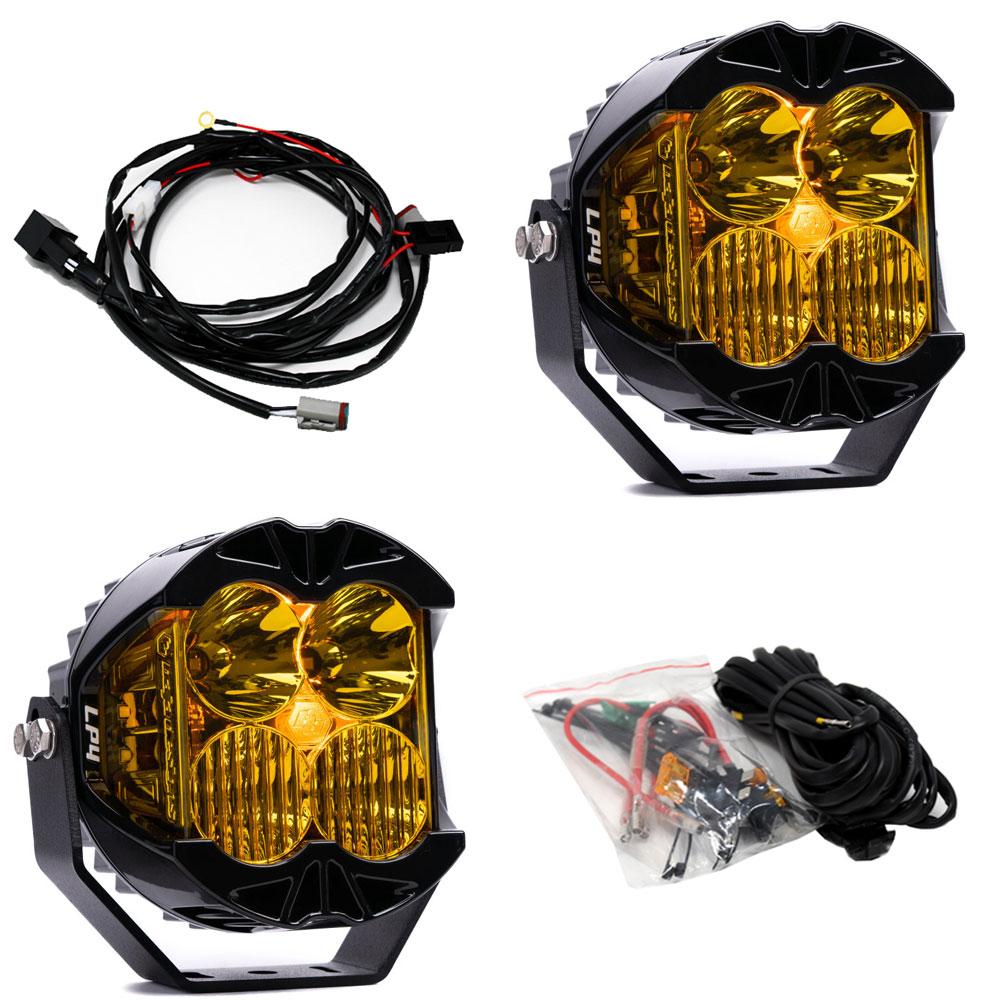

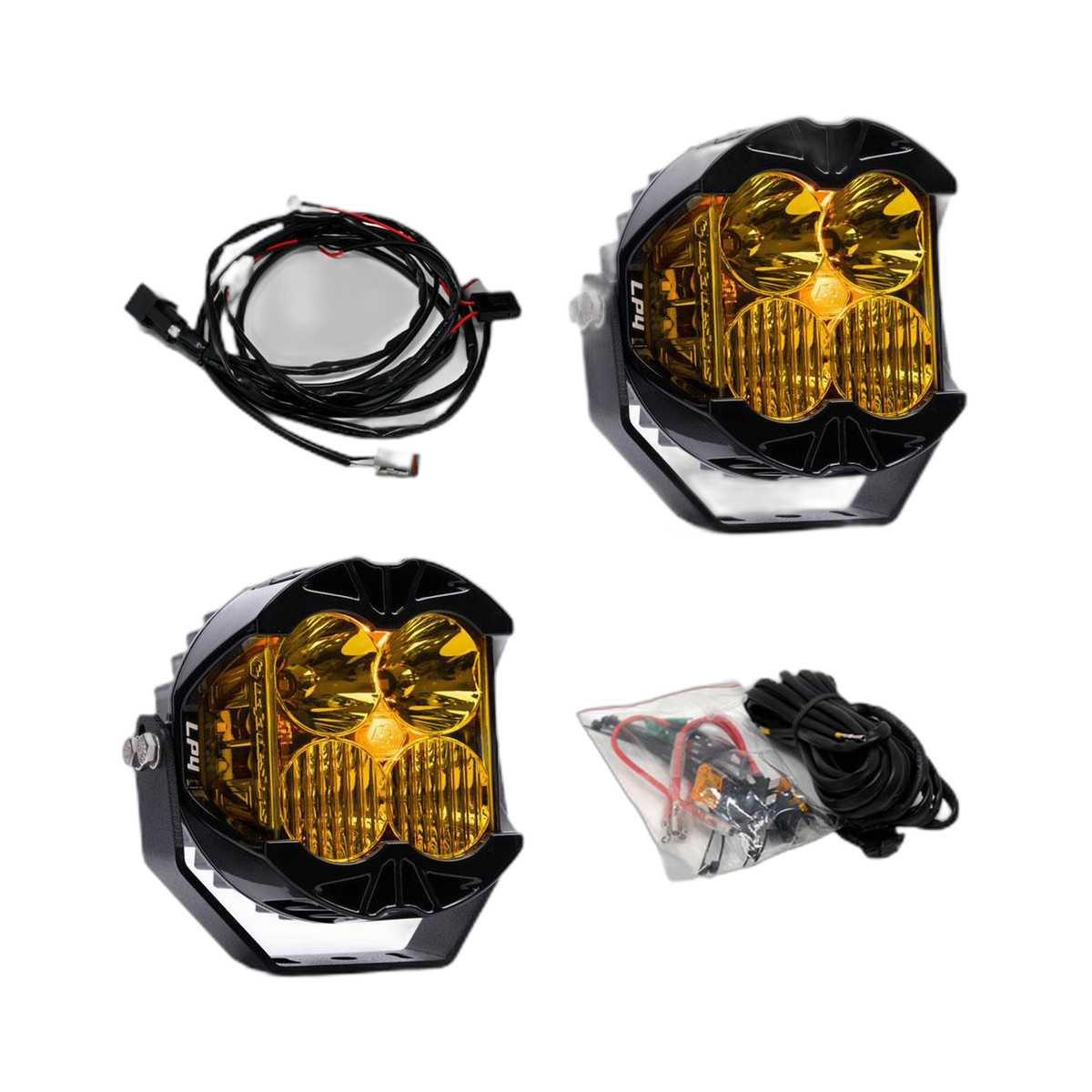

LP4 Pro Pair-Driving/Combo Amber
Baja Designs LED auxiliary light pods
The Baja Designs LP4 Pro is the most compact light in the LP series, delivering 8,857 total lumens with 200 degrees of usable LED spread. Sold as a pair in Driving/Combo beam with amber output, it packs full-size LP performance into a smaller pod.
Item code: 297813
FREE delivery, Australia-wide
Shopping for work? You could claim up to 30% for tax purposes on your business order. Terms and conditions apply. Please check with your accountant.
Big performance, compact pod.
The LP4 Pro is the smallest light in Baja Designs' LP lineup, but it makes no compromises on technology. Integrated Peripheral Technology (IPT) splits the output across 200 degrees, giving you 6,885 lumens of focused forward throw and 1,972 lumens of dedicated peripheral coverage so the edges of the road or trail are as well-lit as the centre.
Thermal management is handled by Baja Designs' proprietary Direct Ducted Cooling (DDC) system, which channels airflow directly over the rear heat sinks to maintain consistent output and extend the life of the LEDs. CopperDrive circuitry runs the LEDs at 100% rated current, so you get full, reliable brightness on every drive.
The amber Driving/Combo configuration suits touring and off-road use where warm, high-contrast output is preferred. The LP4 Pro also supports optional red, blue or green backlights for shows and exhibitions. Note: coloured backlights are intended for exhibition use only and must not be used on public roads.
Built-in technology, real-world results.
INTEGRATED PERIPHERAL TECHNOLOGY
IPT delivers 1,972 lumens of dedicated peripheral light across a 200-degree spread, eliminating the dark edges that single-direction pods leave behind.
DIRECT DUCTED COOLING
DDC channels air directly over the rear heat sinks, improving cooling capacity and protecting long-term output without relying on passive dissipation alone.
COPPERDRIVE
CopperDrive circuitry drives the LEDs at a continuous 100% rated current for consistent, full-brightness output on every trip.
Installation overview.
SELECT A MOUNT POINT
Choose a solid, vibration-resistant surface such as a bull bar tube, roof rack rail or grille bar. Confirm the chosen position gives a clear, unobstructed forward beam path.
SECURE THE PODS
Attach the LP4 Pro pods using the supplied hardware. Tighten fasteners firmly to prevent vibration loosening on corrugated tracks.
ROUTE AND PROTECT WIRING
Run wiring away from heat sources, sharp edges and moving parts. Use conduit or split loom where the harness passes through the engine bay.
CONNECT TO A RELAY HARNESS
Always wire auxiliary lights through a quality relay harness with an appropriate fuse rating. Direct wiring to a switch without a relay risks voltage drop and switch damage.
AIM AND TEST
Before heading out, aim the pods to the desired beam angle and confirm both lights operate correctly through the full switch cycle.
