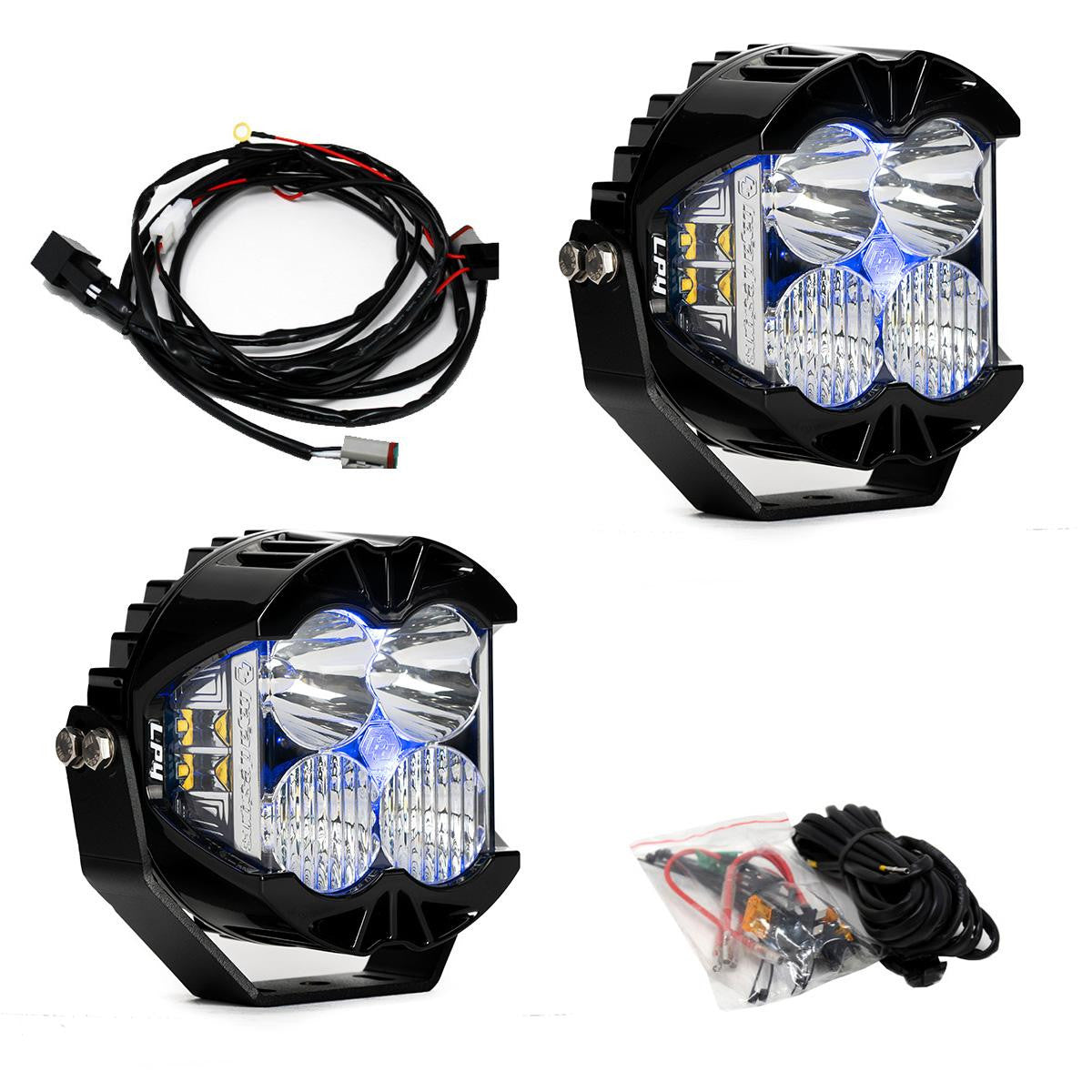

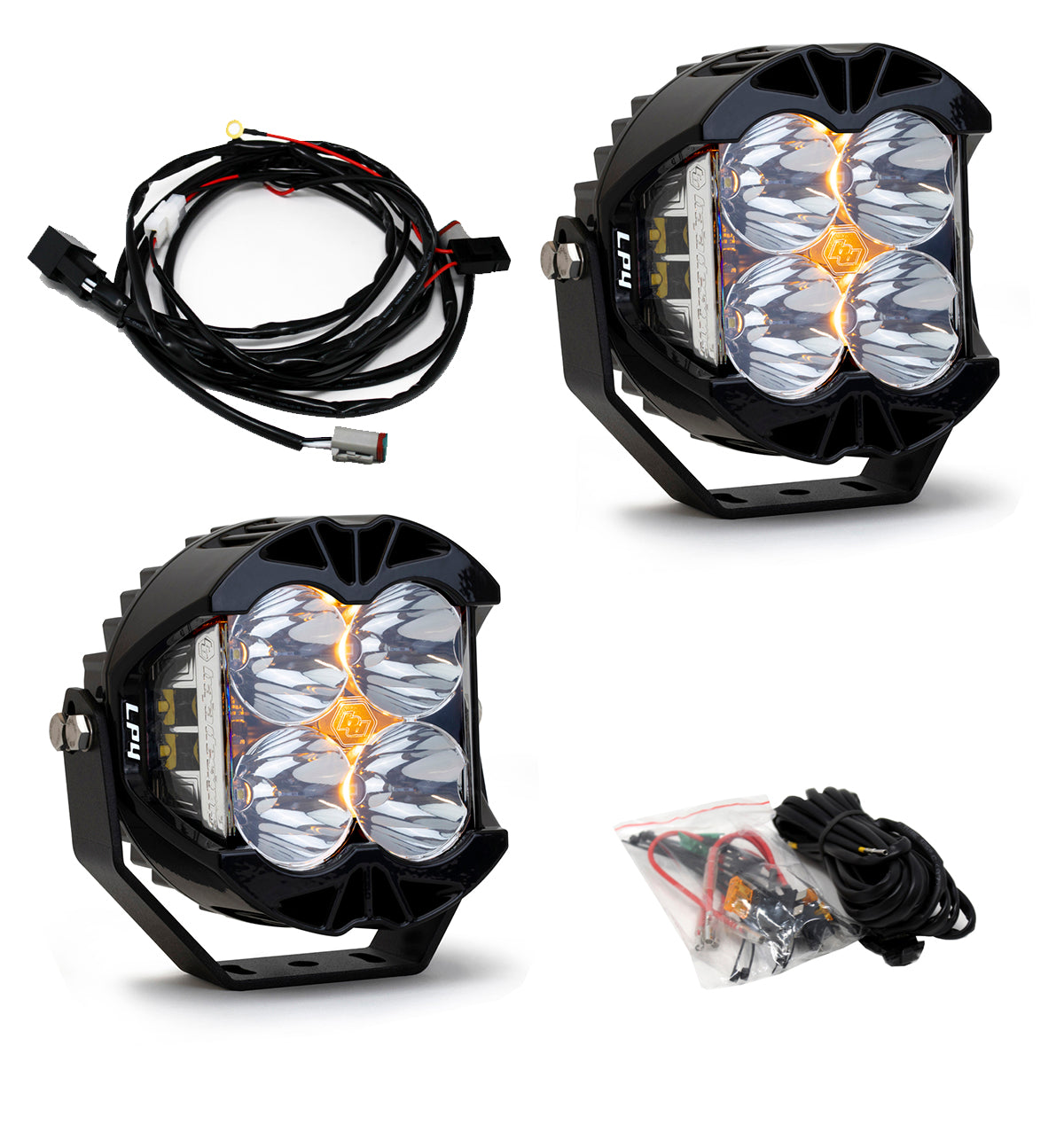

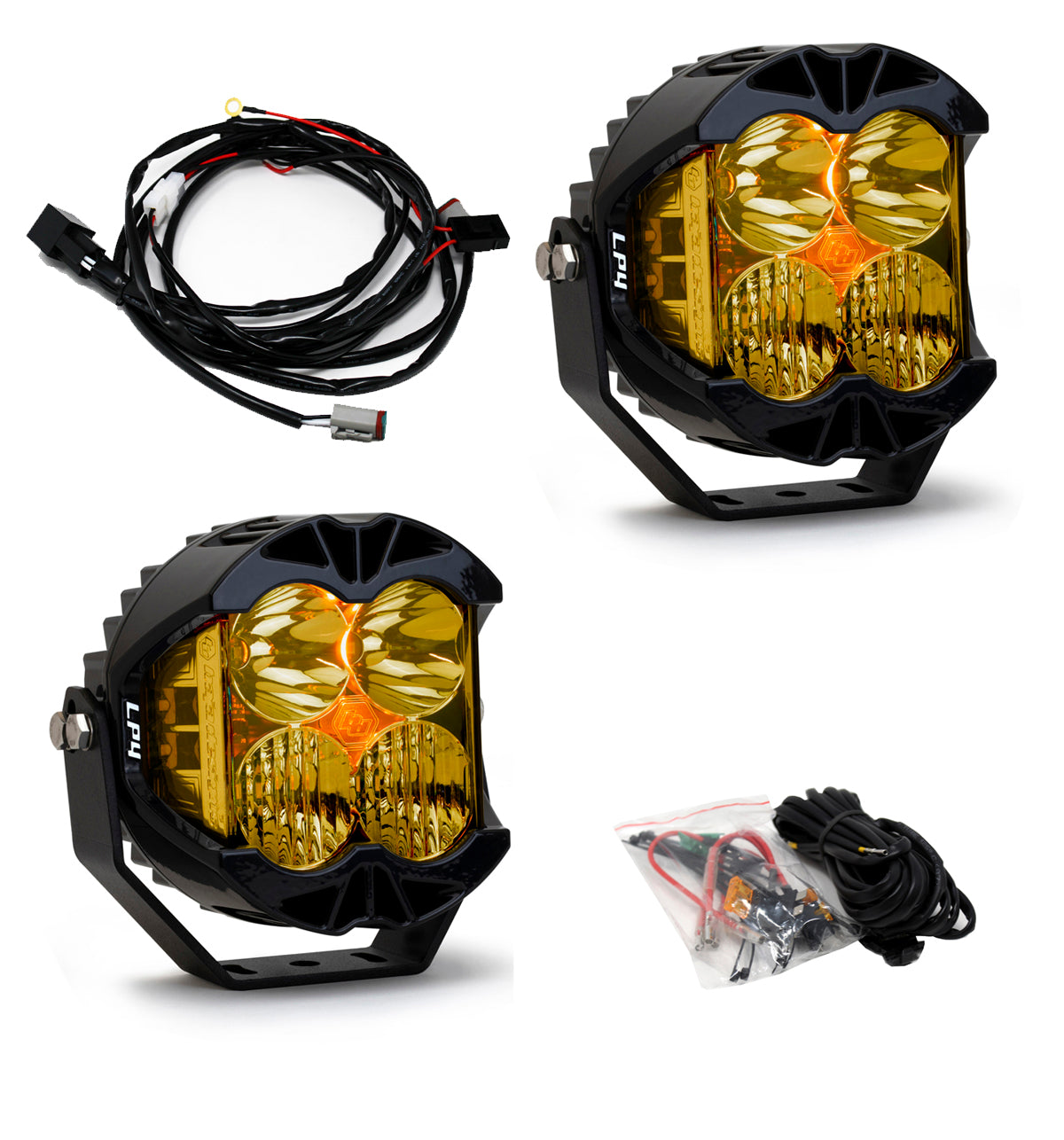

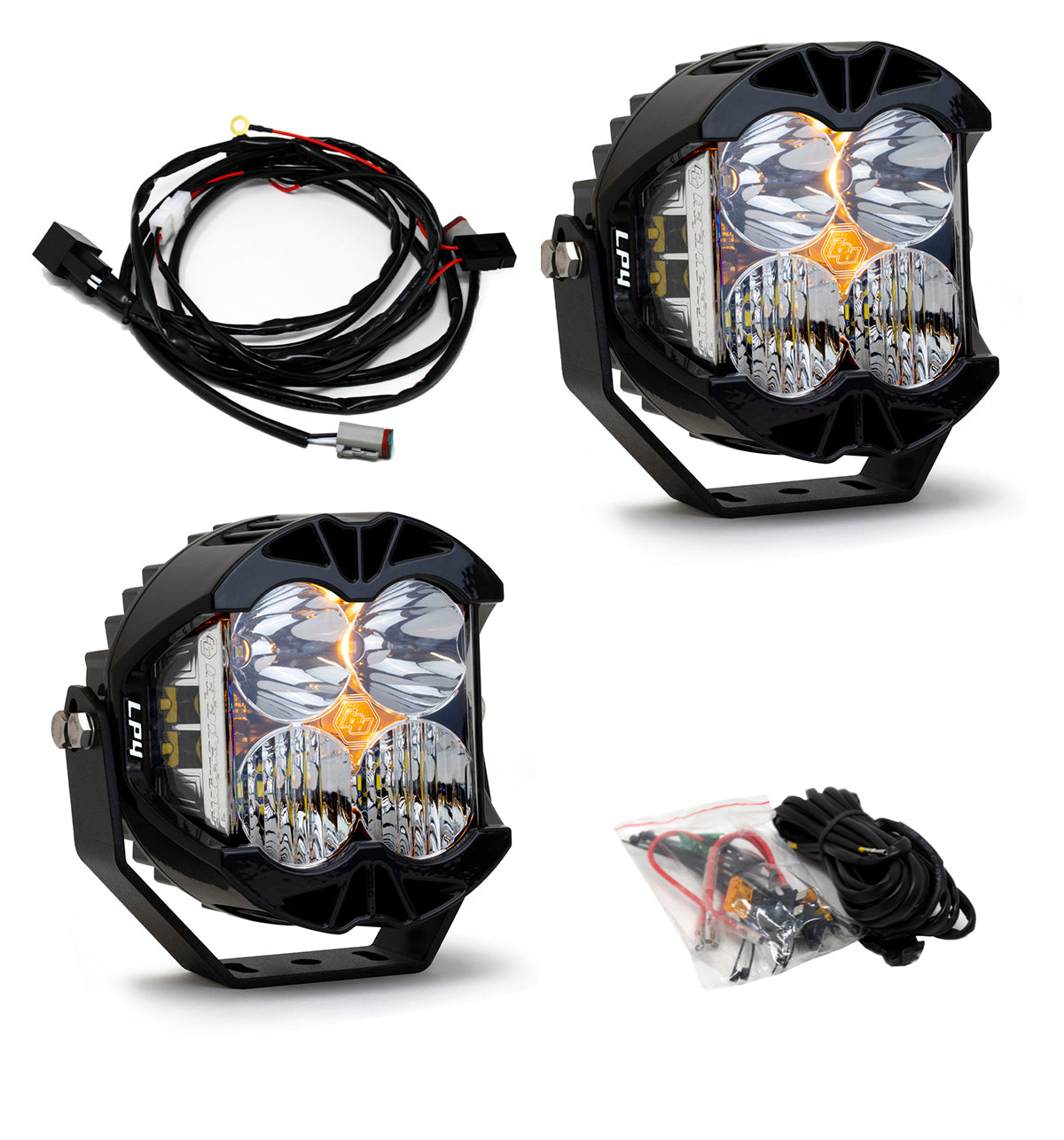

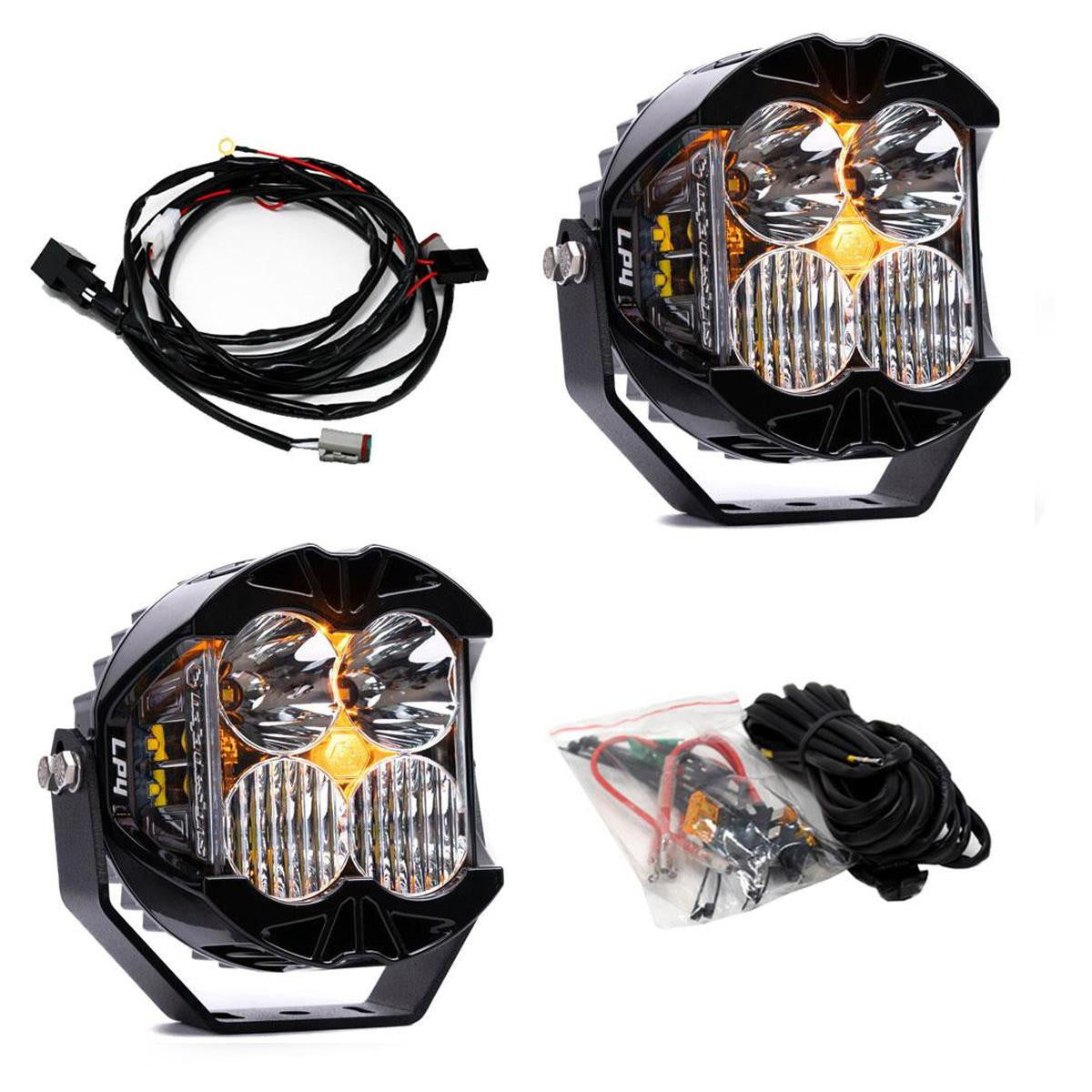

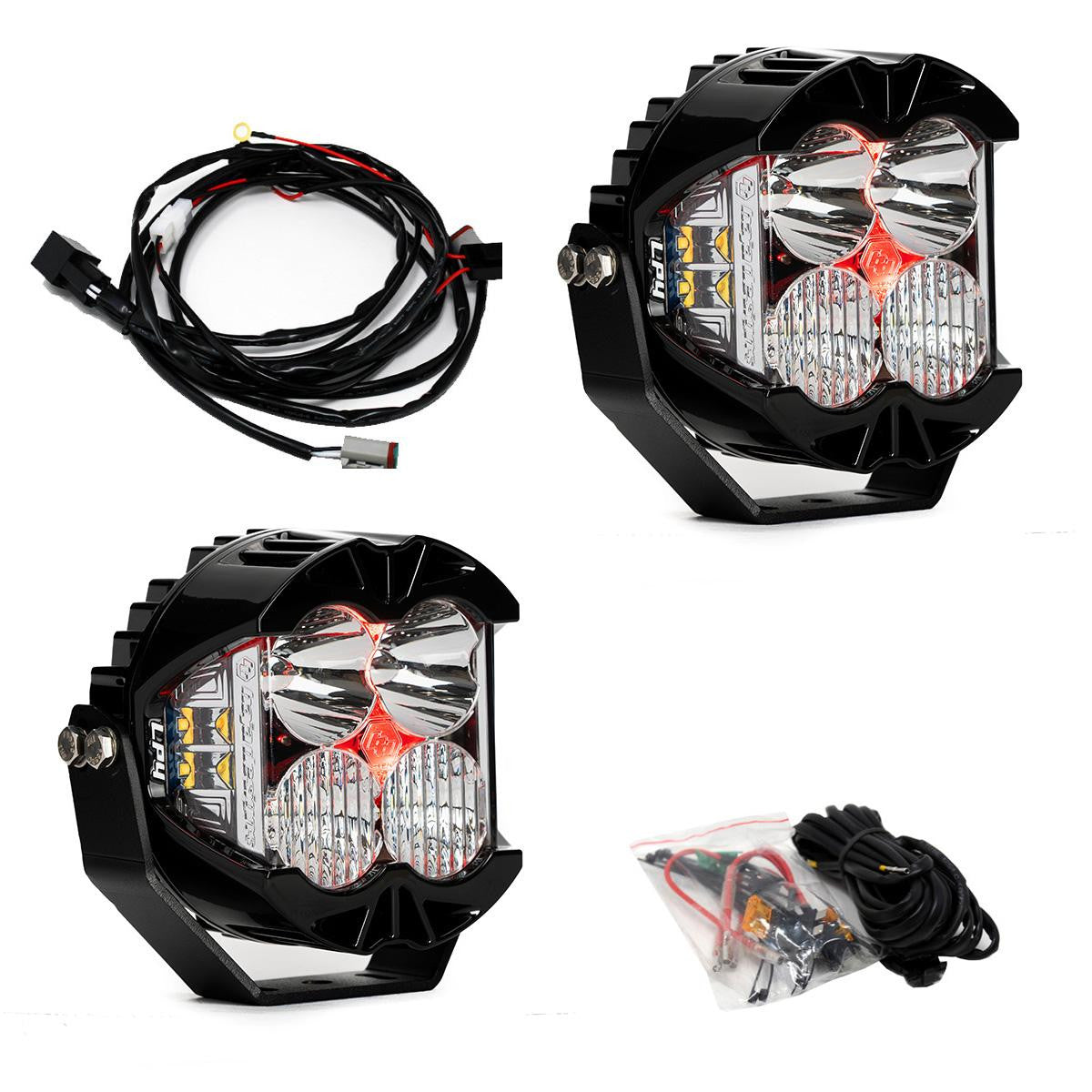

LP4 Pro LED Auxiliary Light Pod Pair
Compact power, full peripheral coverage
The Baja Designs LP4 Pro is the smallest light in the LP family, yet it delivers 8,750 lumens of total output and a 200-degree spread of usable LED light, making it one of the most capable auxiliary pods in its class.
FREE delivery, Australia-wide
Shopping for work? You could claim up to 30% for tax purposes on your business order. Terms and conditions apply. Please check with your accountant.
Smallest LP. Biggest attitude.
The LP4 sits at the compact end of the Baja Designs LP line-up, but Baja Designs refused to compromise on performance to get there. You still get the full suite of technology found in the larger LP siblings, packaged into a pod that fits where others simply cannot.
At the heart of the LP4 is Baja Designs' patented Integrated Peripheral Technology (IPT), which dedicates 1,700 lumens specifically to peripheral illumination. That means 200 degrees of usable light coverage, filling in the edges of your scene rather than leaving a narrow tunnel of forward throw.
To keep that output consistent under hard use, the LP4 uses Baja Designs' proprietary Direct Ducted Cooling (DDC) system. Air draws in through the front of the housing and flows directly over the rear heat sinks, dramatically improving thermal management and long-run performance.
Built-in tech, not bolted on.
INTEGRATED PERIPHERAL TECHNOLOGY (IPT)
Baja Designs' patented IPT dedicates 1,700 lumens to peripheral lighting, spreading usable light across a full 200-degree arc so you see threats and terrain at the edges, not just dead ahead.
DIRECT DUCTED COOLING (DDC)
Proprietary DDC channels incoming air through the front of the housing and directly over the rear heat sinks. The result is significantly improved cooling capacity that keeps output stable over long stints.
AMBER DAYTIME RUNNING LIGHT
An integrated amber DRL means the LP4 covers both your night-driving and daytime visibility needs in a single unit, without needing separate auxiliary running lights.
Installation overview.
CHOOSE YOUR POSITION
Select a mount point that gives the LP4 pods a clear forward and peripheral light path. Bull bar ends, A-pillar mounts and roof rack leading edges are all common choices.
SECURE THE PODS
Use the included mounting hardware to fix the pods to your chosen bracket or bar. Adjust the aim angle before fully tightening so you can dial in beam direction.
WIRE TO A SWITCHED CIRCUIT
Run the harness to a suitable relay-switched circuit or Baja Designs wiring harness. Connect the DRL and main beam wires as directed in the included instructions.
TEST AND ALIGN
Power on the lights in a safe area, confirm DRL backlight function, then make any final aim adjustments before heading out.
