Rear View Mirror Camera Reverse System OEM-style mirror with integrated reverse display
Replace your factory rear-view mirror with an integrated LCD reverse camera system, designed to improve rear visibility and safety in your LandCruiser without changing the look of your cabin.
or 4 interest-free payments of $49.75 with Shop Pay & Afterpay
Item code: LC70-RV-MIR
Australian Owned and Operated.Australian Owned Certified · AO 08314
Clean looks, better rear vision.
Factory rear-view mirrors leave you guessing when reversing a LandCruiser, especially with a towball, canopy or rear bar reducing your sightlines. A dash-mounted monitor or suction-cup screen solves the visibility problem but creates cabin clutter that doesn't belong in a well-kitted vehicle.

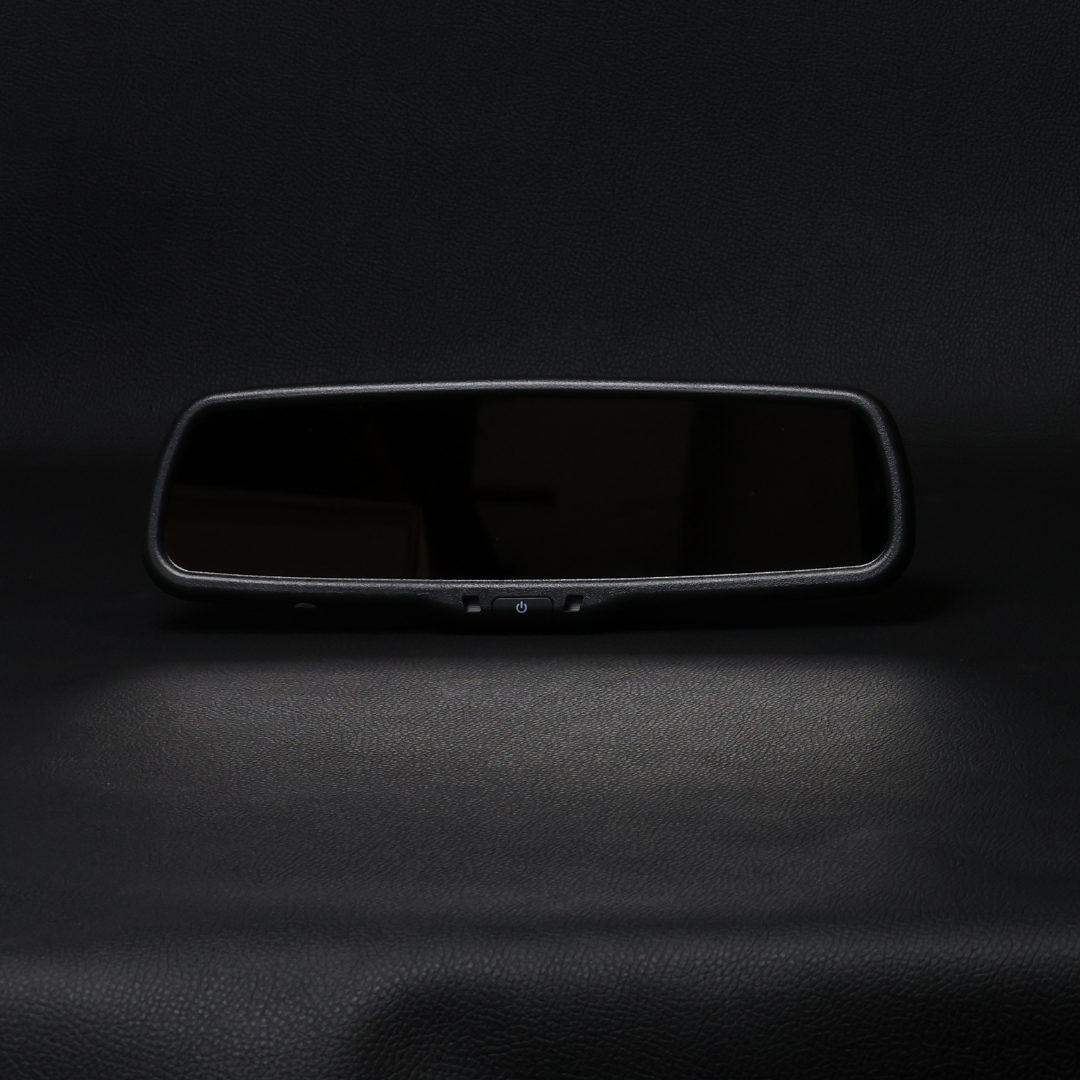

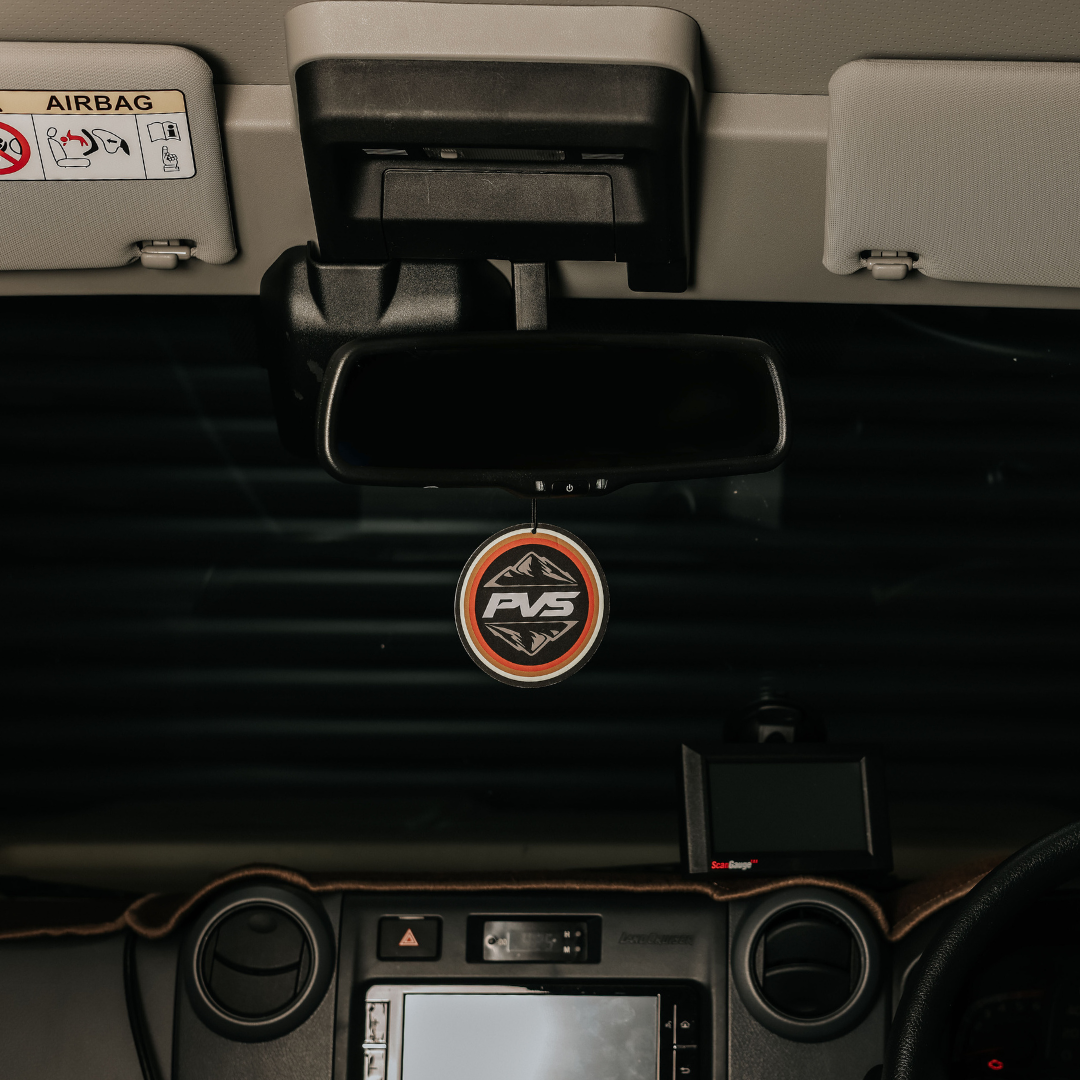

This system replaces your existing mirror with one that hides an LCD display inside the glass. The screen stays invisible until you select reverse, then switches on automatically to show a wide-angle view from the included waterproof camera. When you're back in drive, it goes back to looking like a standard mirror.

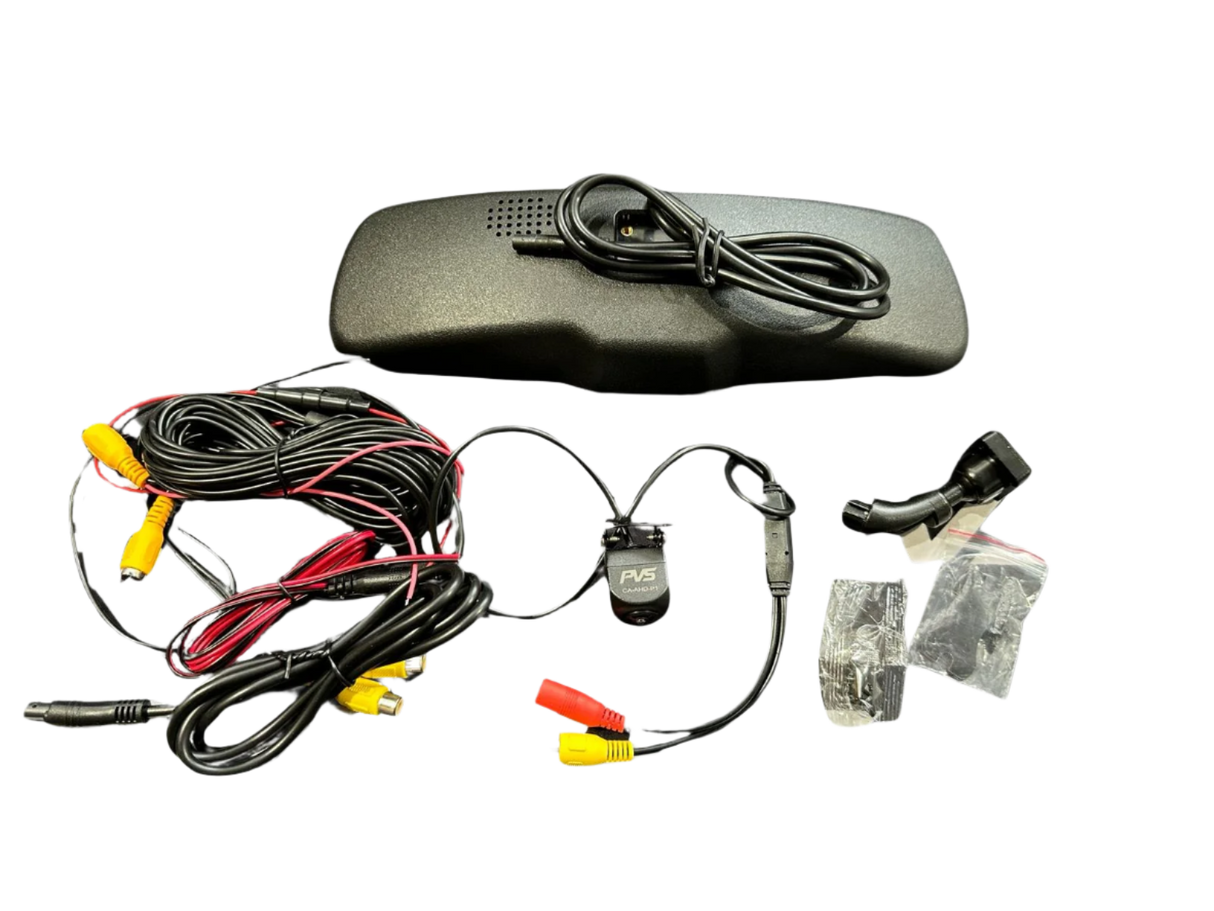

The kit includes the replacement mirror, reverse camera, full wiring harness, and a mounting bracket suited to factory-style Toyota mirror mounts. Camera placement is flexible, above the number plate, on a rear bar, or on the tailgate, depending on your setup.
What's in the kit.
INTEGRATED LCD MIRROR
The LCD display sits inside the mirror glass and is only visible when reverse gear is selected, keeping your cabin looking stock at all other times.
WIDE-ANGLE REVERSE CAMERA
The included camera is waterproof and wide-angle, built to handle dust, mud and rain across off-road and touring use.
COMPLETE WIRING HARNESS
Power leads, RCA video cable and all necessary connectors are included. The system connects to your reverse light circuit to trigger the display automatically.
Vehicle fitment.
Installation overview.
MOUNT THE MIRROR
Remove your factory mirror and fit the replacement using the included mounting bracket, which is designed to suit standard Toyota-style mirror mounts.
POSITION THE CAMERA
Mount the reverse camera above the number plate, on a rear bar, or on the tailgate. Run the RCA video cable from the camera to the mirror using the supplied harness.
CONNECT THE WIRING
Use a 12V test light to locate the reverse light trigger wire. Connect the system's power lead to trigger the display automatically whenever reverse gear is selected.
