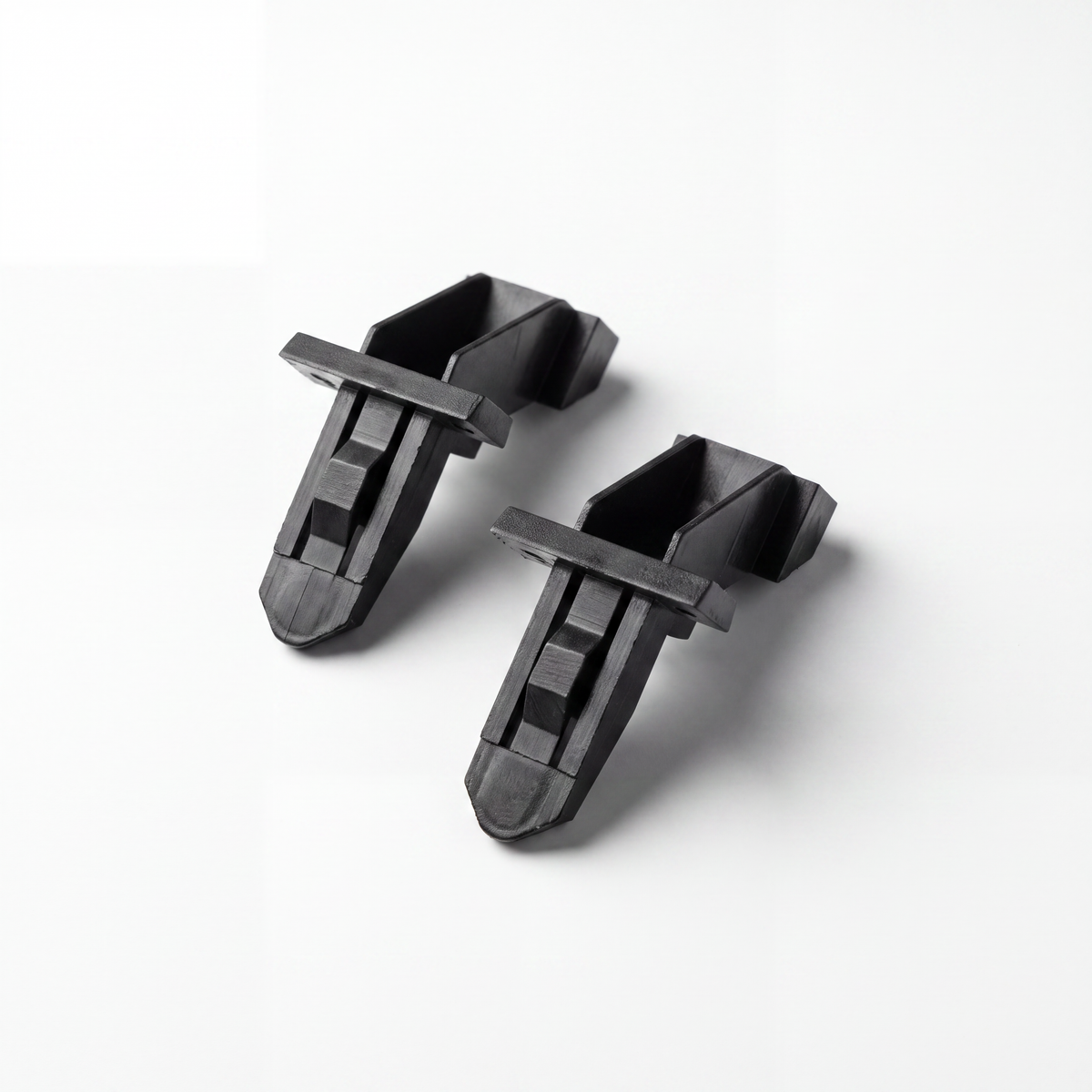

Headunit Lower Mounting Clips (Pair) Replacement clips for MK3 and MK4 multimedia headunits
Replacement lower mounting clips for PVS MK3 and MK4 multimedia headunits, supplied as a pair. If a clip breaks or goes missing during installation, order these rather than sending the whole unit back.
or 4 interest-free payments of $4.99 with Shop Pay & Afterpay
Item code: PVS-HU-LOWERCLIP-MK3MK4
Australian Owned and Operated.Australian Owned Certified · AO 08314
Keep your headunit seated firmly.
The lower clips hold the bottom edge of the headunit into the dash cage. Without them seated correctly, the bottom of the unit can sit loose or gradually work forward over time, which is not something you want on a corrugated track.
Most broken lower clips come from the same install mistake: hooking the top two clips first, then rolling the bottom edge in. That loads the entire weight of the unit through the bottom pair alone and snaps them. The correct method is to sit the headunit square to the cage and push it straight in so all four clips engage at once.
If you have broken a clip, pick up a pair here. Note that other headunit generations use a different clip, so these suit MK3 and MK4 only. If you are unsure which generation you have, reply to your order confirmation and the PVS team will identify it for you.
Simple fix, done in minutes.
SOLD AS A PAIR
You get two clips per order, so you can replace both lower mounts at once and have a spare on hand.
DIRECT REPLACEMENT
Designed to the same spec as the original lower clips. No modification, trimming or adapting needed.
NO WIRING REQUIRED
Fitting is a mechanical push-on job only. The headunit can stay connected throughout, making the swap straightforward.
Installation overview.
REMOVE THE OLD CLIPS
Pull the headunit forward from the dash cage and remove any broken or missing lower clips from the unit.
FIT THE NEW CLIPS
Attach the replacement lower clips to the bottom edge of the headunit.
ALIGN SQUARE TO THE CAGE
Hold the headunit straight and square in front of the dash cage opening, making sure all four clip points line up together.
PUSH STRAIGHT IN
Push the headunit in firmly in one motion so all four clips engage at once. Do not hook the top clips first and roll the bottom in, as this will snap the lower clips under the load of the unit.
