MBQuart 6.5" Discus Component Speaker 2-way component system, DS2-216
The MBQuart Discus DS2-216 is a 6.5" two-way component system that separates tweeter and mid driver for genuine stage control, backed by an external Cauer-topology passive crossover network.
or 4 interest-free payments of $64.75 with Shop Pay & Afterpay
Item code: MBQ-DS2-216
Australian Owned and Operated.Australian Owned Certified · AO 08314
Built to sound
right.
The MBQuart Discus DS2-216 is a 6.5" two-way component system that separates tweeter and mid driver for genuine stage control, backed by an external Cauer-topology passive crossover network.

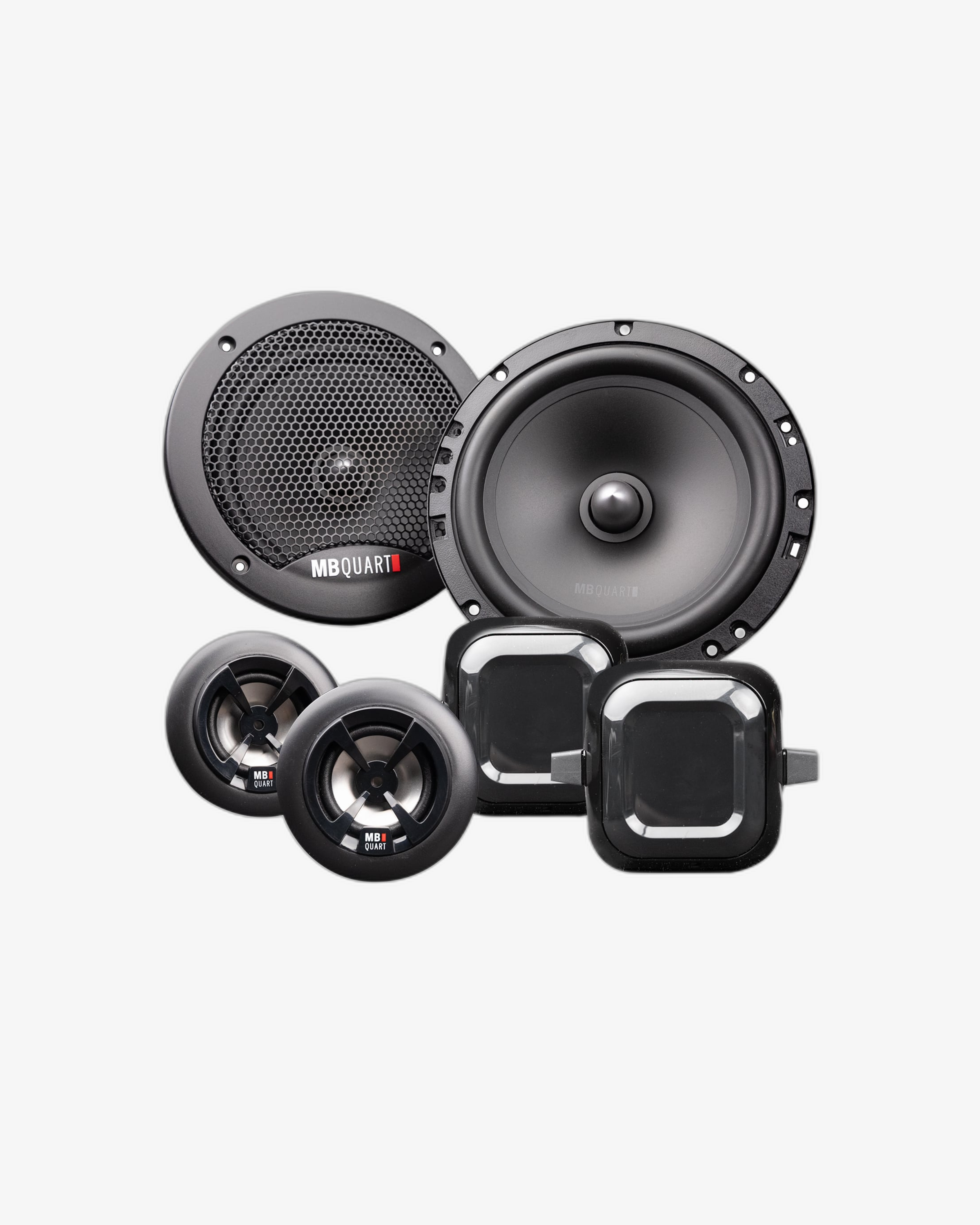

The DS2-216 pairs aluminium inverted dome tweeters with lightweight thermal-formed polypropylene mid drivers, giving installers the flexibility to position each driver where it works hardest for the listening environment. External passive crossovers running a 12 dB per octave Cauer-topology slope keep the hand-off between drivers clean and phase-coherent. Pure copper voice coils wound on Kapton formers manage heat efficiently during sustained high-power use, while butyl rubber surrounds bonded with high-temperature adhesive keep the cone assembly stable across the temperature swings a 70 Series cabin sees on a long run. Heavy gauge steel frames and ferrite magnet motors round out a build that is straightforward to install and built to last.
Three things that matter.
Cauer-Topology Crossover Network
The external passive crossover uses a Cauer-topology filter design for a steeper, more precise 12 dB per octave roll-off compared to a standard Butterworth network, reducing driver overlap and keeping the midrange and tweeter bands clearly separated.
Aluminium Inverted Dome Tweeter
An aluminium inverted dome diaphragm delivers accurate, low-distortion high-frequency reproduction with a controlled dispersion pattern, and the separate tweeter housing lets you angle it directly toward the listening position rather than being locked to the door panel.
Kapton Former Voice Coil
The pure copper voice coil is wound on a Kapton former, a material chosen specifically for its ability to dissipate heat rapidly away from the gap, sustaining rated power handling during extended high-volume use without thermal compression.
Full specs.
Speaker Size
6.5 in
Configuration
2-Way Component
RMS Power Handling
70 W
Peak Power Handling
140 W
Impedance
4 Ω
Sensitivity
88 dB
Frequency Response
55 Hz - 20 kHz
Crossover Slope
12 dB / Octave
Crossover Topology
Cauer (external passive)
Tweeter Type
Aluminium inverted dome
Cone Material
Thermal-formed polypropylene
Surround Material
Butyl rubber
Voice Coil
Pure copper on Kapton former
Frame
Heavy gauge steel
Magnet Type
Ferrite
Mounting Cutout
5.59 in
Outside Diameter
6.5 in
Mounting Depth
2.12 in
Connector Type
Spade connectors or solder; tinsel leads
Colour
Black
Warranty
2 Years
What's included.
94mm Speaker/Tweeter Mounts To Suit 70 Series LandCruiser | Pair
Pro Plug n Play Component Speaker Kit to suit Toyota 70 Series LandCruiser (2017-2026)

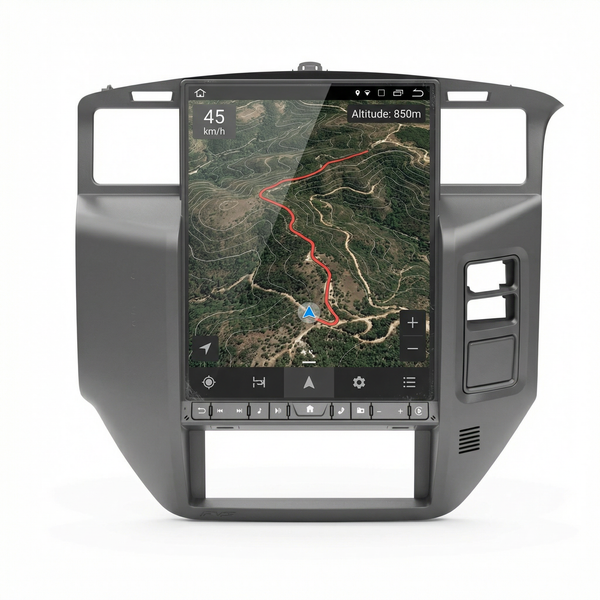

12.1" Pro Snapdragon Multimedia Headunit to suit Nissan Y61 GU Patrol 2004-2016
