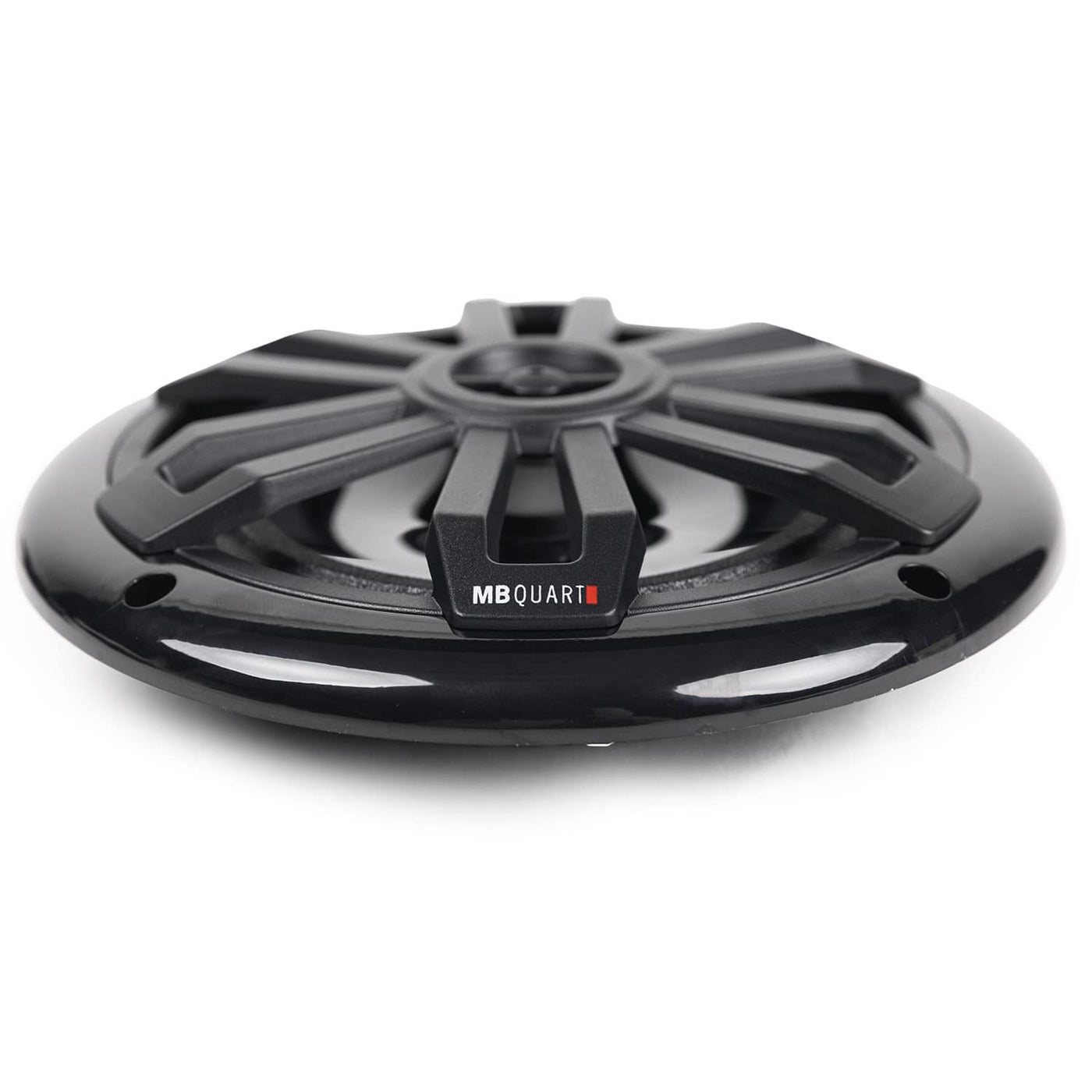

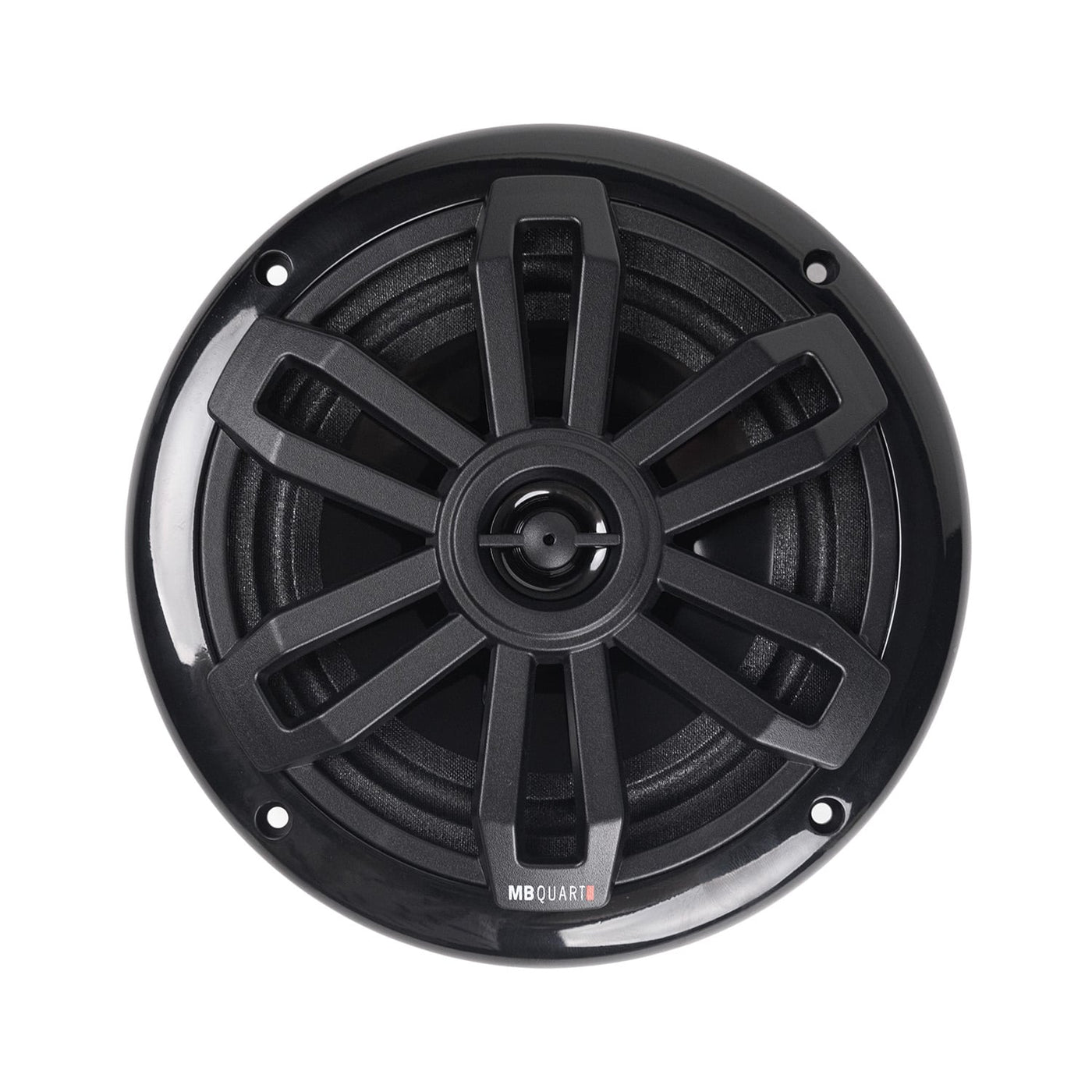

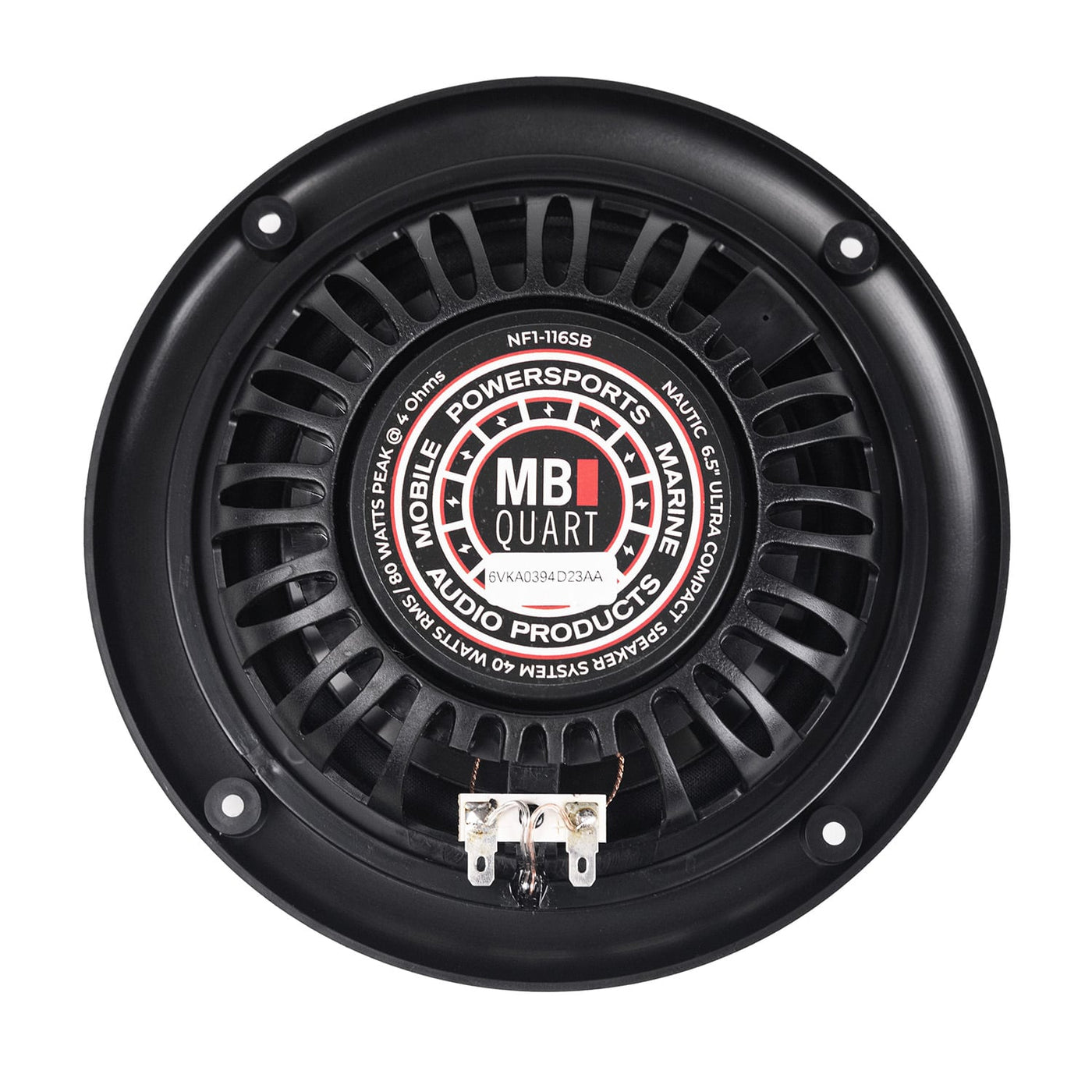

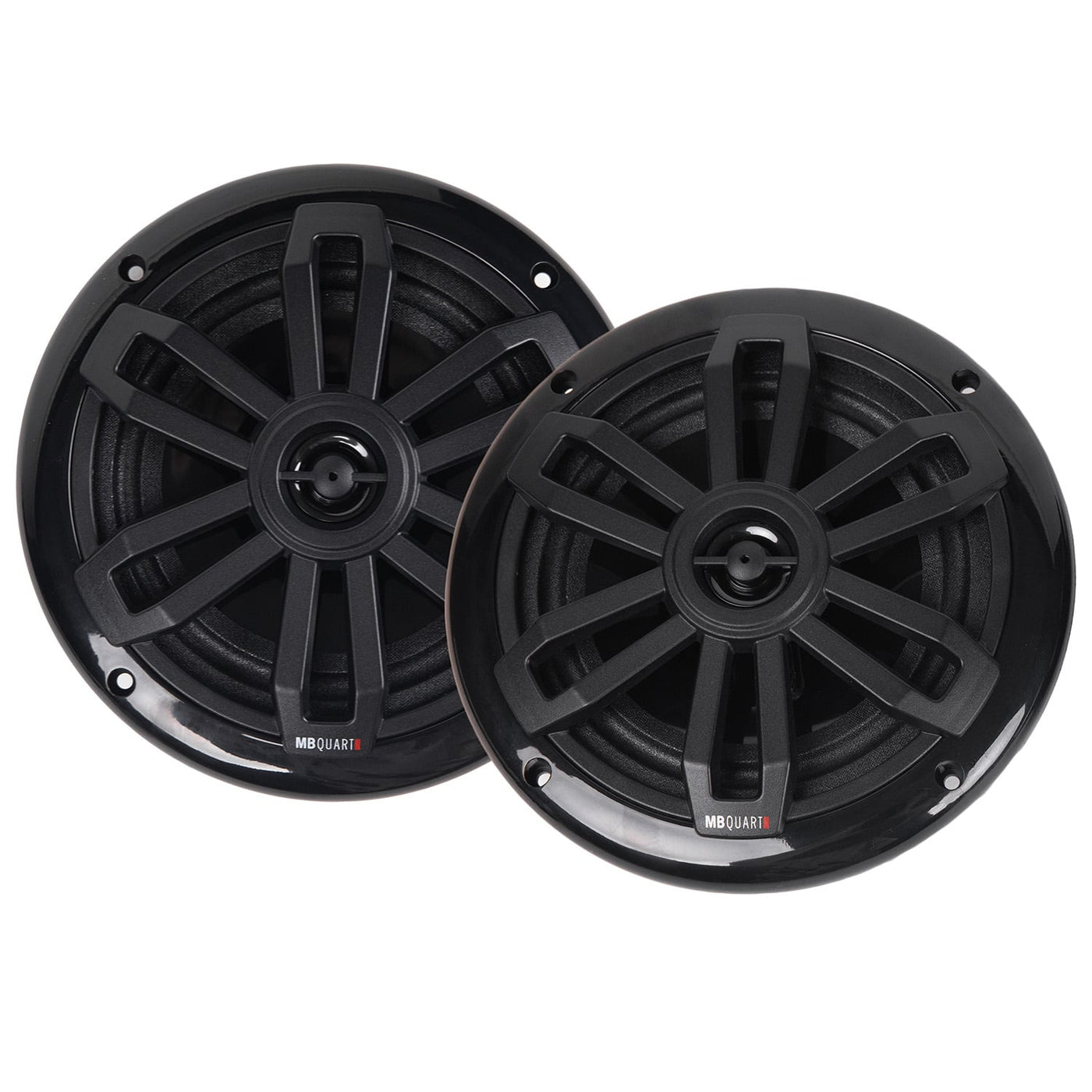

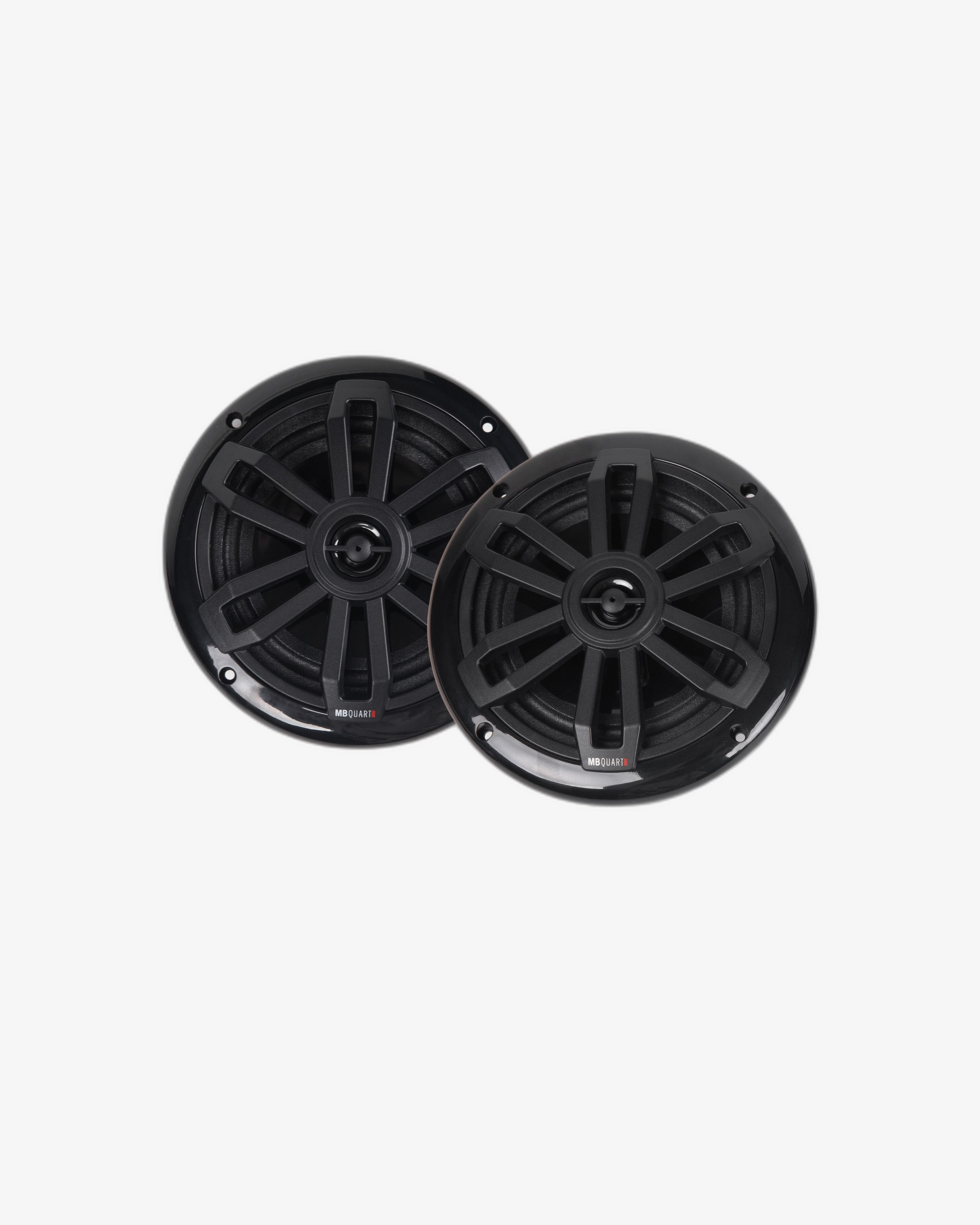

MBQuart 6.5" 2-Way Coaxial Slim Fit Nautic Formula Speaker (Black)
Overview
MBQuart 6.5" 2-Way Coaxial Slim Fit Nautic Formula Speaker (Black).
Marine-grade 6.5" 2-way coaxial speaker with an integrated 0.75" composite dome tweeter and IPX67 rating. Shallow 1" mounting depth makes it a clean fit on wake towers and tight cabin walls. Black finish.
Key features
Designed for the way you drive.
precision
IPX67 waterproof rating for marine and outdoor use
engineered

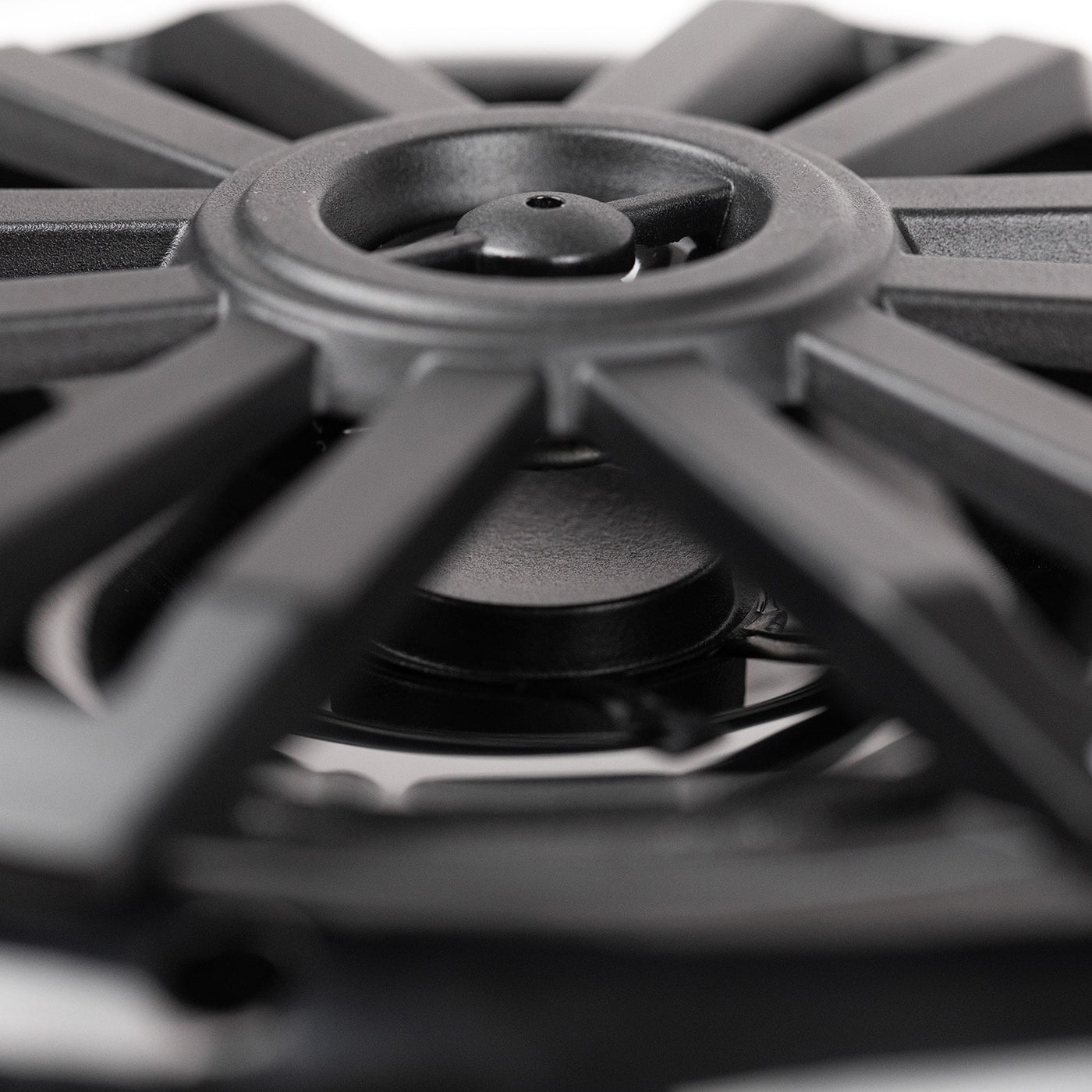

Integrated 0.75" composite dome tweeter
performance
Water-resistant polypropylene cone with UV butyl rubber surround
reliability
Shallow 1" mounting depth for limited install spaces
design
Stainless steel hardware with weather-resistant powder coating
control
UV-treated composite grill integrated into frame
Gallery
A closer look.
Specifications
The detail.
| Specification | Value |
|---|---|
| Speaker Size | 6.5 inches |
| Configuration | 2-Way Coaxial |
| Colour | Black |
| RMS Power Handling | 40 watts |
| Peak Power Handling | 80 watts |
| Impedance | 4 ohms |
| Frequency Response | 35 Hz – 21 kHz |
| Tweeter | 0.75" composite dome |
| Cone Material | Composite polypropylene |
| Surround | UV butyl rubber |
| Voice Coil | High-temperature copper |
| Crossover | 6 dB high-pass |
| Mounting Cutout | 5 inches |
| Outside Diameter | 7 inches |
| Mounting Depth | 1 inch |
| IPX Rating | IPX67 |
| CEA Standard | CEA426B |
| Warranty | 2 Years |
Compatibility
Compatible vehicles.
- Wake tower and flush-mount marine installations
- Suitable for boats, side-by-sides and outdoor powersports
