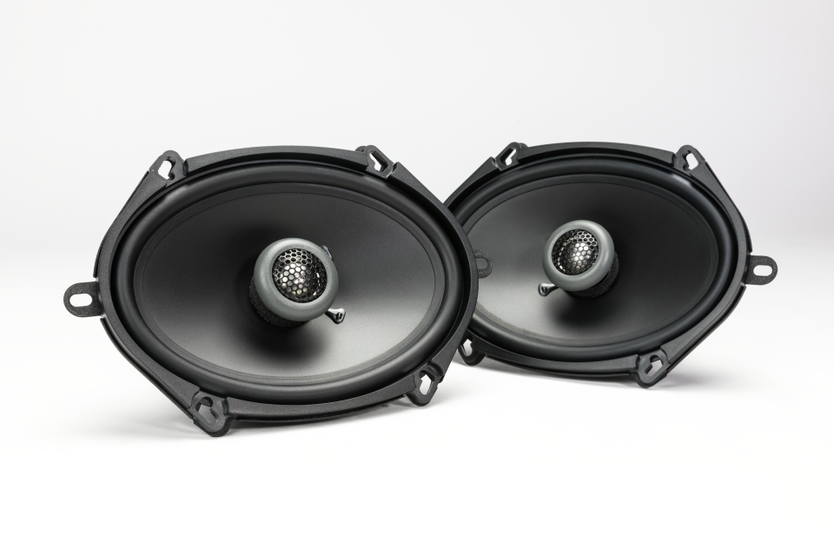

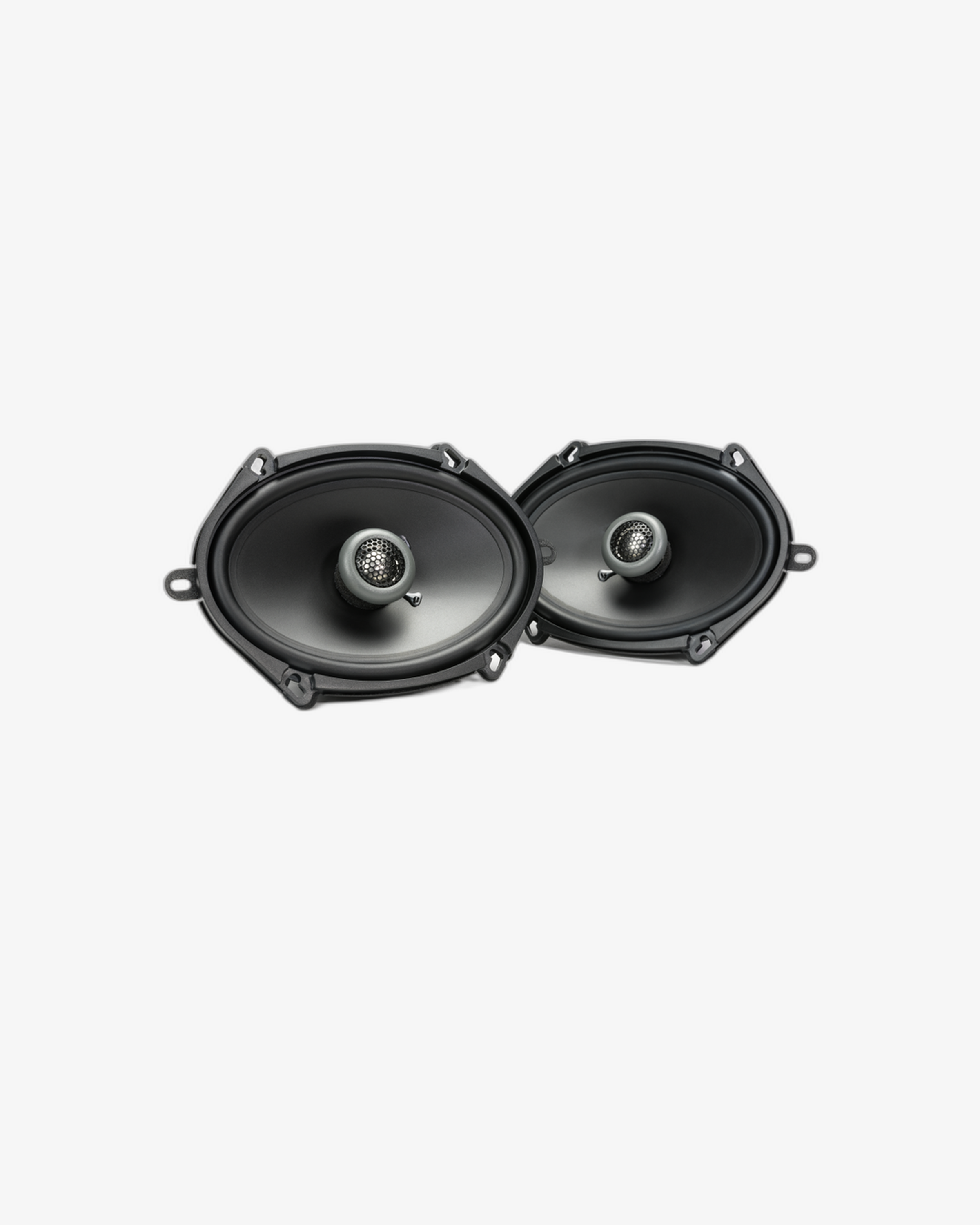

MBQuart 5x7" / 6x8" 2-Way Coaxial Speakers Multi-fit drop-in upgrade for factory door openings
A single speaker that fits both 5x7" and 6x8" factory openings, the MBQuart 2-Way Coaxial delivers aluminium dome clarity and a 2.13" mounting depth built for tight door cavities.
or 4 interest-free payments of $27.25 with Shop Pay & Afterpay
Item code: MBQ-DK2-168
Australian Owned and Operated.Australian Owned Certified · AO 08314
Built to sound
right.
A single speaker that fits both 5x7" and 6x8" factory openings, the MBQuart 2-Way Coaxial delivers aluminium dome clarity and a 2.13" mounting depth built for tight door cavities.

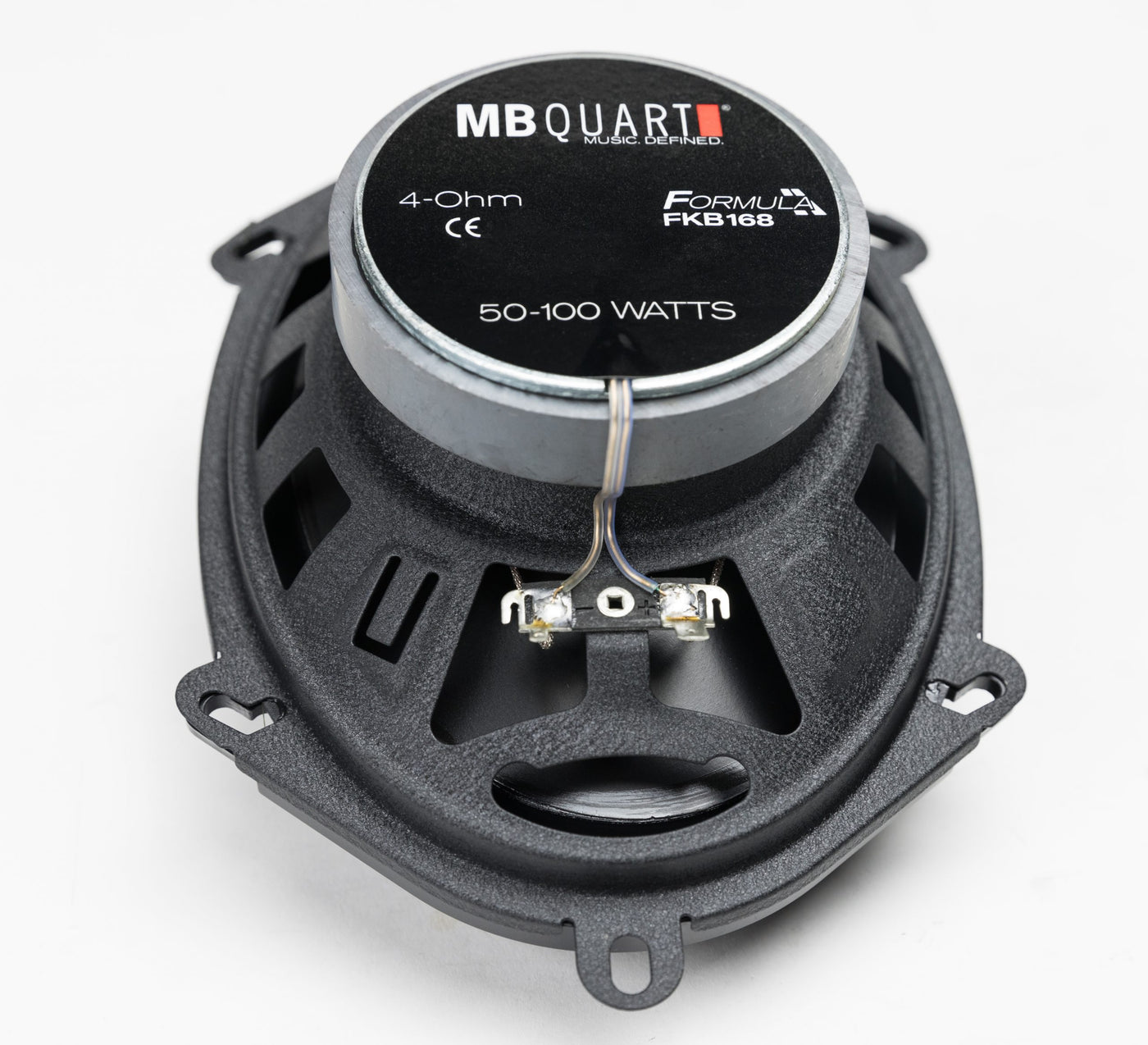

The MBQuart 5x7"/6x8" 2-Way Coaxial is engineered around a multi-fit basket that drops straight into the factory speaker openings found in Ford, Mazda and a wide range of other vehicles, eliminating the need for adaptor rings or custom brackets. A heavy gauge progressive-die stamped steel frame and ferrite magnet motor keep the assembly rigid and magnetically efficient without adding unnecessary bulk. Aluminium dome tweeters cross over at 6 kHz via a 12 dB slope, pairing with butyl rubber surrounds on the woofer cone for long-term durability in demanding environments. At just 2.13" deep, the speaker slides into shallow door cavities where full-depth units simply will not go, and flexible spade or solder connections with tinsel leads make installation straightforward in any configuration.
Three things that matter.
Genuine Multi-Fit Basket
One speaker, two opening sizes: the basket is engineered to seat correctly in both 5x7" and 6x8" factory cutouts, so a single part number covers a broad range of Ford, Mazda and compatible vehicles without adaptors.

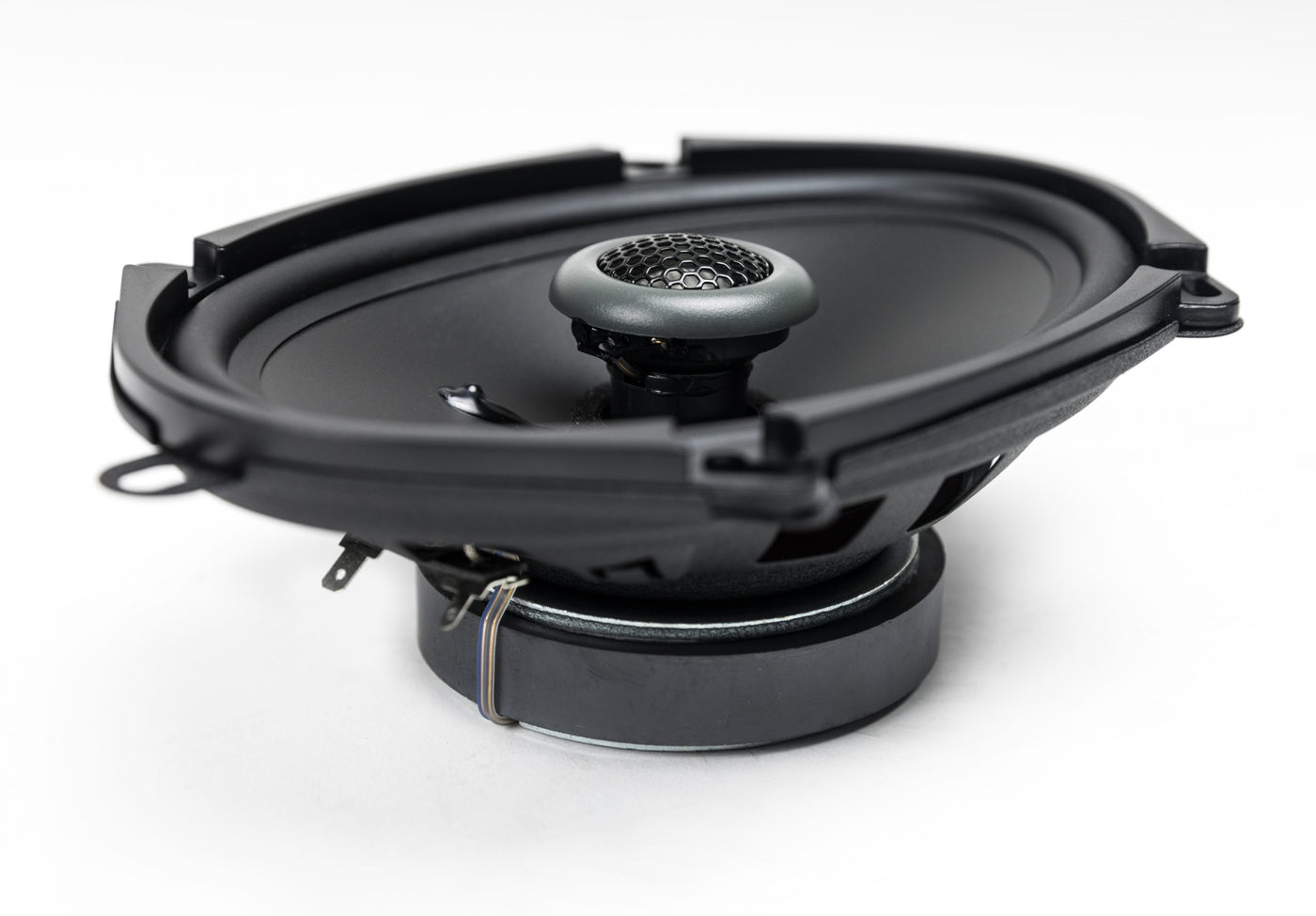

2.13" Shallow Mounting Depth
At only 2.13" deep, the speaker fits door cavities that defeat conventional coaxials, making it a practical choice for vehicles with limited clearance behind the door skin.
Aluminium Dome Tweeter with Butyl Rubber Surround
The aluminium dome delivers crisp high-frequency detail, while the butyl rubber surround on the woofer resists UV, heat and moisture for reliable performance over the long term.
Full specs.
Speaker Size
5x7" / 6x8"
Configuration
2-Way Coaxial
RMS Power Handling
100 W
Peak Power Handling
200 W
Maximum Power
250 W
Impedance
4 Ω
Sensitivity
88 dB
Frequency Response
46 Hz - 20 kHz
Crossover Slope
12 dB at 6 kHz
Mounting Cutout
5.67 in
Outside Diameter
10.35 x 7.20 in
Mounting Depth
2.13 in
Frame Material
Heavy gauge progressive-die stamped steel
Tweeter Material
Aluminium dome
Surround Material
Butyl rubber
Magnet Type
Ferrite
Connections
Spade or solder with tinsel leads
Colour
Black
Warranty
2 years
Hear the
difference.
Add it to your build, or browse the full MBQuart range to match speakers, components, subs and amplifiers.
