Snorkel Kit
Roof-level air intake for the Jimny

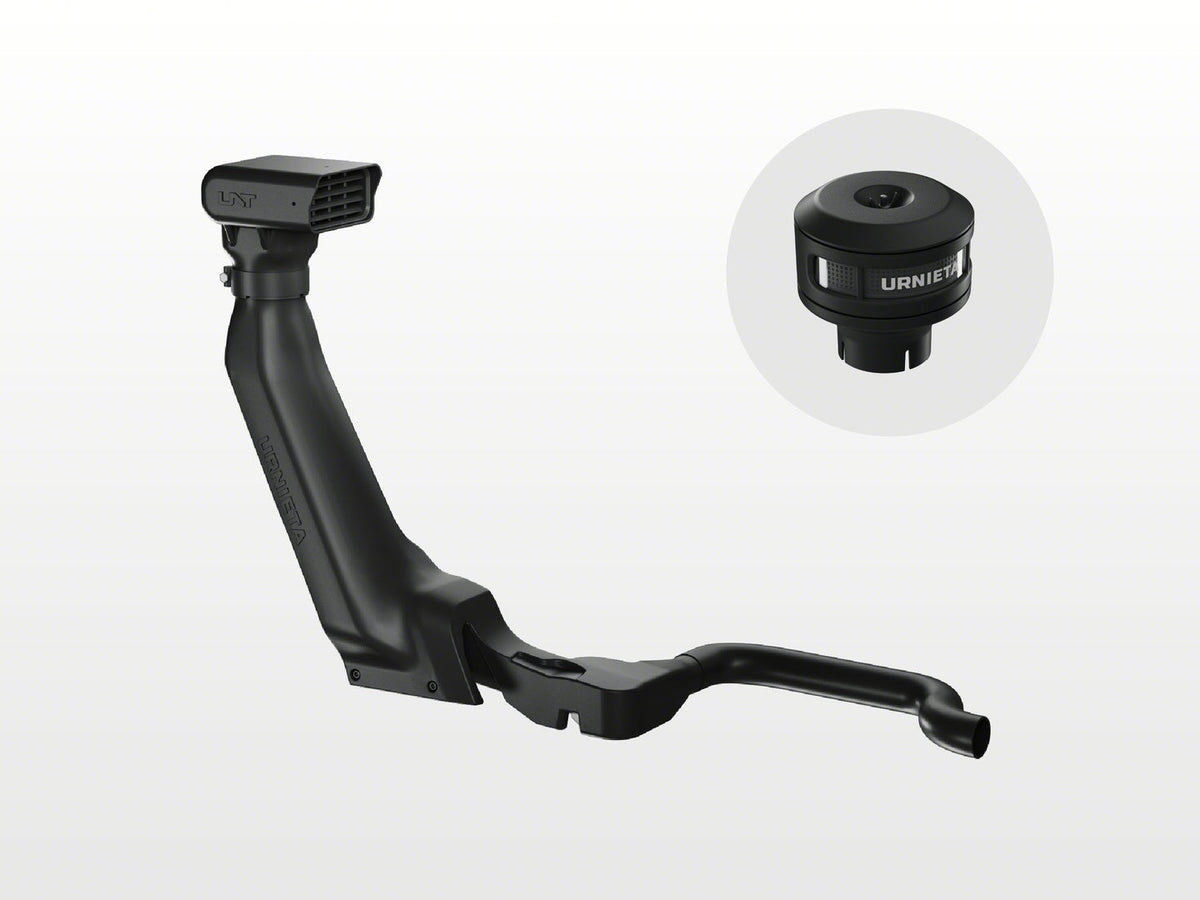

The URNIETA SALADO Snorkel Kit is engineered for the Jimny JB74 and JC74. You get two interchangeable heads, no body modification and a silicone intake hose, with design-led fitment and high-end build quality.
Item code: URN-SAL-SNK-JIM
In high demand. We're working through a backlog of orders on this range, so this item may dispatch one to two weeks later than usual.
12-Month Australian Warranty.Backed by PVS Automotive, Sydney based support. Tax Deductible for Business. GST claimable if you are registered.Often fully deductible as a business expense. Check with your accountant.
Australian Owned and Operated.Australian Owned Certified · AO 08314
Air intake where it belongs.
The Jimny's standard air intake sits low in the engine bay. On a river crossing or a dusty track, that's where water and fine dirt reach your engine.
This snorkel kit moves the intake up to roof level by replacing the original hood trim panel. There's no body cutting and no intake system rework. The Standard Head suits high-water crossings and deep mud. The Pre-Cleaner Head suits sandstorms and dust roads.
Built for the track.
TWO INTERCHANGEABLE HEADS
The Standard Head is for high water, deep mud and clean air. The Pre-Cleaner Head uses cyclonic airflow to spin heavy particles out before they reach the filter. Swap between them to suit the terrain.
NO BODY MODIFICATION
It replaces the original hood trim panel. The factory panel comes off and the snorkel goes on.
SILICONE INTAKE HOSE
Rated for -30°C to +60°C. It holds its shape and seal across temperature extremes.
Vehicle fitment.
Installation overview.
PREPARE THE VEHICLE
Remove the original hood, the cowl (rain) panel and the right-side A-pillar corner cover. Then remove the original air intake head.
MOUNT THE BODY
Fit the snorkel main body onto the fender with the supplied mounting screws and screw clips.
FIT THE BRACKET
Connect the corrugated tube to the snorkel with the clamps, then fit the snorkel bracket. Keep the tube clear of the A/C lines.
FIT THE HEAD
Fit the snorkel head with the special clamp, then tighten all clamps and screws.
Spec it
your way.
Not sure which setup suits your build? Get fitment advice, install guides, or talk to the PVS team before you buy. We are Sydney based and here to help.
