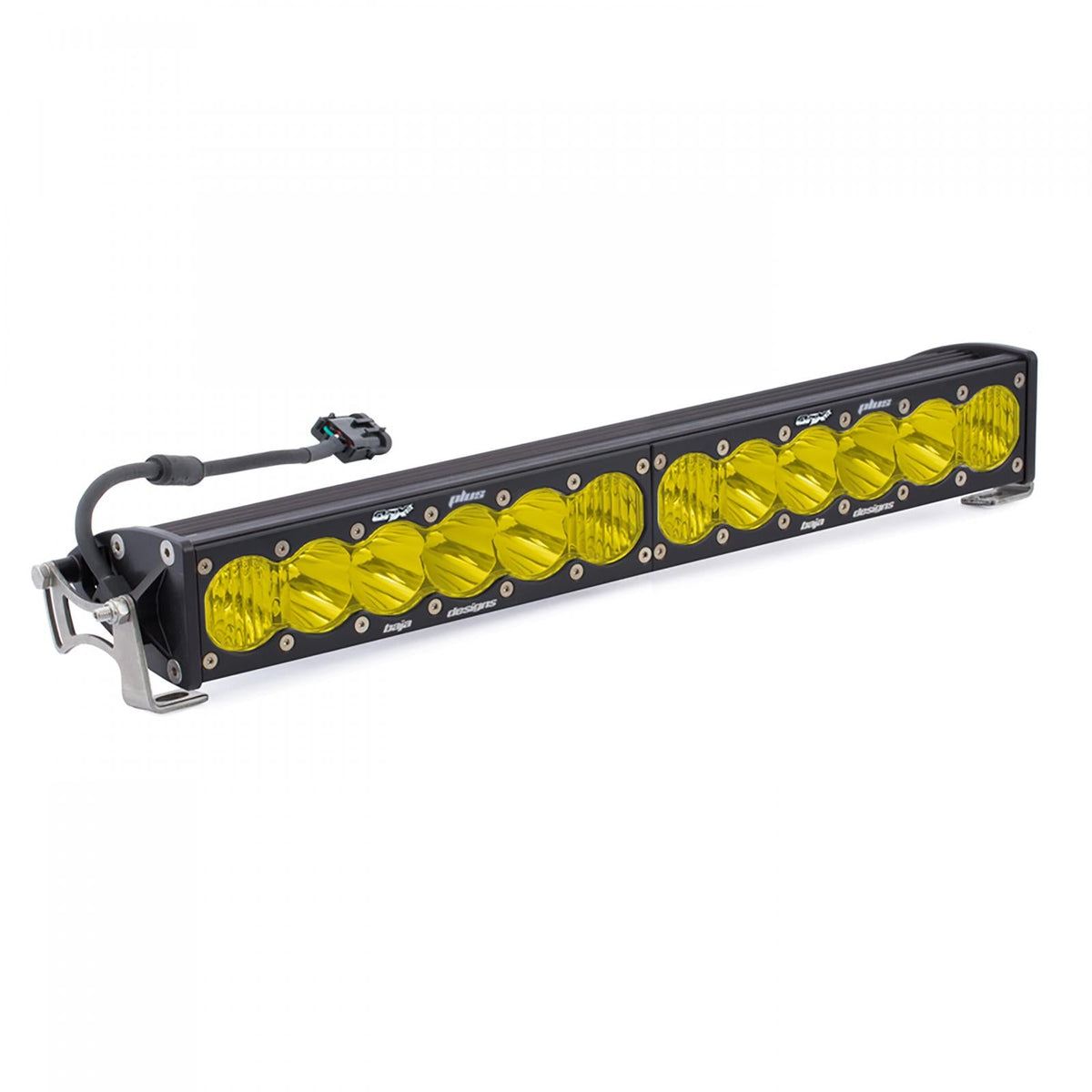

OnX6+ 20" Amber LED Light Bar
Drive Combo beam, straight bar
The Baja Designs OnX6+ is a race-proven, mil-spec LED light bar built for serious off-road performance. The 20-inch amber Drive Combo bar delivers high-output illumination with superior efficiency, backed by a Lifetime Limited Warranty.
Item code: 452013
FREE delivery, Australia-wide
Shopping for work? You could claim up to 30% for tax purposes on your business order. Terms and conditions apply. Please check with your accountant.
Built for the toughest trails.
The OnX6+ was engineered from the ground up for competitors and explorers who refuse to compromise. Baja Designs integrates their trademarked high-speed spot reflectors with next-generation LED technology, giving you increased performance, versatility and efficiency whether you are navigating a tight bush track or pushing hard through the night stages of a desert race.
Vertical beam adjustments can be made and locked in at any mounting position, so you always have the best pattern in front of the vehicle no matter where the bar sits. The exclusive MoistureBlock technology keeps the unit waterproof, rain proof and submersible, while the mil-spec aluminium housing is designed to absorb the punishment that serious off-roaders dish out.
Baja Designs' uService technology lets you customise your beam pattern or replace damaged lenses without voiding the warranty. Every LED is driven at 100 percent via CopperDrive, and the 5000K daylight output reduces driver fatigue with a natural colour rendering. Amber lens option is ideal for cutting through dust, rain and fog on the trail.
Why the OnX6+ leads the field.
MOISTUREBLOCK
Exclusive sealing technology makes the OnX6+ fully waterproof, rain proof and submersible, keeping optics and electronics protected in the worst conditions.
USERVICE
Swap beam patterns or replace damaged lenses in the field without voiding your warranty. The OnX6+ is built to be serviced, not replaced.
COPPERDRIVE
Every LED is driven at 100 percent capacity for maximum output and consistent performance across the full life of the bar.
Installation overview.
CHOOSE YOUR MOUNT POSITION
Select a solid mounting point on the bull bar, roof rack or bumper. The included brackets suit most common applications.
FIT THE BRACKETS
Bolt the supplied mounting brackets to the bar and to your chosen mount point, leaving fasteners slightly loose to allow beam angle adjustment.
ADJUST THE BEAM ANGLE
With the light powered up, adjust the vertical tilt to place the Drive Combo beam pattern where it works best in front of your vehicle, then lock the fasteners to the specified torque.
CONNECT THE WIRING HARNESS
Route and connect the separately purchased OnX6+ wiring harness (part 640115 for 10 to 20 inch bars) to the bar's connector and your vehicle's power supply, following the harness instructions.
