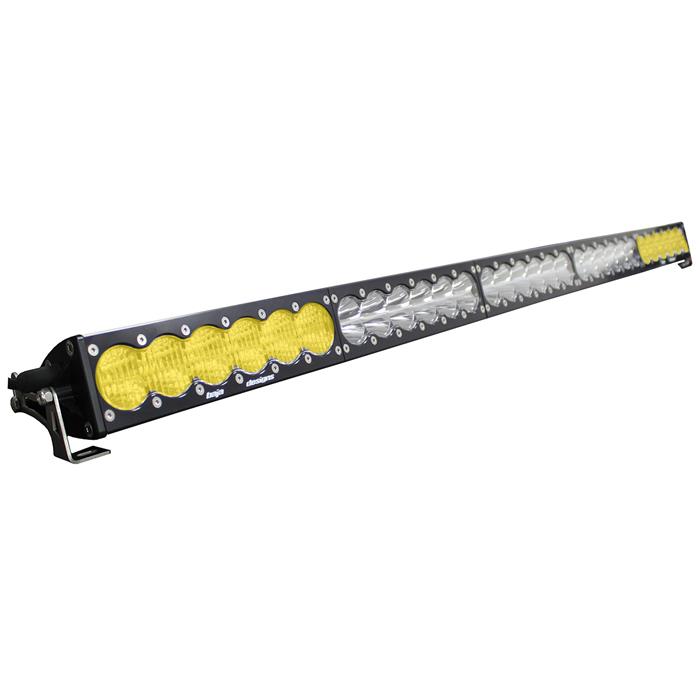

OnX6 50" Dual Control LED Light Bar
Drive/Combo beam, Clear & Amber, independent section control
The Baja Designs OnX6 Dual Control LED Light Bar gives you independent command over the inner and outer light sections, putting white and amber output on separate switches so you can run exactly the beam you need for any condition.
Item code: 465014
FREE delivery, Australia-wide
Shopping for work? You could claim up to 30% for tax purposes on your business order. Terms and conditions apply. Please check with your accountant.
Two lights, one bar.
Most light bars force a compromise: white or amber, spot or flood. The OnX6 Dual Control ends that trade-off. A second power cord and dedicated switch lets you run the inner and outer sections independently, so you can fire up the amber alone in dusty or foggy conditions, bring in the white Drive/Combo beam on open tracks, or run both together when you need maximum reach.
Baja Designs' CopperDrive technology drives every LED at 100 per cent rated current, maximising output and consistency across the bar's full 50-inch span. ClearView optics direct all that light exactly where you need it, while MoistureBlock sealing makes the unit fully waterproof and submersible. The 5000K colour temperature keeps things close to natural daylight, reducing eye strain on long nights behind the wheel.
Backed by an industry-first 30-Day Money Back Guarantee and a Limited Lifetime Warranty, the OnX6 Dual Control is built to be a long-term part of your rig. The uService programme means lenses and optics can be replaced in the field, protecting your investment well beyond the initial fitment.
Built-in advantages from Baja Designs.
DUAL CONTROL
Independent power cords and switches for the inner and outer sections let you toggle between amber, white, or both at any time without pulling over.
COPPERDRIVE
Every LED is driven at 100 per cent rated current for maximum, consistent output across the full length of the bar.
MOISTUREBLOCK
Fully waterproof, rain-proof and submersible sealing keeps the internals protected no matter what terrain you cross.
Installation overview.
POSITION THE BAR
Mount the bar to your existing bull bar, roof rack or dedicated light bar bracket. Confirm the mounting hardware is torqued to specification before proceeding.
RUN DUAL LOOMS
Route both power cords separately from the bar to the cabin, keeping them away from heat sources, sharp edges and moving parts. Use grommets wherever the looms pass through the firewall.
CONNECT SWITCHES
Wire each loom to its own dedicated switch or relay. This gives you independent control of the clear outer section and the amber inner section from the dash.
TEST EACH SECTION
Power up each circuit individually to confirm correct operation of the amber and white sections before securing all looms with cable ties.
