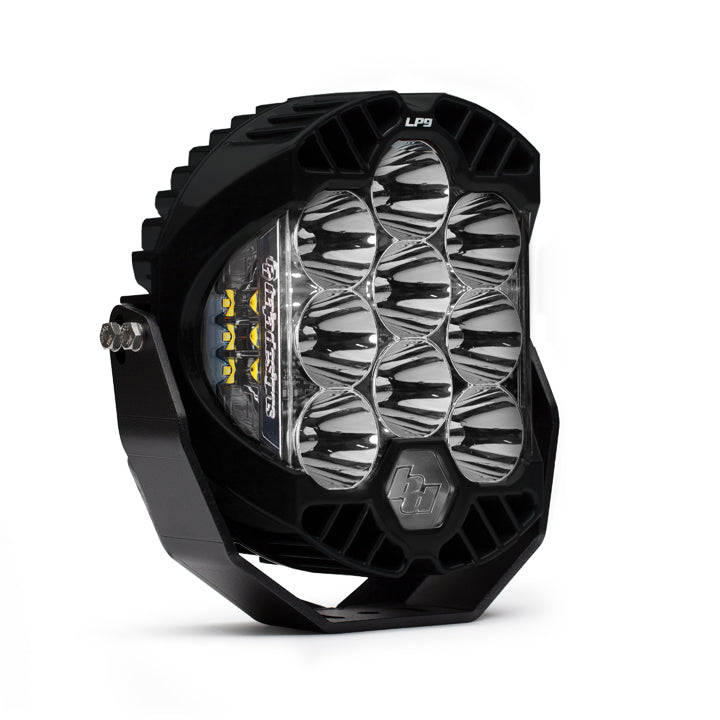

LP9 Sport LED Auxiliary Light Pod
Spot beam, clear lens
The Baja Designs LP9 Sport is a full-size auxiliary LED light pod packing serious technology into a contemporary package, delivering 9,421 lumens at 88 watts from its nine forward-projecting LEDs plus an additional 200-degree peripheral spread courtesy of Integrated Peripheral Technology.
Item code: 350001
FREE delivery, Australia-wide
Shopping for work? You could claim up to 30% for tax purposes on your business order. Terms and conditions apply. Please check with your accountant.
Full-size output, refined design.
The LP9 Sport carries the full LP9 DNA into a sleeker, more contemporary form. Nine forward-projecting LEDs produce a focused spot beam at 9,421 lumens and 88 watts, while six dedicated Integrated Peripheral Technology LEDs add a 200-degree spread of usable light around the pod, filling in the edges that a pure spot beam misses.
Baja Designs' Direct Ducted Cooling keeps thermal performance in check during extended hard use, and CopperDrive ensures every LED is driven at 100 percent for consistent, reliable output. MoistureBlock construction makes the LP9 Sport fully waterproof, rain-proof and submersible, so it handles whatever the track or trail throws at it.
The uService system lets you swap lens patterns and colours in the field without replacing the whole light, extending the life of your investment. Note that the LP9 Sport operates on a simple on/off basis with no hi/lo and does not include the amber backlit feature; those capabilities are found on the LP9 Pro and Racer Editions.
Built around real technology.
INTEGRATED PERIPHERAL TECHNOLOGY
Six dedicated IPT LEDs generate 2,302 lumens across a 200-degree spread, giving you usable light to the sides rather than just straight ahead.
DIRECT DUCTED COOLING
Internal ducted cooling channels manage heat during sustained high-output use, keeping performance consistent when you push the light hardest.
uSERVICE
Replaceable lenses and optics mean you can change beam pattern or refresh worn optics in the field, protecting your long-term investment.
Installation overview.
CHOOSE YOUR MOUNT POSITION
Select a mounting location on your bull bar, roof rack or A-pillar bracket that gives an unobstructed forward or angled field of view for the spot beam.
SECURE THE POD
Attach the LP9 Sport to your chosen bracket using the hardware supplied. Adjust the aim angle before fully tightening.
WIRE TO A SWITCHED CIRCUIT
Run wiring to a relay and fused switched power source. The LP9 Sport operates on a simple on/off function; no hi/lo wiring is required.
VERIFY AIM AND TEST
Power on and confirm beam aim is directed correctly for your application. Adjust as needed, then lock off all fasteners.
