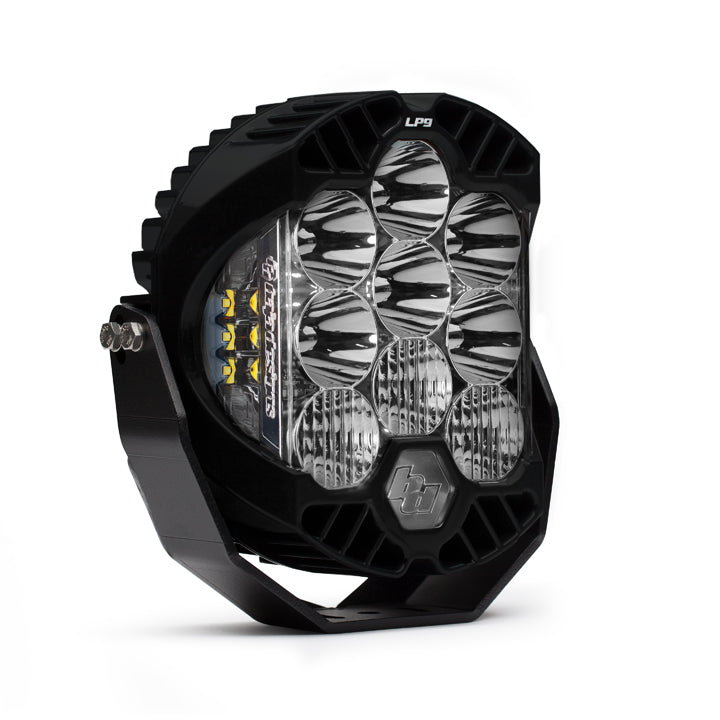

LP9 Sport LED Auxiliary Light Pod
Driving / Combo beam, clear lens
The Baja Designs LP9 Sport is a full-size auxiliary LED pod that packs serious forward throw and a 200-degree peripheral spread into a single, contemporary housing. Built on the proven LP9 platform, it delivers 9,421 lumens from its nine forward LEDs and adds Integrated Peripheral Technology for usable light well beyond the centre beam.
Item code: 350003
FREE delivery, Australia-wide
Shopping for work? You could claim up to 30% for tax purposes on your business order. Terms and conditions apply. Please check with your accountant.
Full-size output, no compromises.
The LP9 Sport is built for enthusiasts who want everything the LP9 platform offers in a clean, modern package. Nine forward LEDs produce a hard-hitting 9,421-lumen beam at 88 watts, while Direct Ducted Cooling keeps the housing thermally stable under sustained, high-stress use so output does not drop off when you need it most.
Integrated Peripheral Technology (IPT) adds six dedicated LEDs that push an additional 2,302 lumens out to a 200-degree arc, illuminating the edges of the trail and roadside hazards that a straight-ahead beam would miss entirely. The result is a light that works as hard at the edges of your vision as it does straight ahead.
CopperDrive ensures every LED runs at 100 percent capacity, MoistureBlock seals the housing against rain, submersion and dust, and uService lets you swap the lens pattern or refresh optics without replacing the whole unit. Note that the LP9 Sport is simple on/off with no hi/lo switching, and the amber backlit feature is not included. Those capabilities are available on the LP9 Pro and Racer Editions.
Built on Baja Designs technology.
INTEGRATED PERIPHERAL TECHNOLOGY
Six dedicated IPT LEDs extend usable light to a 200-degree arc, illuminating wide of the beam centre for better situational awareness on trails and open roads.
DIRECT DUCTED COOLING
An engineered internal airflow path draws heat away from the LEDs under sustained load, protecting output and long-term reliability in demanding conditions.
uSERVICE LENSES
The lens and optics are fully replaceable in the field. Change beam patterns to suit conditions or refresh worn optics without swapping the entire light.
Installation overview.
CHOOSE YOUR MOUNT POSITION
Select a mounting location on your bull bar, roof rack or A-pillar bracket that gives the LP9 Sport a clear forward field of view and does not obstruct airflow around the housing.
SECURE THE POD
Bolt the light to your chosen bracket using the hardware provided. Aim the pod before fully torquing the fasteners so you can fine-tune the beam angle.
RUN AND CONNECT WIRING
Route the supplied wiring loom to your switch or relay, keeping cables away from heat sources and moving parts. The LP9 Sport is simple on/off, so no hi/lo relay or controller is required.
SEAL AND TEST
Secure any exposed connectors, confirm the MoistureBlock seals are correctly seated on the housing, then power up and verify beam pattern and aim before heading out.
