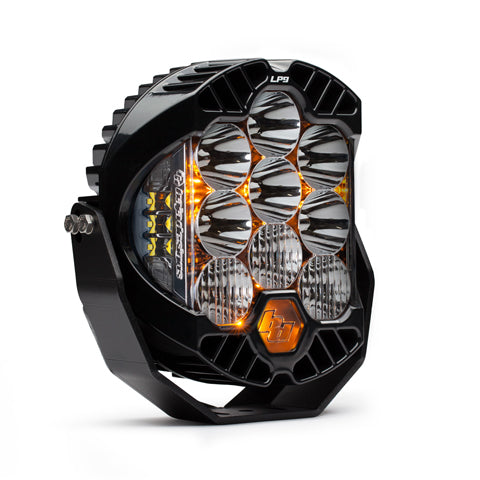

LP9 Pro LED Auxiliary Light Pod
Driving/Combo beam, clear lens
Inspired by Baja Designs' legendary 8-inch La Paz HID, the LP9 Pro is a premium auxiliary light pod packed with advanced LED technology, integrated peripheral lighting and intelligent thermal management for serious off-road performance.
Item code: 320003
FREE delivery, Australia-wide
Shopping for work? You could claim up to 30% for tax purposes on your business order. Terms and conditions apply. Please check with your accountant.
Built around real trail demands.
The LP9 Pro traces its lineage directly to Baja Designs' iconic La Paz HID, carrying that legacy forward with a nine-LED forward array and six additional LEDs dedicated to Integrated Peripheral Technology (IPT). That IPT array delivers a 200-degree spread of usable light, wrapping illumination around the sides of the trail where standard auxiliary lights leave you blind.
Heat is the enemy of LED longevity, so Baja Designs engineered their proprietary Direct Ducted Cooling (DDC) system into the LP9 Pro housing. DDC channels air from the front of the housing directly over the rear heat sinks, dramatically improving cooling capacity and keeping the LEDs running at full performance even during extended use.
The Driving/Combo pattern fits the LP9 Pro with both 42-degree driving optics and 8-degree spot optics in a single pod, giving you smooth, blended coverage across near-field, mid-range and distance lighting zones simultaneously. Three power modes, DRL through to full high beam, mean you always have the right amount of light for the conditions.
What sets the LP9 Pro apart.
IPT PERIPHERAL SPREAD
Six dedicated Integrated Peripheral Technology LEDs add a 200-degree spread of usable light around the primary beam, eliminating the dark edges that traditional auxiliary pods leave on the trail.
DRIVING/COMBO OPTICS
A dual-optic setup combines 42-degree driving and 8-degree spot lenses in one pod. You get smooth light blended across near-field and distance lighting zones without needing a second light.
DIRECT DUCTED COOLING
Proprietary DDC technology routes airflow from the front grille of the housing directly over the rear heat sinks, keeping operating temperatures low and protecting long-term LED performance.
Installation overview.
SELECT MOUNTING POSITION
Choose a position that gives the desired beam angle and keeps the pod protected from direct rock strikes where possible. Common locations include bull bar wings, roof rack fore-rails and A-pillar mounts.
FIT MOUNTING BRACKET
Attach the appropriate Baja Designs bracket or a compatible third-party mount to your bar or rack using the supplied hardware. Ensure the bracket is solid with no flex before proceeding.
CONNECT WIRING HARNESS
Run the wiring harness from the pod back to the battery and switch location, keeping cables away from heat sources and moving parts. Use a fuse rating matched to the harness specification.
AIM AND SECURE
With power connected, aim the pod to your preferred beam angle, then torque the mounting bolts to spec so the light holds its aim on corrugated tracks.
