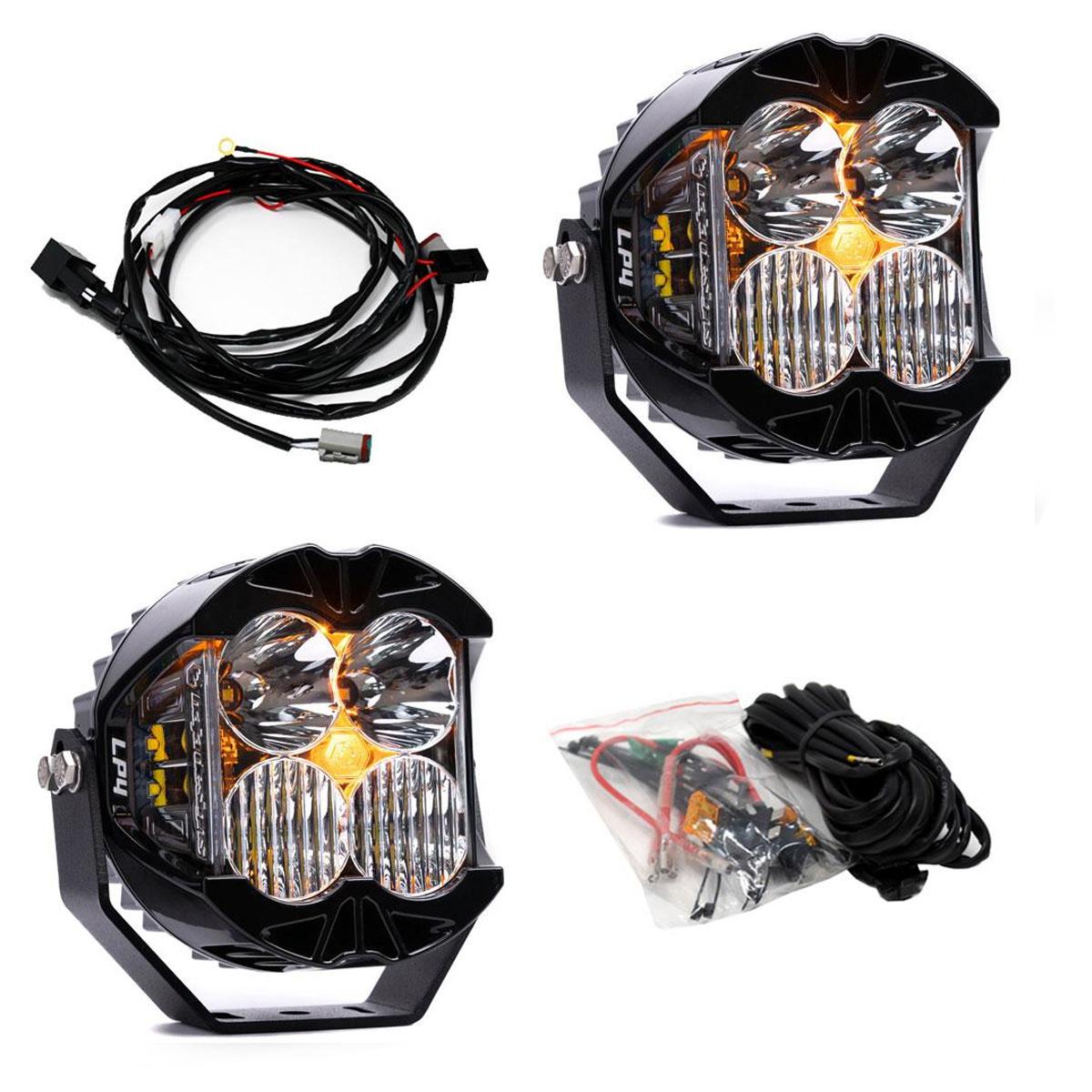

LP4 Pro LED Auxiliary Light Pod Pair
Driving/Combo beam, clear lens, pair
The Baja Designs LP4 Pro is the most compact light in the LP series, delivering 8,857 total lumens with 200 degrees of usable LED coverage. Integrated Peripheral Technology and Direct Ducted Cooling set it apart from ordinary auxiliary pods.
Item code: 297803
FREE delivery, Australia-wide
Shopping for work? You could claim up to 30% for tax purposes on your business order. Terms and conditions apply. Please check with your accountant.
Smallest LP. No compromises.
Most compact lighting pods sacrifice output for size. Baja Designs engineered the LP4 Pro to carry every core technology from the larger LP lights into a smaller housing, so you get the same forward throw, the same peripheral awareness, and the same thermal management, just in a pod that fits tighter mounting positions.
Integrated Peripheral Technology (IPT) dedicates a portion of the output to a 200-degree spread around the vehicle, filling in the blind zones that a pure spot or driving beam leaves dark. Combined with Direct Ducted Cooling (DDC), which channels airflow directly over the rear heat sinks, the LP4 Pro runs efficiently and maintains consistent output on long night drives.
The LP4 Pro also supports red, blue, or green backlight options alongside the original amber, giving you personalisation for shows or photo shoots. Note that coloured backlights are intended for exhibition use only and should not be used on public roads.
Built-in technology.
IPT PERIPHERAL LIGHTING
Integrated Peripheral Technology spreads 1,972 lumens across a 200-degree arc, improving situational awareness beyond the central beam.
DIRECT DUCTED COOLING
DDC channels airflow over the rear heat sinks, boosting thermal efficiency and protecting long-term output consistency.
COPPERDRVE LED DRIVE
CopperDrive technology drives the LEDs at a full 100%, extracting maximum output safely without sacrificing reliability.
Installation overview.
CHOOSE YOUR POSITION
Select a mounting location on your bull bar, roof rack or A-pillar that gives the pods a clear forward and peripheral sightline without obstruction from the bonnet or body panels.
FIT THE BRACKETS
Attach the supplied mounting brackets to the chosen location using appropriate fasteners for your bar or rack material. Ensure the bracket face is level before tightening fully.
MOUNT THE PODS
Secure each LP4 Pro pod to its bracket. Aim the pods to your preferred beam angle before final tightening, accounting for vehicle ride height under load.
WIRE TO A SWITCHED CIRCUIT
Run the wiring harness back to a dedicated switched circuit or relay. Keep wiring clear of heat sources and secure with cable ties at regular intervals to prevent chafing.
