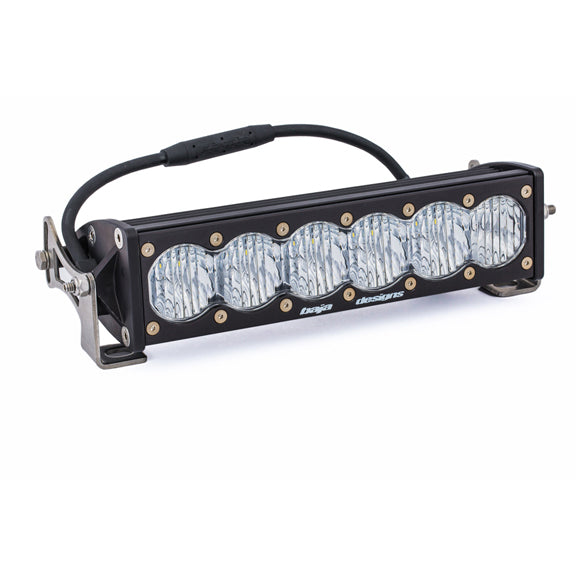

10 Inch OnX6+ Straight LED Light Bar
Wide Corner, Clear Lens
The Baja Designs OnX6+ is the benchmark in off-road LED light bars, combining next-generation LED technology with trademarked high-speed spot reflectors for exceptional output, efficiency and durability across every terrain.
Item code: 451004
FREE delivery, Australia-wide
Shopping for work? You could claim up to 30% for tax purposes on your business order. Terms and conditions apply. Please check with your accountant.
Why the OnX6+ leads the field.
Baja Designs engineered the OnX6+ to perform where it matters most, from technical bush tracks to full-speed desert racing. The 10-inch bar delivers 10,817 total raw lumens and the Wide Corner beam pattern spreads that light into the critical zones either side of the vehicle, so you see hazards before they become problems.
The mil-spec aluminium housing is built to absorb the punishment of corrugated roads, rock sections and high-speed runs, while MoistureBlock technology keeps the internals waterproof and dustproof in the harshest Australian conditions. Every LED is driven at 100 percent via CopperDrive, and the 5000K daylight colour temperature reduces driver fatigue on long night stages.
The OnX6+ also features vertical adjustment that locks in place, so you can dial in the exact beam pattern regardless of mount position. uService technology means you can swap out lenses or optics to change your beam pattern or replace a damaged lens without voiding the warranty. That is the kind of long-term investment that serious off-roaders appreciate.
Built-in technologies that set it apart.
MOISTUREBLOCK
Fully waterproof, rain-proof and submersible construction keeps the bar operating reliably through creek crossings, mud and heavy rain.
USERVICE
Replaceable lenses and optics let you customise your beam pattern or swap out a damaged lens in the field, all without voiding the Lifetime Limited Warranty.
COPPERDRIVE
Every LED is driven at 100 percent capacity for consistent, maximum output with no compromise on intensity or longevity.
Installation overview.
CHOOSE YOUR MOUNT POSITION
Select a suitable location on the bull bar, roof rack or A-pillar mount. The included brackets accommodate most common mounting points.
FIT THE BRACKETS
Bolt the supplied mounting brackets to your chosen position using appropriate fasteners for the surface material and load rating.
ADJUST AND LOCK BEAM ANGLE
With the bar loosely mounted, adjust the vertical angle to suit your vehicle height and intended use, then lock the brackets firmly in place.
CONNECT THE WIRING HARNESS
Wire to the vehicle using the OnX6+ compatible harness (part 640115, sold separately). Ensure all connections are secure and routed away from heat and moving parts.
